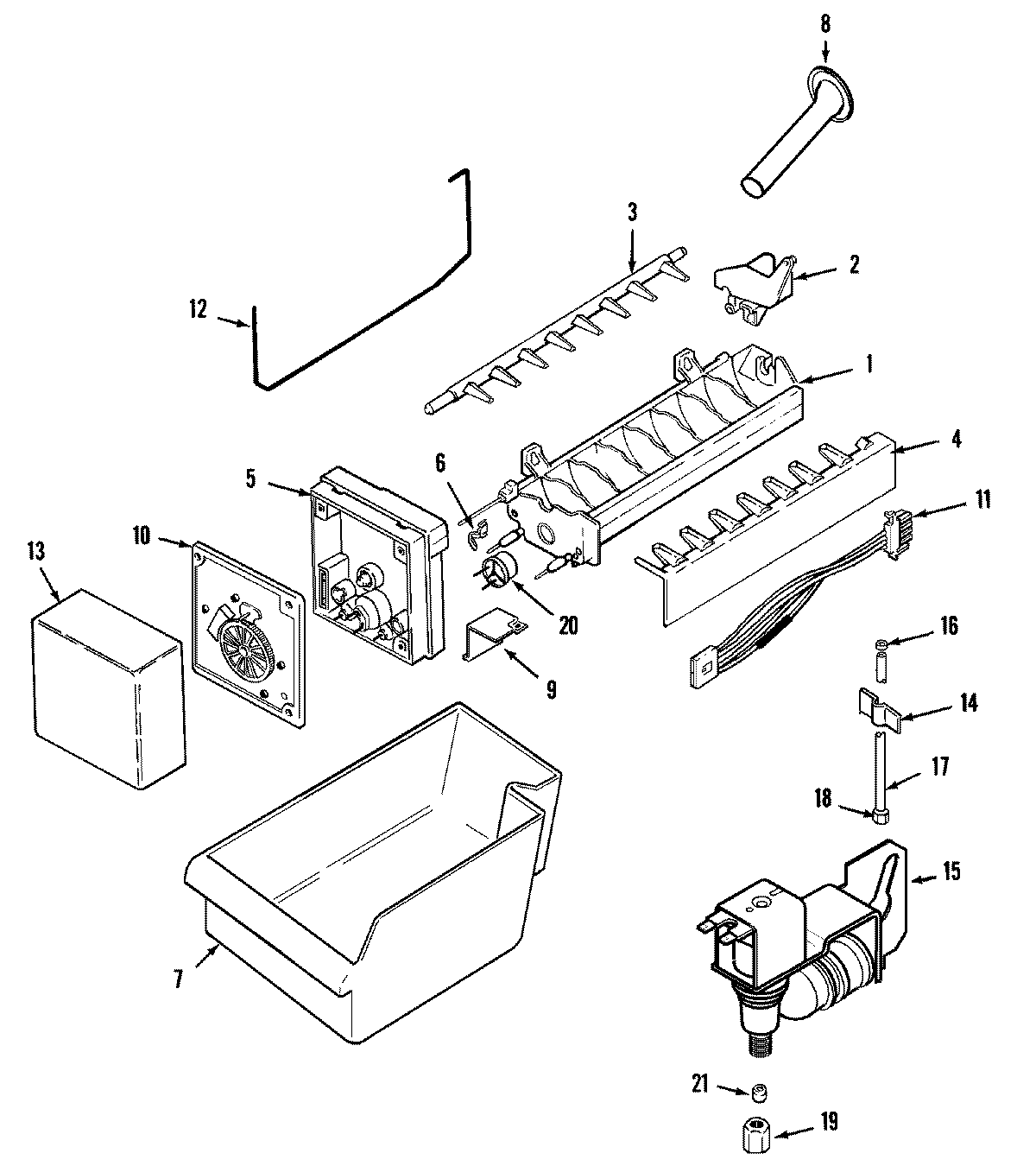

GT1928PEFW 11 – OPTIONAL ICE MAKER KIT-UKI1000AGX

Products

Position	Product
1	MAY Y06100047
1	WP99003172 Whirlpool Silicone L
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP2195914 Whirlpool Refrigerator Ice Maker Housing
5	SCREW
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 61001886
8	MAY 61003571
9	BRACKET, MODULE & HEATER
9	MAY 95108-1
10	MAY 61001014
10	MAY 400021-1
11	MAY 61003573
11	MAY 61003576
12	MAY 68112-1
13	MAY 61003019
13	MAY 61001982
14	SCREW
14	MAY 61001889
14	W10833902 Whirlpool Refrigerator Clamp
15	MAY 61003574
15	MAY 61002819
16	WPM0114003 Whirlpool Microwave Speed Clip Clamp
17	MAY 67579-26
18	WP627018 Whirlpool Refrigerator Nut
19	WP245183 Whirlpool Nut
20	WP627985 Whirlpool Icemaker Cycling Thermostat
20	MAY 95093-1
21	WP487627 Whirlpool Refrigerator Sleeve
