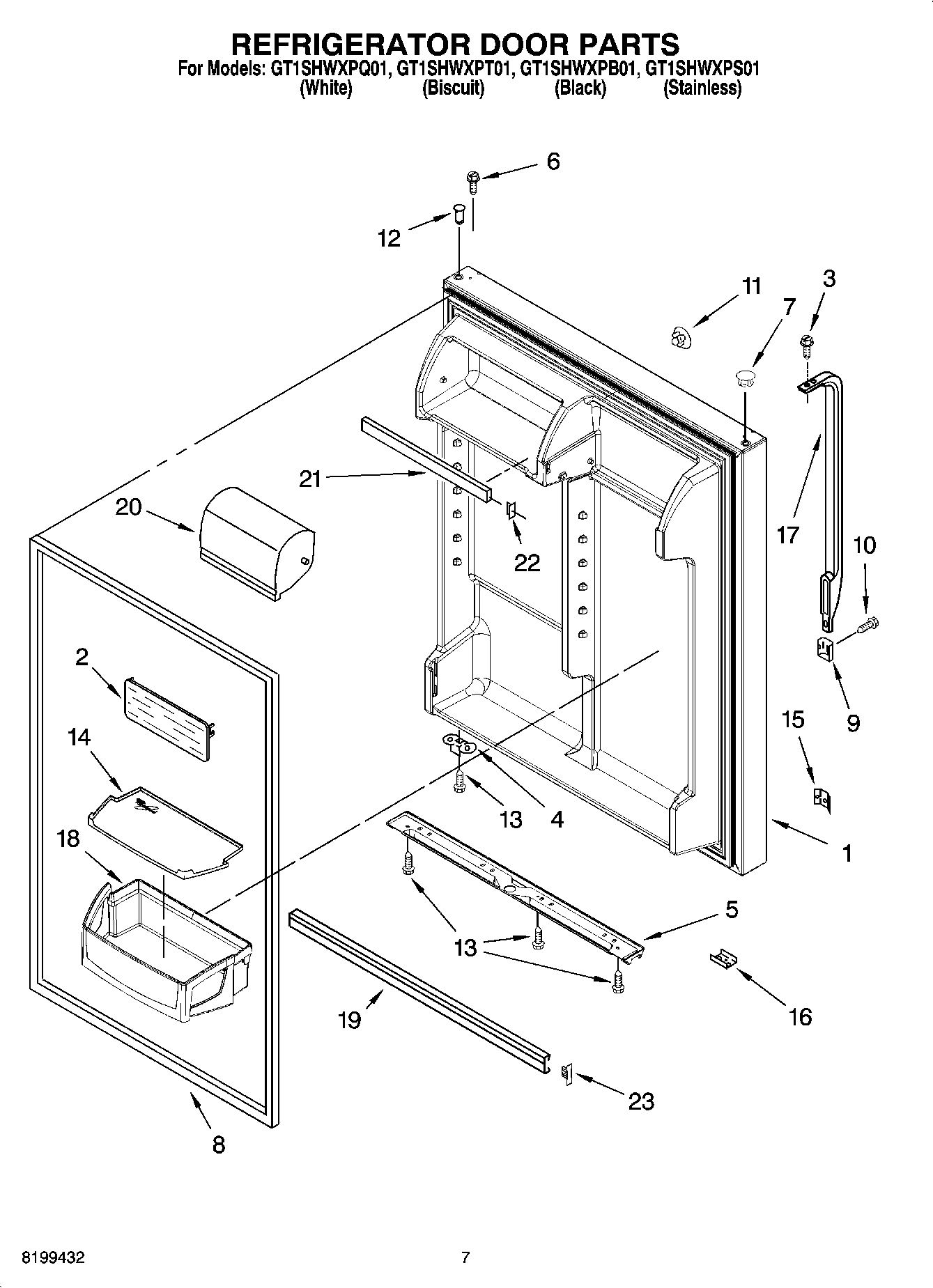

GT1SHWXPT01 04 – REFRIGERATOR DOOR PARTS

GT1SHWXPT01 04 – REFRIGERATOR DOOR PARTS

Written by

in

GT1SHWXPT01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8,12, 15 & 16) (Biscuit)
1Refrigerator Door (Includes Illus. 8,12, 15 & 16) (Stainless)
1Refrigerator Door (Includes Illus. 8,12, 15 & 16) (Black)
1Refrigerator Door (Includes Illus. 8,12, 15 & 16) (White)
2WP2188236 Whirlpool Refrigerator Shelf Door
3WP489357 Whirlpool Recessed Screw
4W11745278 Whirlpool Bracket
5Cap, Door (Black)
5Cap, Door (Biscuit)
5Cap, Door (White)
6WP8281206 Whirlpool Refrigerator Screw
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177311 Whirlpool Refrigerator Magnetic Door Gasket
82159061 Whirlpool Refrigerator Door Gasket
9Cover, Trim (Biscuit)
9Cover, Trim (Black)
9WP2193353W Whirlpool Refrigerator Trim Handle
10WP8281146 Whirlpool Screw
11WP2189009 Whirlpool Refrigerator Handle Plug
11WP2200936 Whirlpool Refrigerator Handle Plug
11WP2189000 Whirlpool Refrigerator Handle Plug
12WP2183003 Whirlpool Thimble
13WP488921 Whirlpool Refrigerator Screw
14Mat, Door Bin
15WP939101 Whirlpool Refrigerator Plate
16Tap Plate
174388949 Whirlpool Refrigerator Handle
174388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
174388950 Whirlpool Refrigerator Handle
18Bin, Door Shelf (3)
19WPW10421486 Whirlpool Refrigerator Door Trim
20WP2218118 Whirlpool Refrigerator Door Compressor
21TRIM-DOOR
22ENDCAP-TRM
23WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
