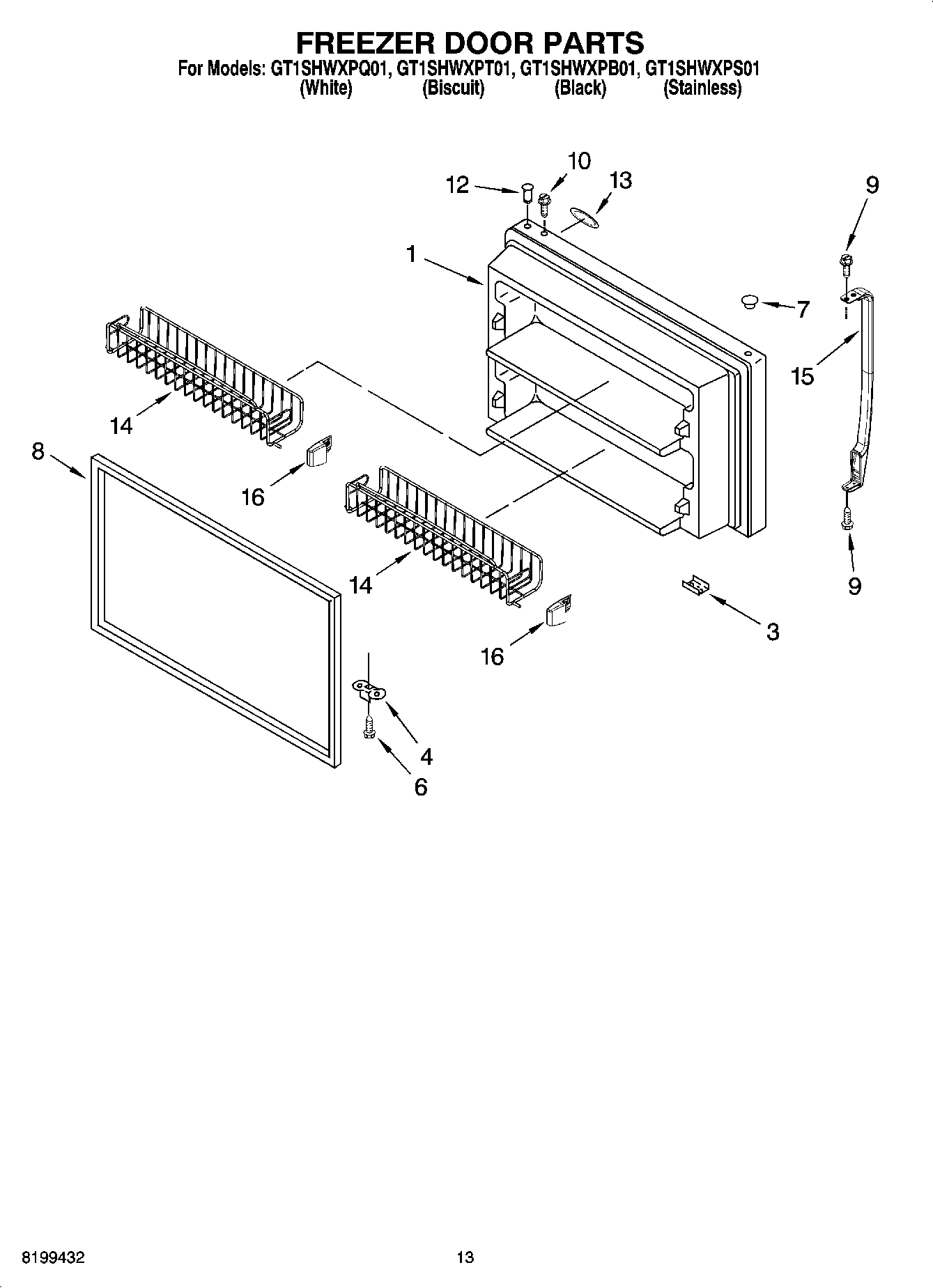

GT1SHWXPT01 07 – FREEZER DOOR PARTS

GT1SHWXPT01 07 – FREEZER DOOR PARTS

Written by

in

GT1SHWXPT01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 3,8 & 12) (Stainless)
1Freezer Door (Includes No.6 & No.8) (Biscuit)
1Freezer Door (Includes No.8) (Black)
1Freezer Door (Includes No.8) (White)
3Tap Plate
4W11745278 Whirlpool Bracket
6WP488921 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212651 Whirlpool Refrigerator Button Plug
8WHITE DOOR GASKET-FIP
82177310 Whirlpool Refrigerator Door Gasket
9WP489357 Whirlpool Recessed Screw
10WP8281206 Whirlpool Refrigerator Screw
12WP2183003 Whirlpool Thimble
13Nameplate
14BASKET, DOOR (2)
154388950 Whirlpool Refrigerator Handle
154388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
154388949 Whirlpool Refrigerator Handle
16ENDCAP, BSKT.(L)
16ENDCAP, BSKT.(R)
