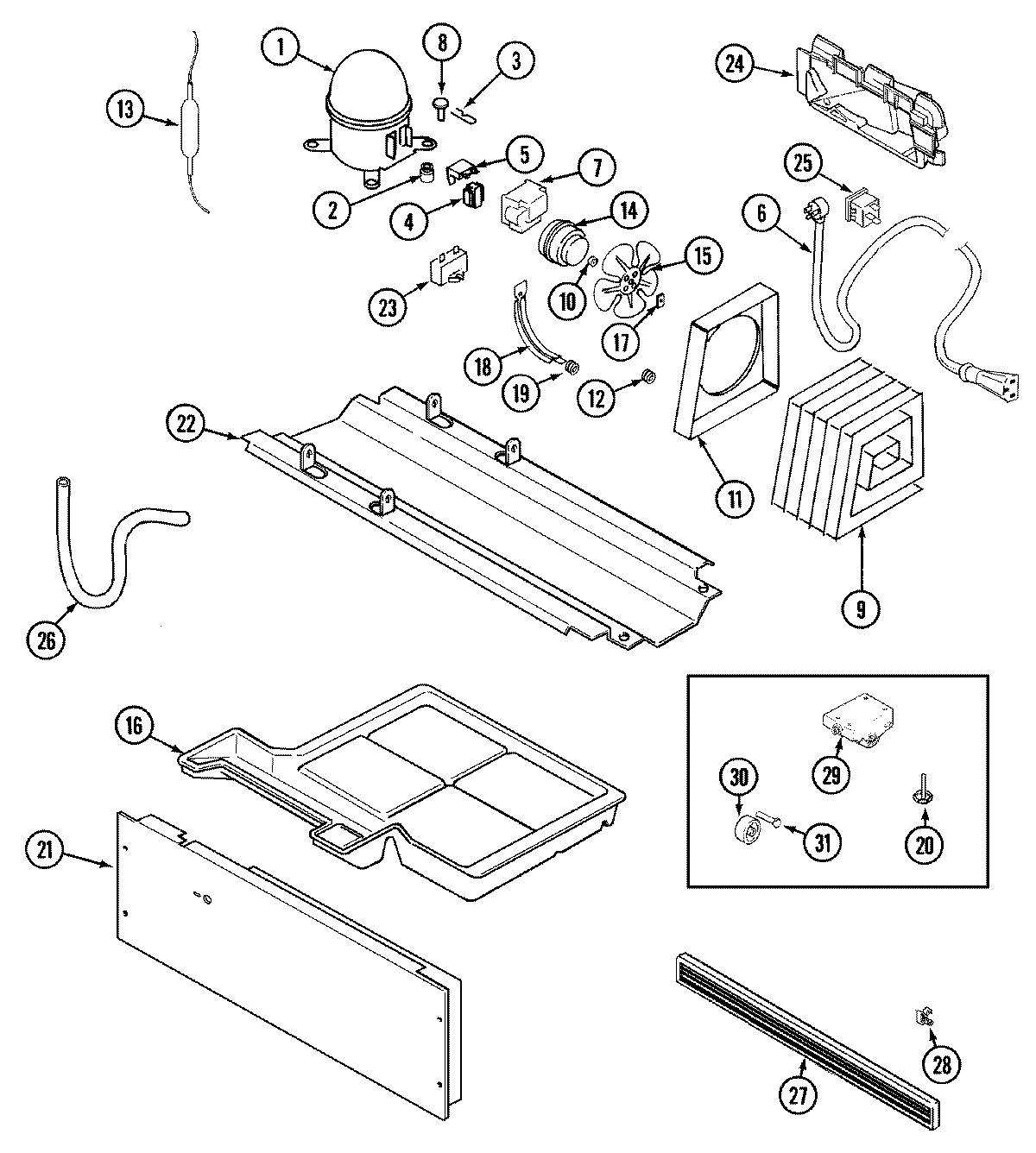

GT2127PEGW 01 – COMPRESSOR (REV 10)

Written by

Products

Position	Product
1	W10309997 Whirlpool Refrigerator Compressor
1	MAY 61004900
2	WP4387558 Whirlpool Refrigerator Compressor Grommet
3	MAY 61005561
4	MAY 61001832
5	MAY 61004883
6	MAY 61004874
7	WP61002138 Whirlpool Refrigerator Terminal Cover
8	MAY 52656-2
9	MAY 61005454
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	MAY 61002084
15	MAY 60683-1
16	MAY 61001955
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 61001414
19	GROMMET, BRACKET
20	MAY 61002105
20	MAY 69810-1
21	MAY 61005126
21	MAY 61005388
21	MAY 65275-1
22	MAY 61005268
22	WP67006715 Whirlpool Refrigerator Screw
23	WP489478 Whirlpool Refrigerator Screw
23	MAY 61004637
24	MAY 61004485
24	MAY 65275-50
24	MAY 61004875
25	MAY 61004876
26	MAY 61002214
27	MAY 61002536
28	MAY 61001975
29	SCREW
29	MAY 61005232
30	WP61003826 Whirlpool Wheel
31	WP61002104 Whirlpool Refrigerator Pin Wheel
32	MAY 12001493
33	MAY 61003623
34	MAY 16008248
34	MAY 16008421
