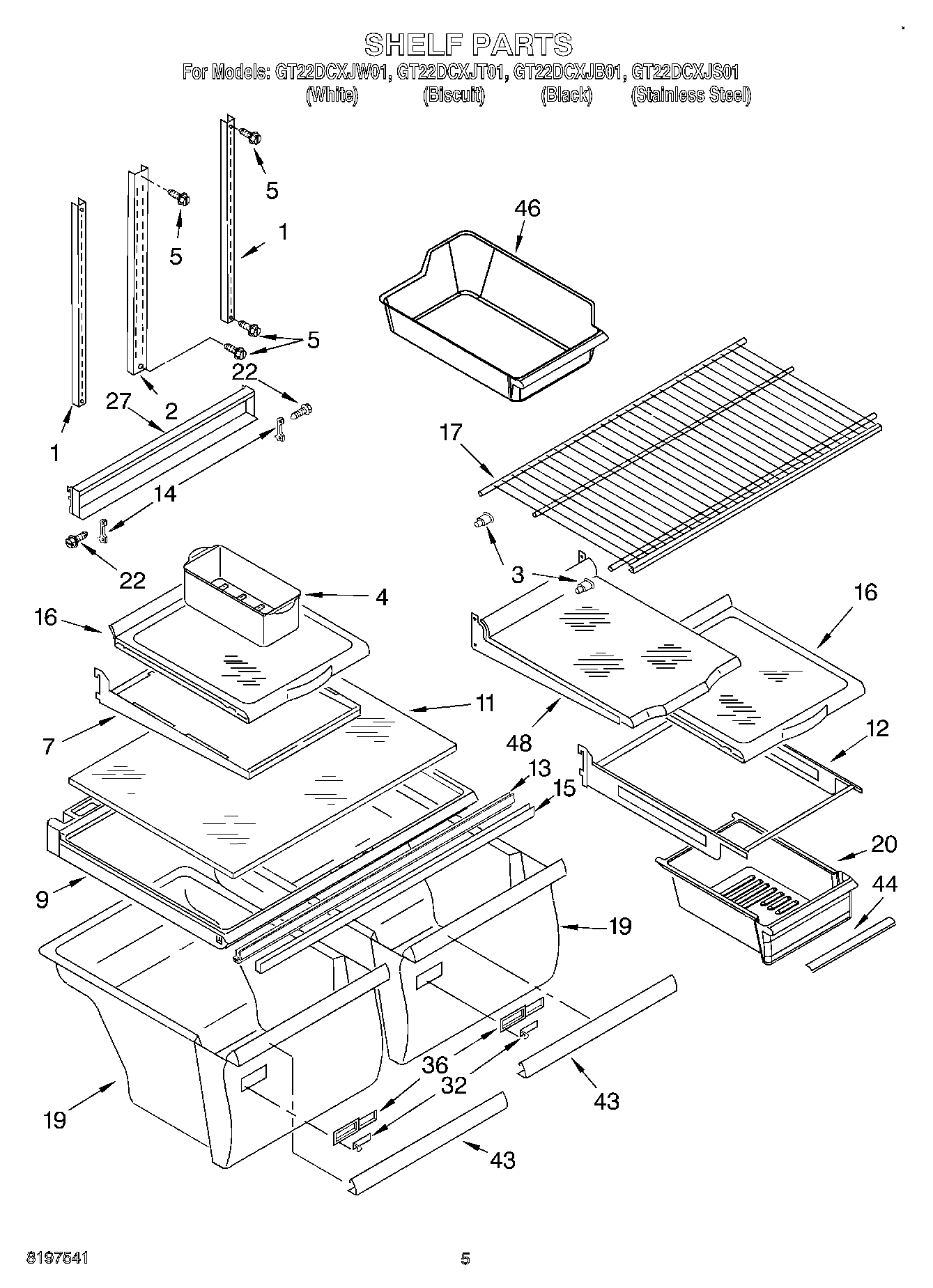

| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder |
| 3 | 2163762 Whirlpool Refrigerator Cup Assembly |
| 4 | W10136387A Whirlpool Refrigerator Egg Container |
| 5 | WP489478 Whirlpool Refrigerator Screw |
| 7 | Frame Assembly, Shelf (2) |
| 9 | WP2314549 Whirlpool Refrigerator Cover |
| 11 | WP2176225 Whirlpool Glass Shelf |
| 12 | Frame Assembly, Meat Shelf |
| 13 | Gasket, Crisper Cover |
| 14 | Hook, Shelf |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | WP999520 Whirlpool Refrigerator Glass Shelf |
| 17 | Shelf, Freezer |
| 19 | W10854037 Whirlpool Refrigerator Crisper Pan |
| 20 | WP2218132K Whirlpool Crisper Meat Pan |
| 22 | Screw |
| 27 | Track Assembly, Shelf |
| 32 | WP2176222 Whirlpool Refrigerator Slide |
| 36 | WP2212446 Whirlpool Refrigerator Control Body |
| 43 | WP2195341 Whirlpool Refrigerator Pan Trim |
| 44 | Trim, Meat Pan |
| 46 | 2254352A Whirlpool Refrigerator Ice Container |
| 48 | Shelf Assembly, Spillguard |
