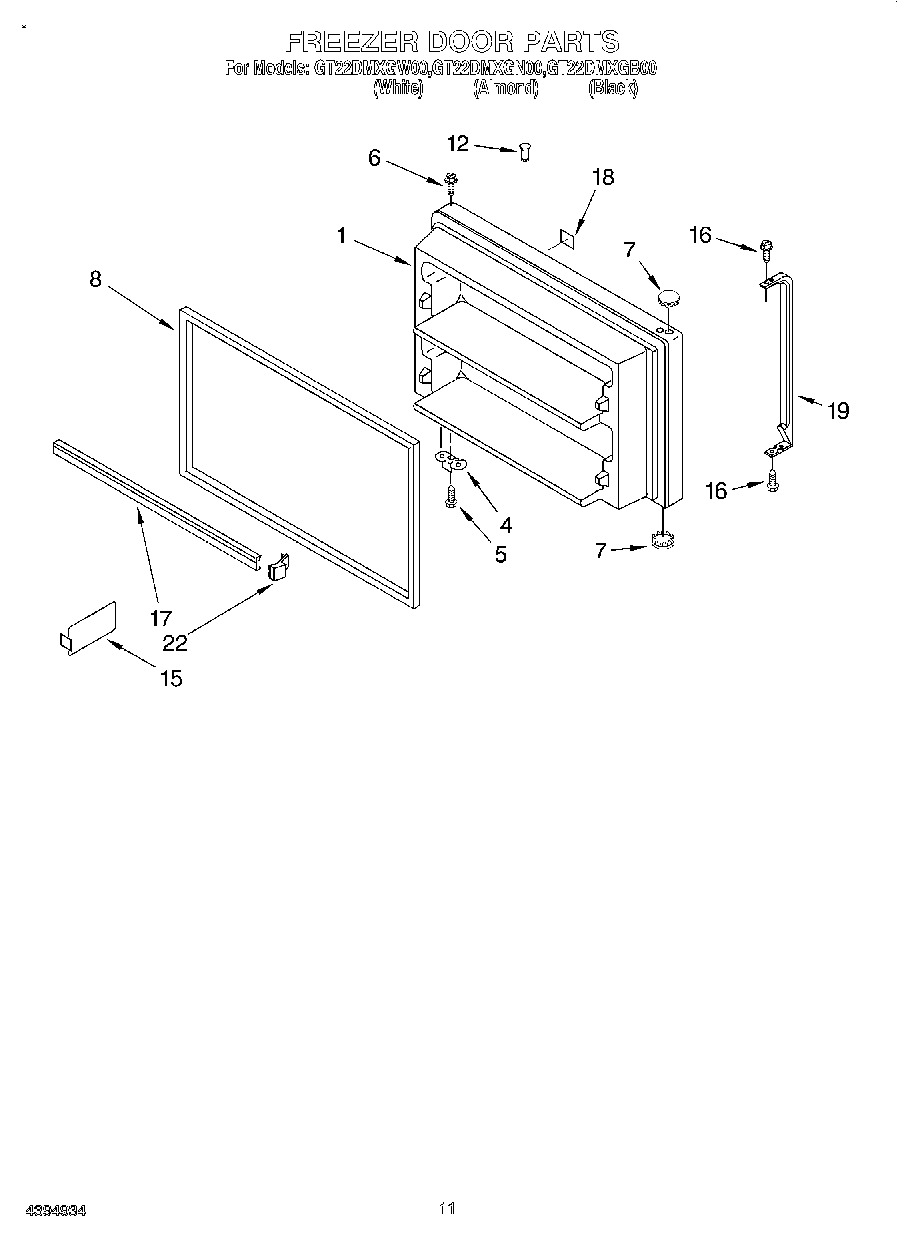

GT22DMXGN00 06 – FREEZER DOOR, LIT/OPTIONAL

GT22DMXGN00 06 – FREEZER DOOR, LIT/OPTIONAL

GT22DMXGN00 06 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2195481
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
Torx Key
WPL LIT2199009
WPL LIT677971
Literature Parts (Energy Label)
1Freezer Door (Includes No.8) (Almond)
1Freezer Door (Includes No.8) (White)
1Freezer Door (Includes No.8) (Black)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82177310 Whirlpool Refrigerator Door Gasket
8WHITE DOOR GASKET-FIP
12WP2183003 Whirlpool Thimble
15Divider-Door
16WP489357 Whirlpool Recessed Screw
17Trim-Door (2)
18Nameplate (Almond)
18Nameplate (Black)
18Nameplate (White)
194388950 Whirlpool Refrigerator Handle
19Handle
194388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
22ENDCAP
100212643 Whirlpool Refrigerator Permagum Sealer
100FeaturePak (Includes 11,13, 20,21,22,23,38, 39) Also See Frz. Dr. & Shelf Pgs.
100Door Reversal Instructions
10072032 Whirlpool Touch Up Paint Black
100285006 Whirlpool Spray
100606755 Whirlpool Refrigerator Bag
100511873 Whirlpool Refrigerator Paint
100350942 Whirlpool Spray Paint
100Almond (Uncut)
100WP72107 Whirlpool Touchup
100799344 Whirlpool Refrigerator Paint
10072017 Whirlpool Appliance Touch-Up Paint White
100350956 Whirlpool Spray Assembly
100833938 Whirlpool Refrigerator Terminal
100876370 Whirlpool Refrigerator Insulation
100WPL 876029
100WPL 799833
100WPL 799832
100CEMENT, ALUMILASTIC (1 1/4 OZ.)
100TAPE, VINYL (3/4 X 108“)
100WP542638 Whirlpool Refrigerator Grease
100WP505587 Whirlpool Refrigerator Sealer
100WP503695 Whirlpool Refrigerator Sealer
100350930 Whirlpool White Spray Paint
