GT22DMXJB00 04 – REFRIGERATOR DOOR

GT22DMXJB00 04 – REFRIGERATOR DOOR

Written by

in

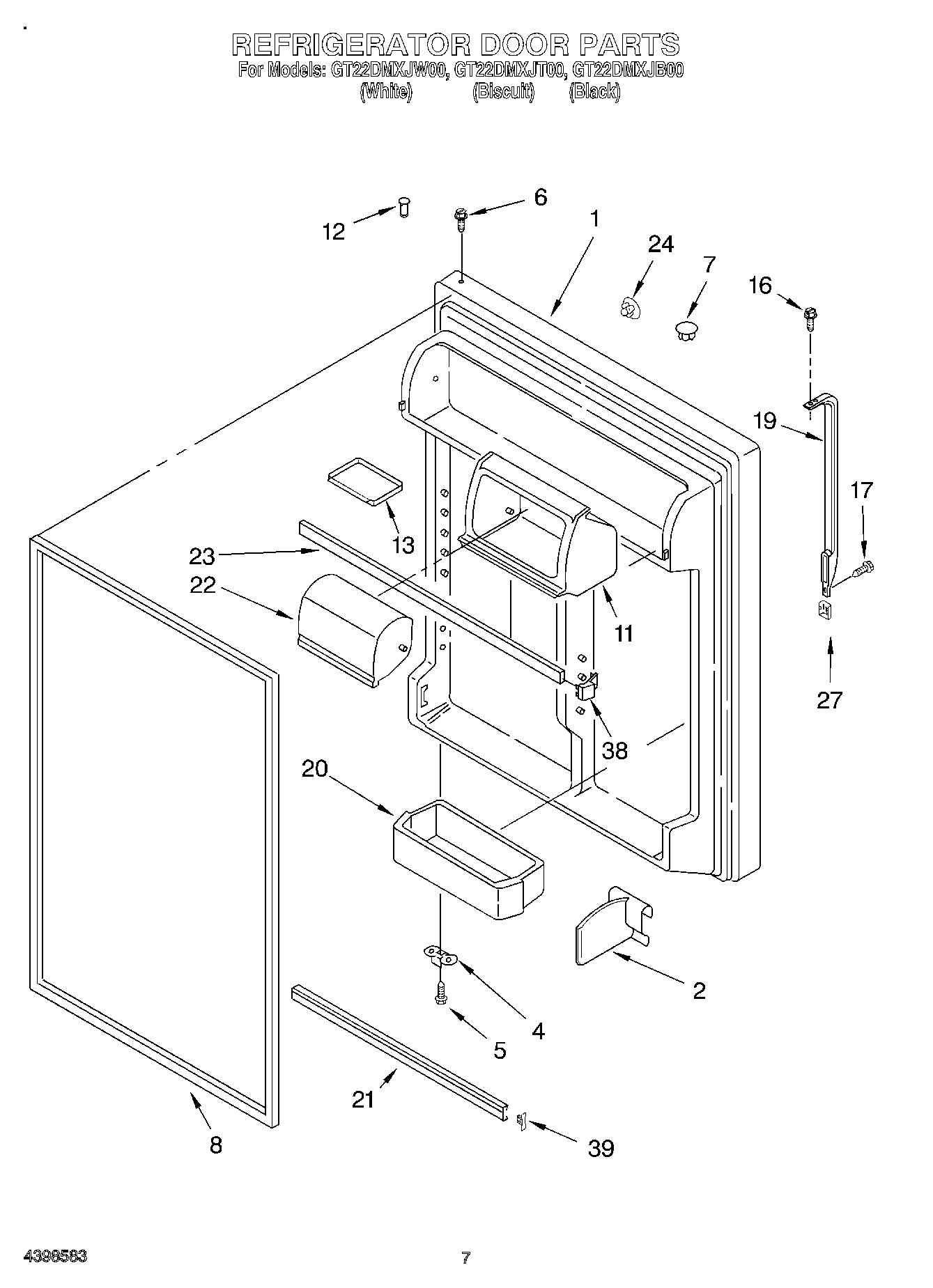

GT22DMXJB00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.8 & No.12) (Biscuit)
1Refrigerator Door (Includes No.8 & No.12) (Black)
1Refrigerator Door (Includes No.8 & No.12) (White)
2Divider-Door
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212651 Whirlpool Refrigerator Button Plug
82159061 Whirlpool Refrigerator Door Gasket
82177311 Whirlpool Refrigerator Magnetic Door Gasket
11Housing Compartment
12WP2183003 Whirlpool Thimble
13Tray, Door
16WP489357 Whirlpool Recessed Screw
17WP8281146 Whirlpool Screw
194388949 Whirlpool Refrigerator Handle
194388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
194388950 Whirlpool Refrigerator Handle
20BIN-CNTLVR
21WPW10421486 Whirlpool Refrigerator Door Trim
22DOOR-COMP
23Trim, Door Shelf
24WP2189000 Whirlpool Refrigerator Handle Plug
24WP2200936 Whirlpool Refrigerator Handle Plug
24WP2189009 Whirlpool Refrigerator Handle Plug
27Cover, Trim (Biscuit)
27Cover, Trim (Black)
27WP2193353W Whirlpool Refrigerator Trim Handle
38Endcap, Door Trim
39WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
