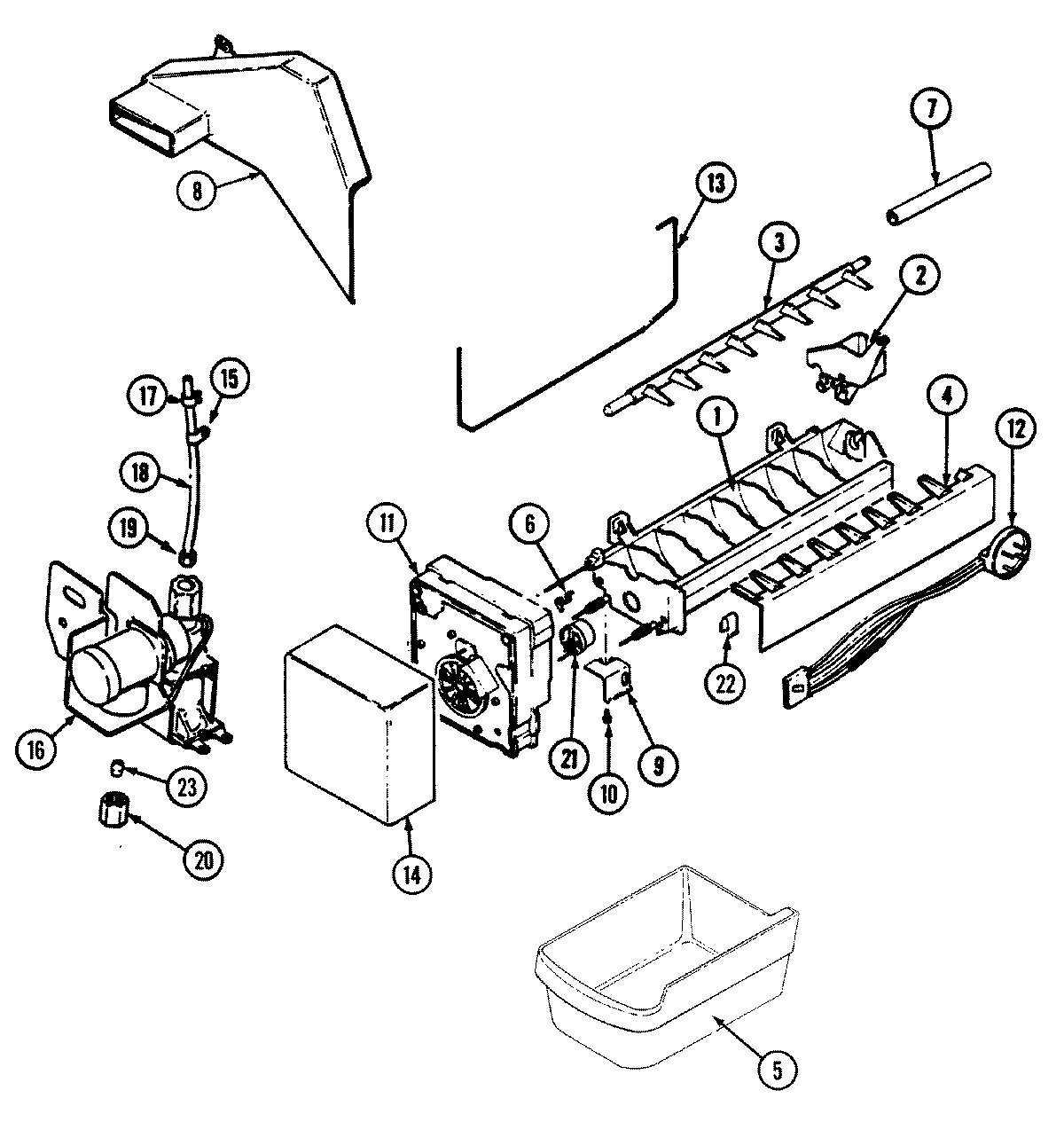

GT23A93V 06 – OPTIONAL ICE MAKER KIT (ICE)

GT23A93V 06 – OPTIONAL ICE MAKER KIT (ICE)

Products

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1WP99003172 Whirlpool Silicone L
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP67001255 Whirlpool Ice Bucket
6WP2315522 Whirlpool Refrigerator Clip
7MAY 67666-8
8MAY 400026-36
8MAY 70198-1
9BRACKET, MODULE & HEATER
10MAY 95108-1
11WP2195914 Whirlpool Refrigerator Ice Maker Housing
11SCREW
11MAY Y06100048
11MAY 400021-1
12MAY 70076-2
13MAY 68112-1
14MAY 68328-2
15W10833902 Whirlpool Refrigerator Clamp
15MAY 65275-50
16MAY 401018-1
16MAY 61001020
17WPM0114003 Whirlpool Microwave Speed Clip Clamp
18MAY 67579-7
19WP627018 Whirlpool Refrigerator Nut
20WP245183 Whirlpool Nut
21WP627985 Whirlpool Icemaker Cycling Thermostat
21MAY 95093-1
22MAY 68118-1
23WP487627 Whirlpool Refrigerator Sleeve
