GT23A93V 08 – UNIT COMPARTMENT & SYSTEM
Written by
in

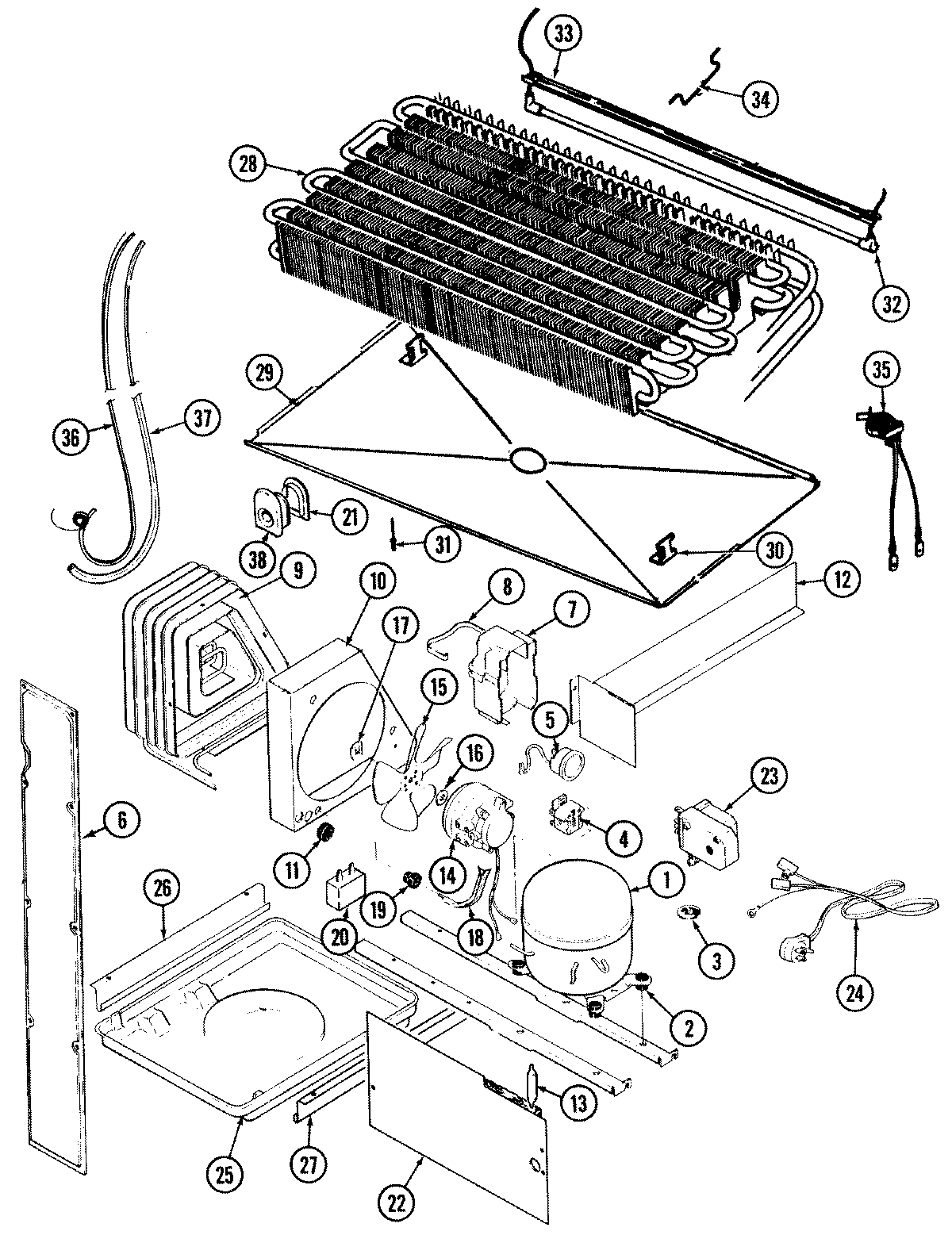

GT23A93V 08 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
1
MAY RA1029
2
MAY 17245-4
3
MAY 52778-2
3
MAY 414011-1
4
MAY 68857-4
5
MAY 69105-1
6
MAY 60110-2
7
MAY 69754-1
8
MAY 59596-1
9
MAY 60408-2
9
MAY 60434-3
10
MAY 66228-1
11
MAY 53351-1
12
MAY 66493-1
13
MAY 13900
14
MAY 68445-8
14
MAY 408015-1
15
WP12587601 Whirlpool Refrigerator Condenser Blade
16
MAY 19913-4
17
MAY 19914-1
18
MAY 69181-1
19
MAY 56933-1
20
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
21
MAY 60069-1
22
WP488729 Whirlpool Refrigerator Door Screw
22
MAY 66338-4
23
MAY 66128-5
23
MAY 405007-1
24
MAY 52890-2
26
MAY 60555-1
27
MAY 60555-2
28
MAY 69822-8
29
MAY 69118-3
30
MAY 60108-2
31
MAY 26397-9
32
MAY 60106-45
33
MAY 60109-6
34
MAY 68935-1
35
MAY 52085-33
36
MAY 65013-22
37
MAY 65398-1
37
MAY 66223-1
38
MAY 60068-1
39
WP489478 Whirlpool Refrigerator Screw
39
MAY 60177-4
39
MAY 69968-4
40
MAY 108568-2
←
