GT2427PEGW 01 – COMPRESSOR (REV 10)
Written by
in

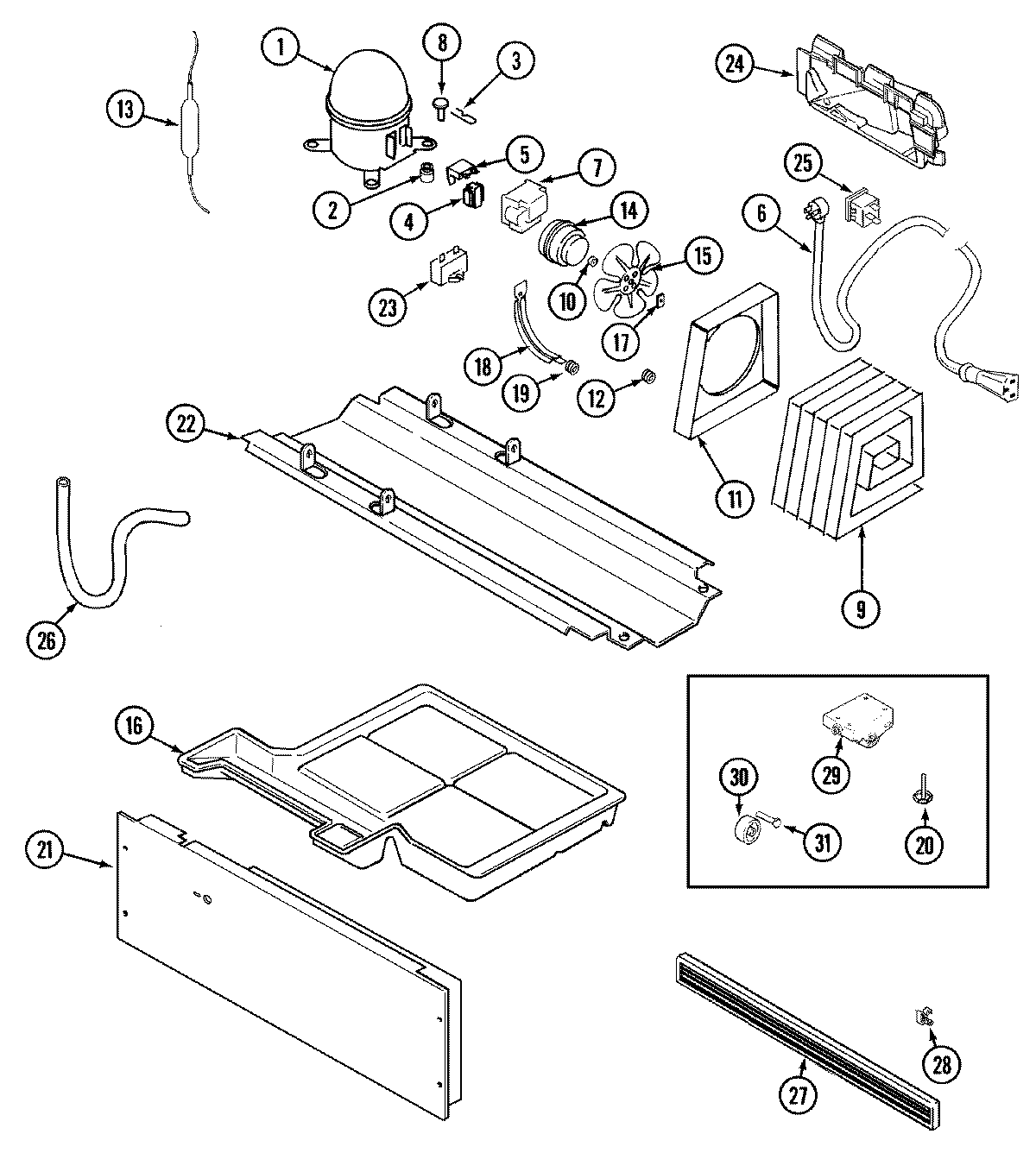

GT2427PEGW 01 – COMPRESSOR (REV 10)
Products
Position
Product
1
W10309997 Whirlpool Refrigerator Compressor
1
MAY 61004900
2
WP4387558 Whirlpool Refrigerator Compressor Grommet
3
MAY 61005561
4
MAY 61001832
5
MAY 61004883
6
MAY 61004874
7
WP61002138 Whirlpool Refrigerator Terminal Cover
8
MAY 52656-2
9
MAY 61005454
10
MAY 61001686
11
MAY 61001941
12
MAY 61002033
13
WPW10143759 Whirlpool Dryer Filter
14
MAY 65275-33
14
MAY 61002084
15
MAY 60683-1
16
MAY 61002649
17
WP486692 Whirlpool Refrigerator Nut
18
MAY 61001414
19
GROMMET, BRACKET
20
MAY 69810-1
20
MAY 61002105
21
MAY 61005388
21
MAY 65275-1
21
MAY 61005126
22
WP67006715 Whirlpool Refrigerator Screw
22
MAY 61005268
23
MAY 61004637
23
WP489478 Whirlpool Refrigerator Screw
24
MAY 65275-50
24
MAY 61004485
24
MAY 61004875
25
MAY 61004876
26
MAY 61002214
27
MAY 61002536
28
MAY 61001975
29
MAY 61005232
29
SCREW
30
WP61003826 Whirlpool Wheel
31
WP61002104 Whirlpool Refrigerator Pin Wheel
32
MAY 12001493
33
MAY 61003623
34
MAY 16008421
34
MAY 16008248
←
