GT2427PEGW 02 – COMPRESSOR (REV 11)
Written by
in

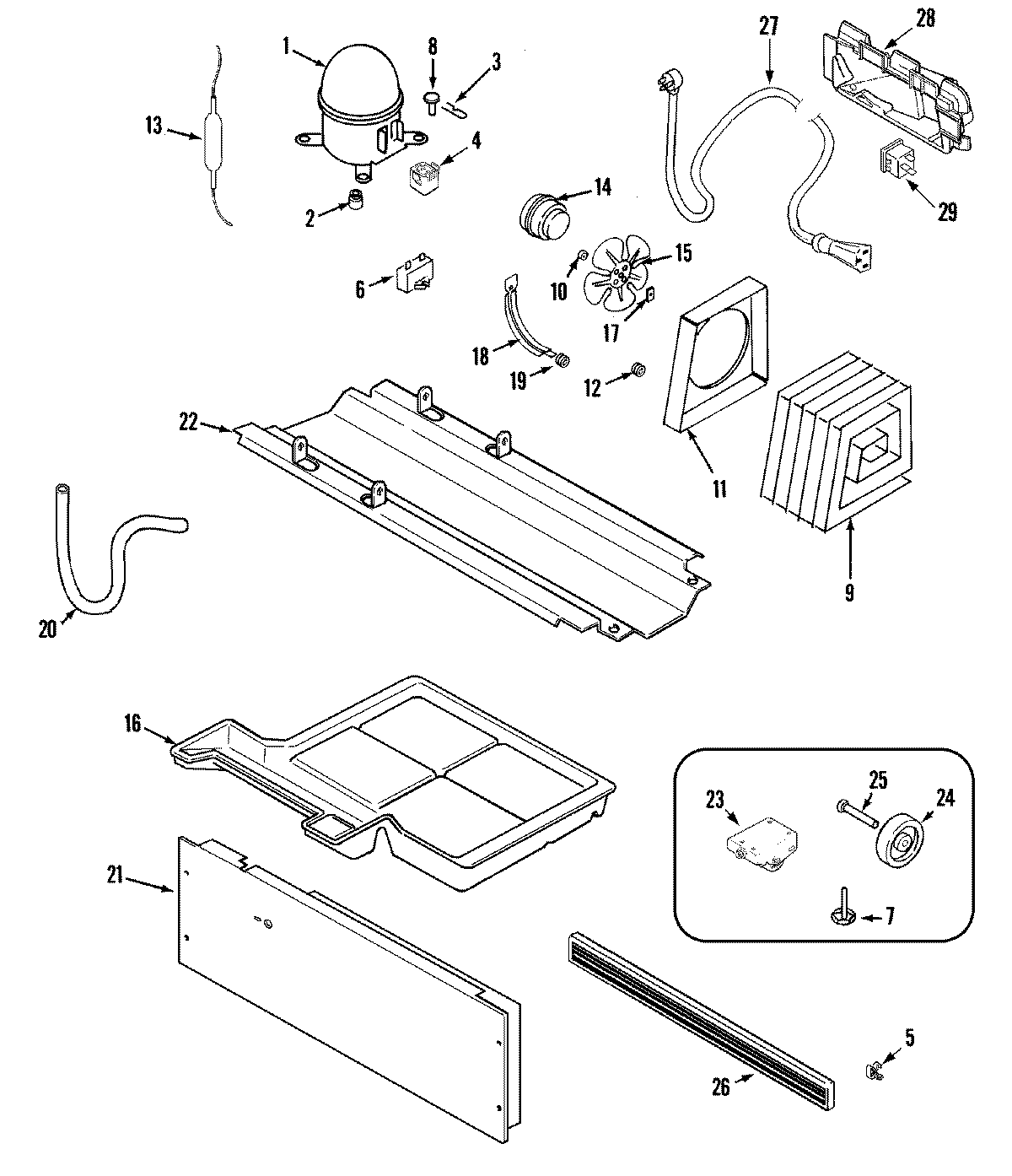

GT2427PEGW 02 – COMPRESSOR (REV 11)
Products
Position
Product
1
MAY 61005615
1
MAY 12002108
2
WP4387558 Whirlpool Refrigerator Compressor Grommet
3
MAY 61005561
4
MAY 61005620
4
MAY 61006139
5
MAY 61001975
6
MAY 61004637
7
MAY 61002105
7
MAY 69810-1
8
MAY 52656-2
9
MAY 61005454
10
MAY 61001686
11
MAY 61001941
12
MAY 61002033
13
WPW10143759 Whirlpool Dryer Filter
14
MAY 65275-33
14
MAY 61002084
15
MAY 60683-1
16
MAY 61002649
16
WP489478 Whirlpool Refrigerator Screw
17
WP486692 Whirlpool Refrigerator Nut
18
MAY 61001414
19
GROMMET, BRACKET
20
MAY 61002214
21
MAY 61005126
21
MAY 61005388
21
MAY 65275-1
22
WP67006715 Whirlpool Refrigerator Screw
22
MAY 61005268
23
SCREW
23
MAY 61005232
24
WP61003826 Whirlpool Wheel
25
WP61002104 Whirlpool Refrigerator Pin Wheel
26
MAY 61002536
27
MAY 61004874
28
MAY 65275-50
28
MAY 61004485
28
MAY 61004875
29
MAY 61004876
30
MAY 12001493
31
MAY 61003623
32
MAY 16008248
32
MAY 16008421
←
