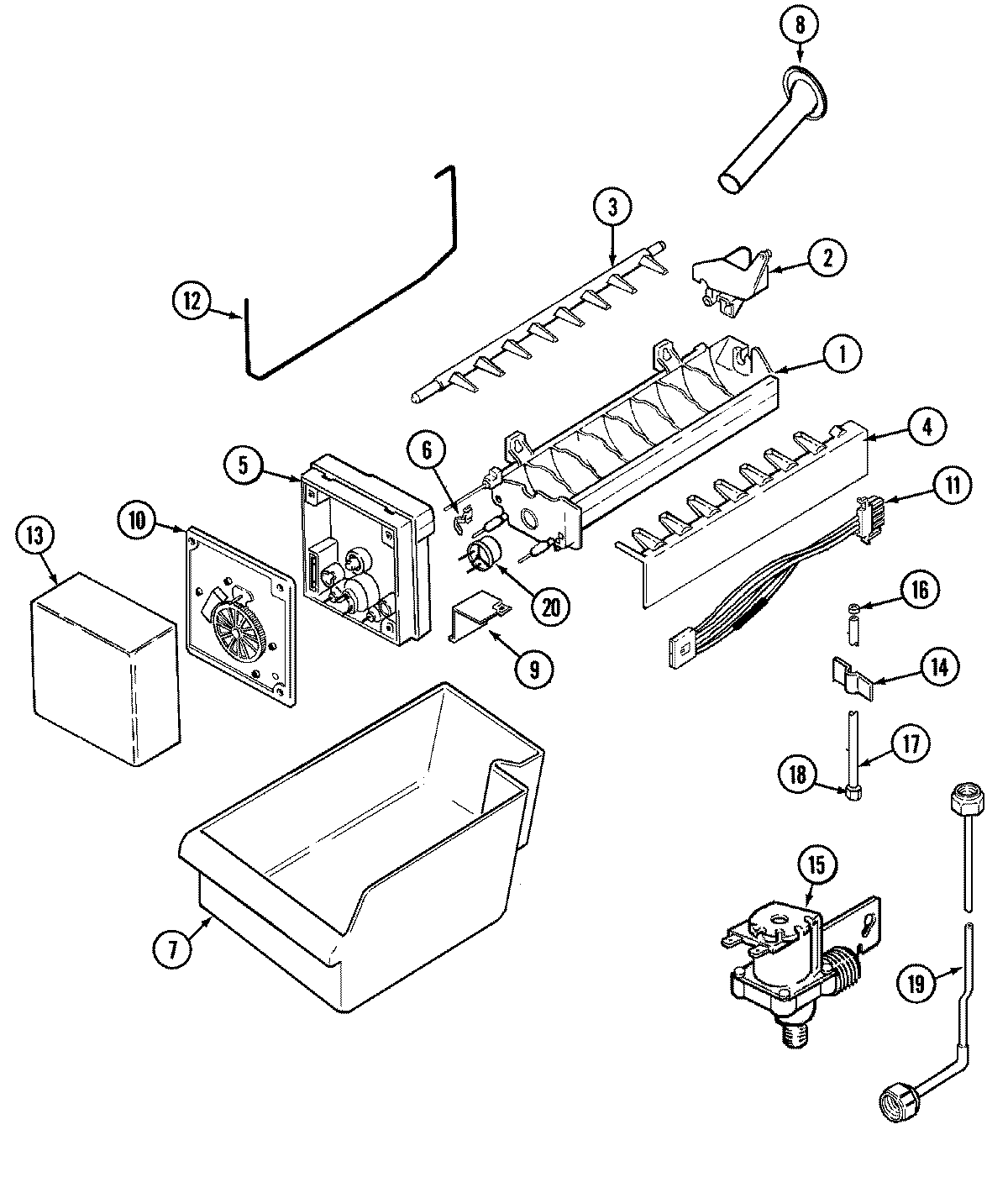

GT2488PKCW 08 – OPTIONAL ICE MAKER KIT- UKI1000AKX

Products

Position	Product
1	WP99003172 Whirlpool Silicone L
1	MAY Y06100047
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP2195914 Whirlpool Refrigerator Ice Maker Housing
5	SCREW
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 61001886
8	MAY 61001888
9	BRACKET, MODULE & HEATER
9	MAY 95108-1
10	MAY 400021-1
10	MAY Y06100049
11	MAY 61003573
12	MAY 68112-1
13	MAY 61001239
14	SCREW
14	W10833902 Whirlpool Refrigerator Clamp
14	MAY 61001889
15	MAY 61003020
15	MAY 61002819
16	WPM0114003 Whirlpool Microwave Speed Clip Clamp
17	MAY 61003021
18	WP627018 Whirlpool Refrigerator Nut
19	MAY 61001858
20	WP627985 Whirlpool Icemaker Cycling Thermostat
20	MAY 95093-1
