GT2SHMXMS01 04 – REFRIGERATOR DOOR PARTS

GT2SHMXMS01 04 – REFRIGERATOR DOOR PARTS

Written by

in

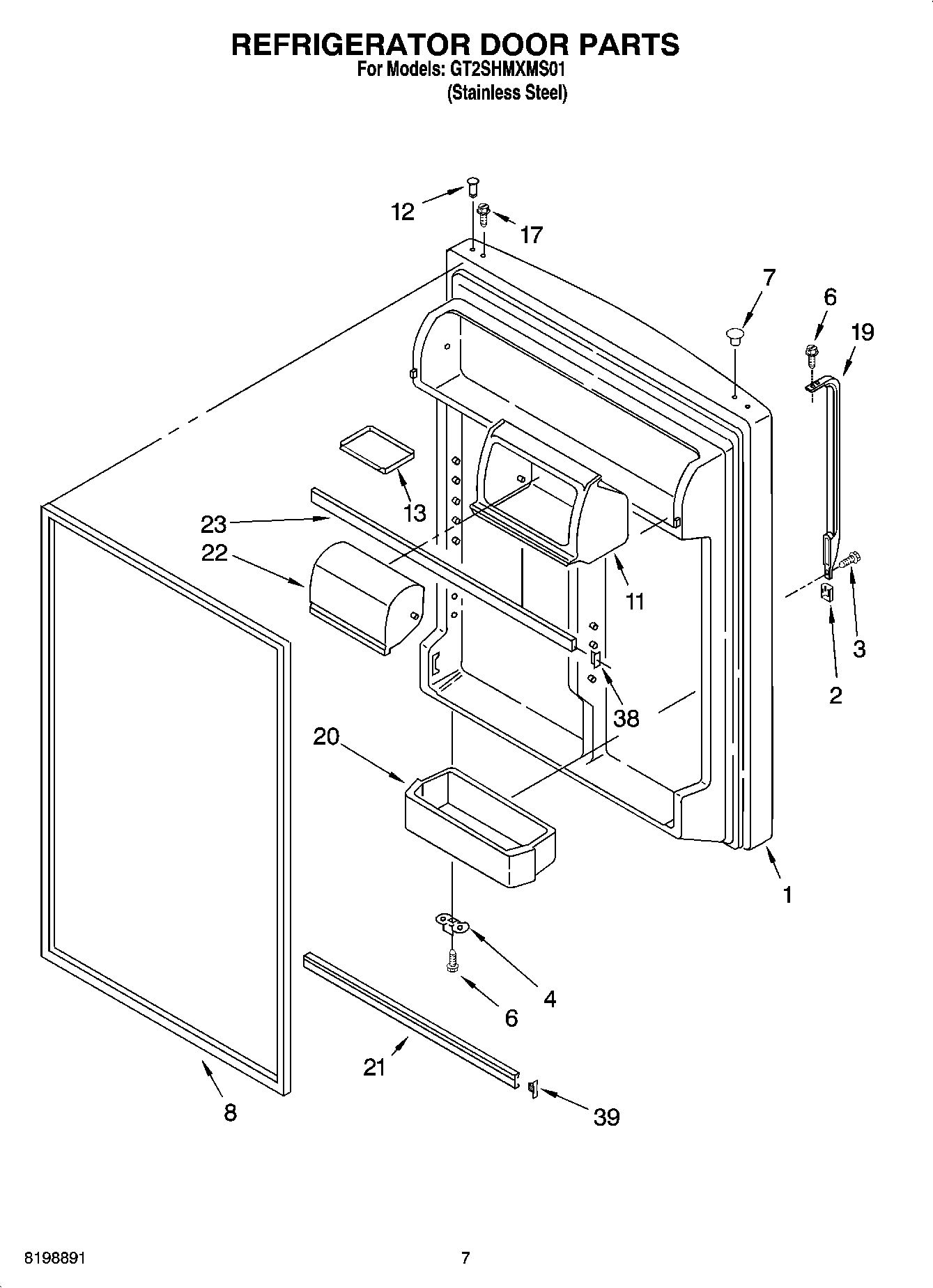

GT2SHMXMS01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 8 & 12) (Stainless Steel)
2Cover, Trim (Black)
3WP8281146 Whirlpool Screw
4W11745278 Whirlpool Bracket
6WP489357 Whirlpool Recessed Screw
7WP2212651 Whirlpool Refrigerator Button Plug
82177311 Whirlpool Refrigerator Magnetic Door Gasket
11Housing Compartment
12WP2183003 Whirlpool Thimble
13Tray, Door
17WP8281206 Whirlpool Refrigerator Screw
194388950 Whirlpool Refrigerator Handle
20BIN-CNTLVR
21WPW10421486 Whirlpool Refrigerator Door Trim
22DOOR-COMP
23Trim, Door Shelf
38Endcap, Door Trim
39WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
