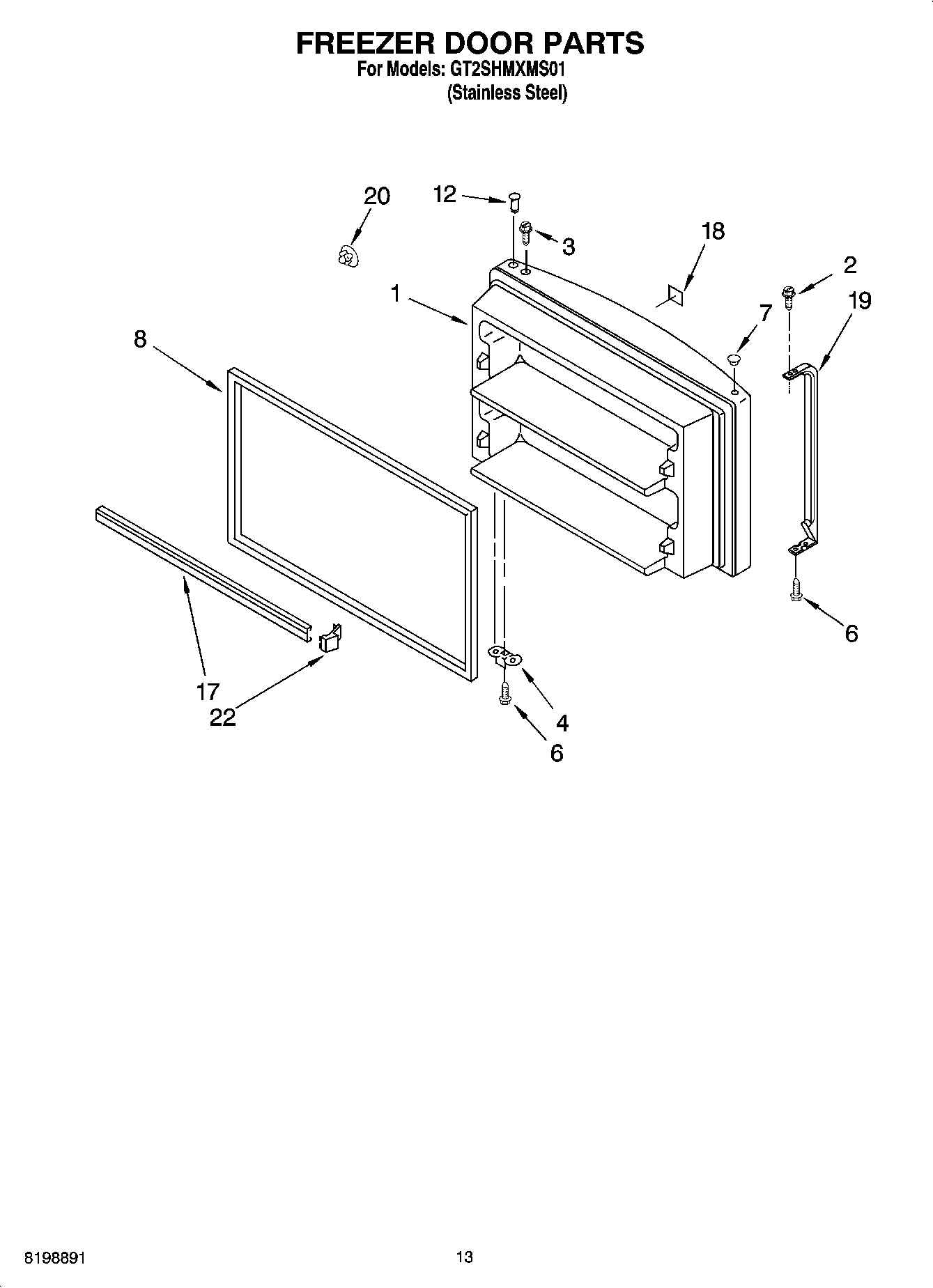

GT2SHMXMS01 07 – FREEZER DOOR PARTS

Products

Position	Product
	WPL ARI73067A7
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	WPL 799833
	WPL 876029
	WPL ARI73068A4
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI73065A6
	WPL ARI73066A5
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350930 Whirlpool White Spray Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	4392901 Whirlpool Biscuit Spray Paint
	876370 Whirlpool Refrigerator Insulation
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
1	Freezer Door (Includes Illus. 3,8 & 12) (Stainless)
2	WP489357 Whirlpool Recessed Screw
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
6	WP488921 Whirlpool Refrigerator Screw
7	WP2212651 Whirlpool Refrigerator Button Plug
8	2177310 Whirlpool Refrigerator Door Gasket
12	WP2183003 Whirlpool Thimble
17	Trim, Door Shelf (2)
18	Nameplate
19	4388950 Whirlpool Refrigerator Handle
20	WP2189009 Whirlpool Refrigerator Handle Plug
22	ENDCAP
