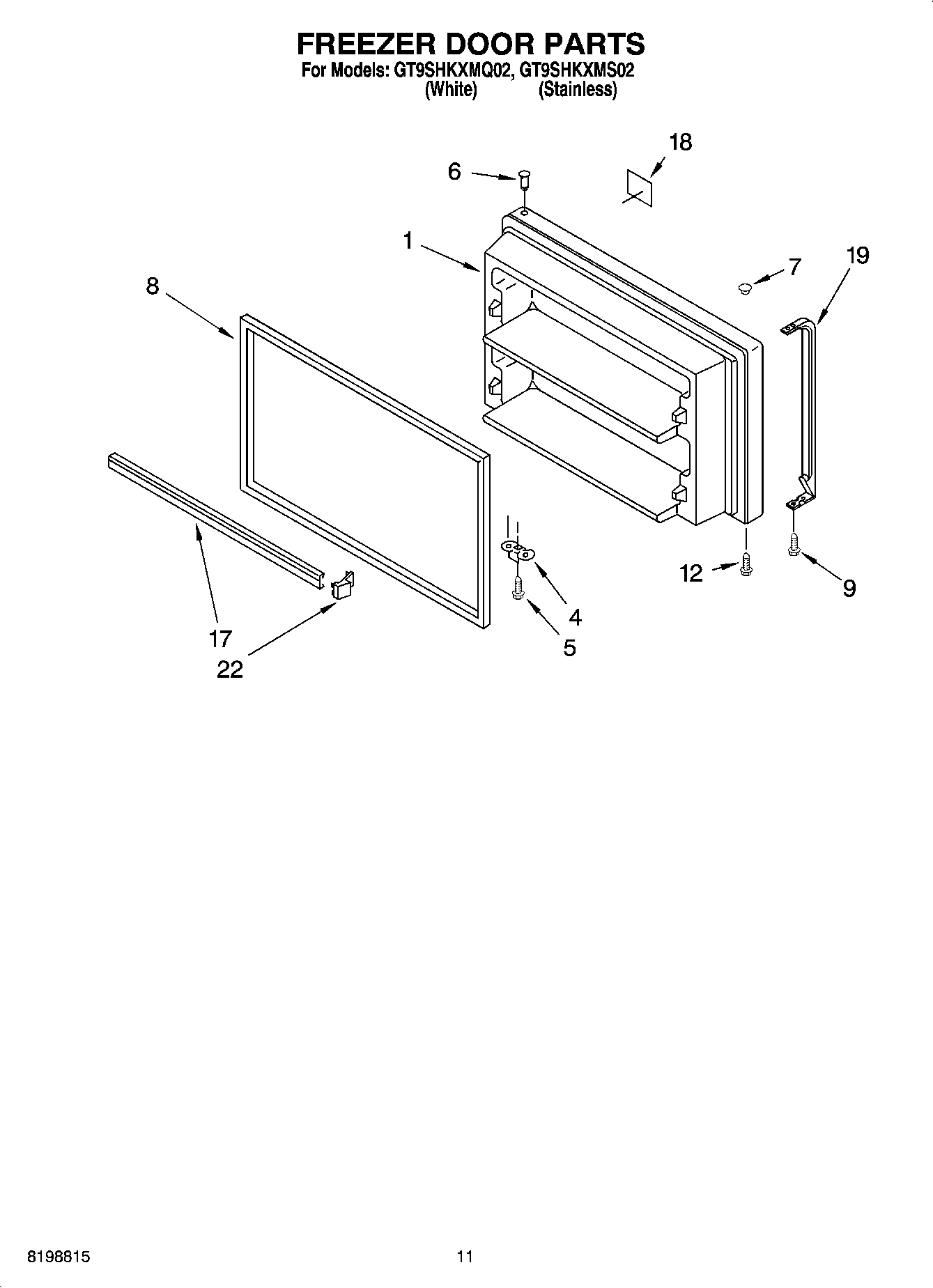

GT9SHKXMS02 06 – FREEZER DOOR PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WPL 799832
	WPL 799833
	WPL 876029
	W11729596 Whirlpool Ice Maker Field Install Kit
	WPL ARI73320A1
	WPL ARI73319A1
	WPL ARI73318A7
	WPL ARI73317A9
	WPL ARI73315A6
	WPL ARI73316A8
	72032 Whirlpool Touch Up Paint Black
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	Torx Key
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	285006 Whirlpool Spray
1	Freezer Door (Includes Illus. 2,6 & 8)
1	Freezer Door (Includes 6 & 8) (Stainless)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
8	2177304 Whirlpool Refrigerator FIP Gasket
9	WP489357 Whirlpool Recessed Screw
12	WP8281206 Whirlpool Refrigerator Screw
17	Trim-Door (2)
18	Nameplate
19	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
19	4388950 Whirlpool Refrigerator Handle
22	ENDCAP
