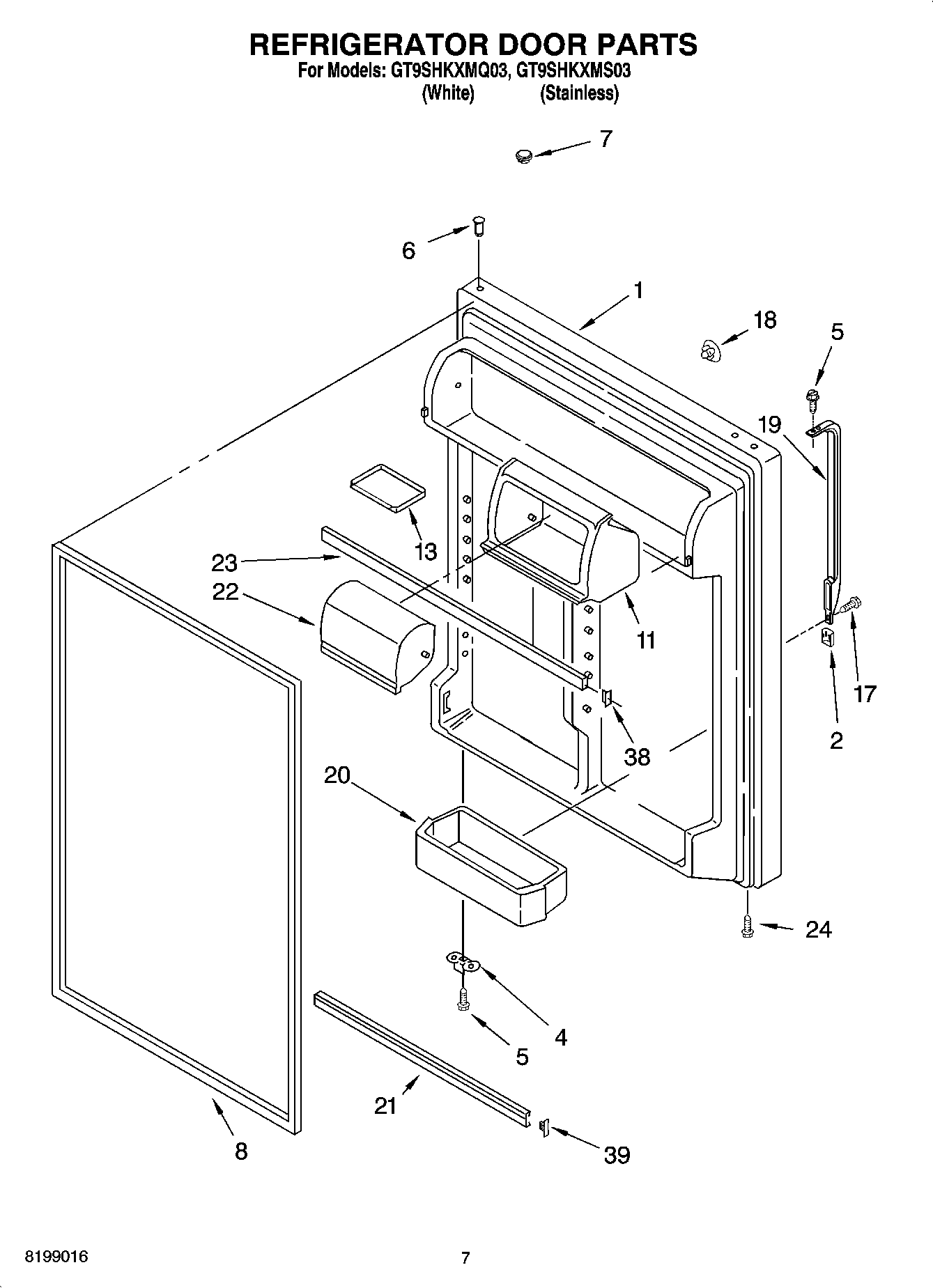

GT9SHKXMS03 04 – REFRIGERATOR DOOR PARTS

GT9SHKXMS03 04 – REFRIGERATOR DOOR PARTS

Written by

in

GT9SHKXMS03 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 6 & 8) (Stainless)
1Refrigerator Door (Includes Illus. 2,3,6 & 8)
2WP2193353W Whirlpool Refrigerator Trim Handle
2Cover, Trim (Black)
4W11745278 Whirlpool Bracket
5WP489357 Whirlpool Recessed Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212651 Whirlpool Refrigerator Button Plug
82177305 Whirlpool Refrigerator Door FIP Gasket
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
11Housing Compartment
13Tray, Door
17WP8281146 Whirlpool Screw
18WP2189009 Whirlpool Refrigerator Handle Plug
18WP2189000 Whirlpool Refrigerator Handle Plug
194388950 Whirlpool Refrigerator Handle
194388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
20Bin, Door (3)
21WPW10421484 Whirlpool Refrigerator Door Trim
22DOOR-COMP
23WP2159312 Whirlpool Refrigerator Door Trim
24WP8281206 Whirlpool Refrigerator Screw
38Endcap, Door Trim
39WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
