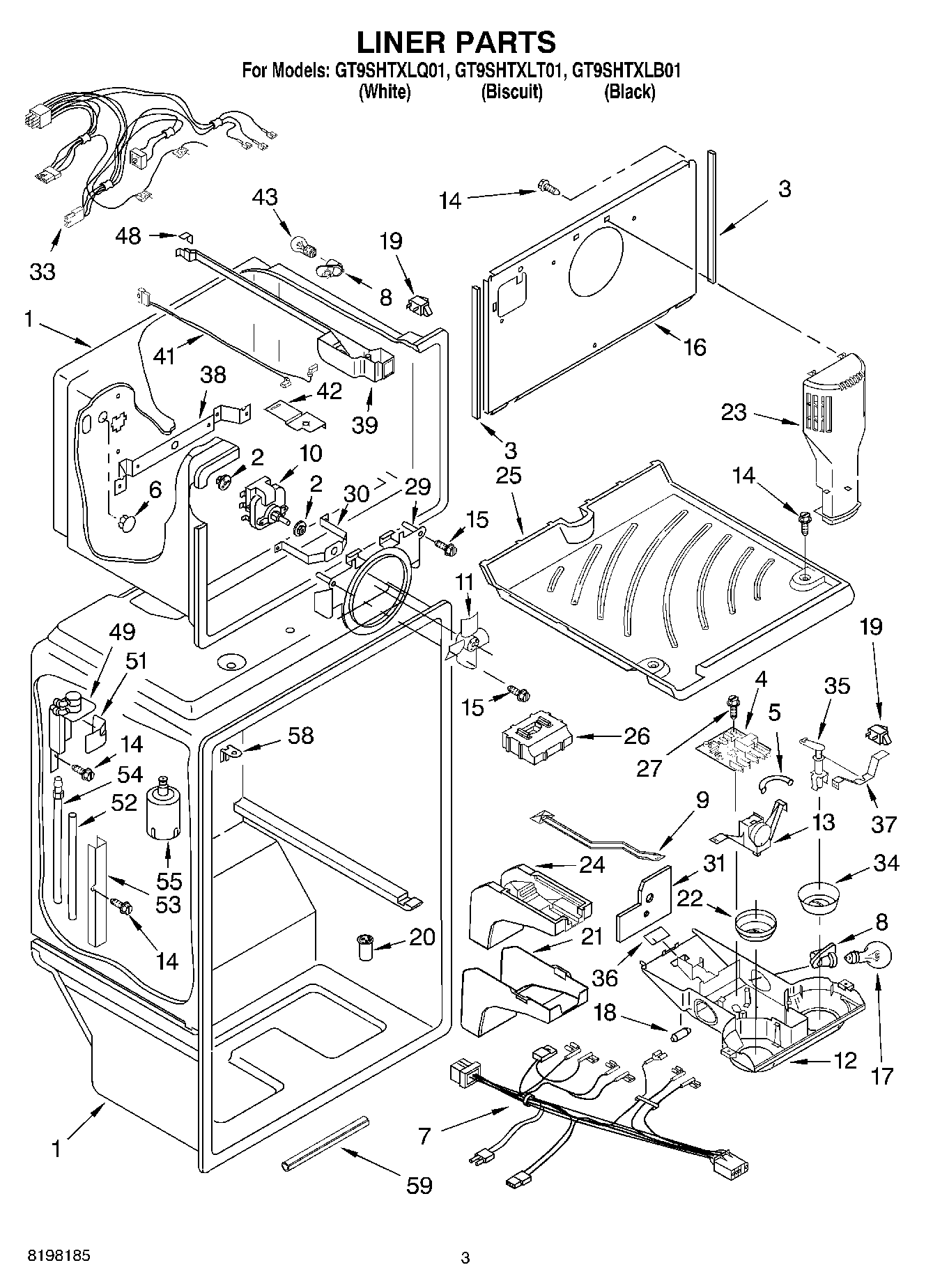

GT9SHTXLQ01 02 – LINER
Written by
in
GT9SHTXLQ01 02 – LINER
Products
Position
Product
1
Liner (Not A Serviceable Part)
2
WP2264462 Whirlpool Refrigerator Grommet
3
WP2254360 Whirlpool Refrigerator Gasket
4
WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5
Thermostat Tube Barrier
6
WP941839 Whirlpool Refrigerator Button Plug
7
Wire Assembly, Control Box
8
4387478 Whirlpool Refrigerator Light Socket
9
Damper, Air
10
WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11
WP2163777 Whirlpool Refrigerator Fan Blade
12
Control Box
13
Thermostat Assy. (Includes Illus. 5 & 18)
14
WP489478 Whirlpool Refrigerator Screw
15
WP693995 Whirlpool Screw
16
Cover-Evaporator
17
RANGE ONLY 40W 120V APPL BULB
18
Weight, Thermal
19
W11384469 Whirlpool Door Switch
20
WP2210509 Whirlpool Refrigerator Tub Valve
21
Cover, Air Diffuser
22
W10829461 Whirlpool Refrigerator Thermal Knob
23
Air Tower
24
WP2189452 Whirlpool Refrigerator Diffuser
25
Freezer Floor
26
Air Diffuser, Top
27
WP98129 Whirlpool Screw
29
Bracket, Fan Motor
30
Bracket, Evap. Fan, Front
31
Shield, heat
33
Wire Assembly, Freezer Compartment
34
Knob, Damper
35
Post, Damper
36
WP2205079 Whirlpool Refrigerator Seal
37
Bracket, Damper Knob
38
Bracket, Evap. Fan, Rear
39
Housing Base
41
Wiring Harness, Freezer Light
42
Electrical Shield, Freezer Light
43
4396822 Whirlpool Refrigerator Light Bulb
48
Gasket, Rear
49
Bracket Assembly, Water Filter
51
Cover, Filter
52
Tube, Filter Inlet
53
Cover, Tubing
54
W10823511 Whirlpool Refrigerator Water Tube
55
Water Filter
58
Clip, Retainer
59
Insulation, Water Tube
←
