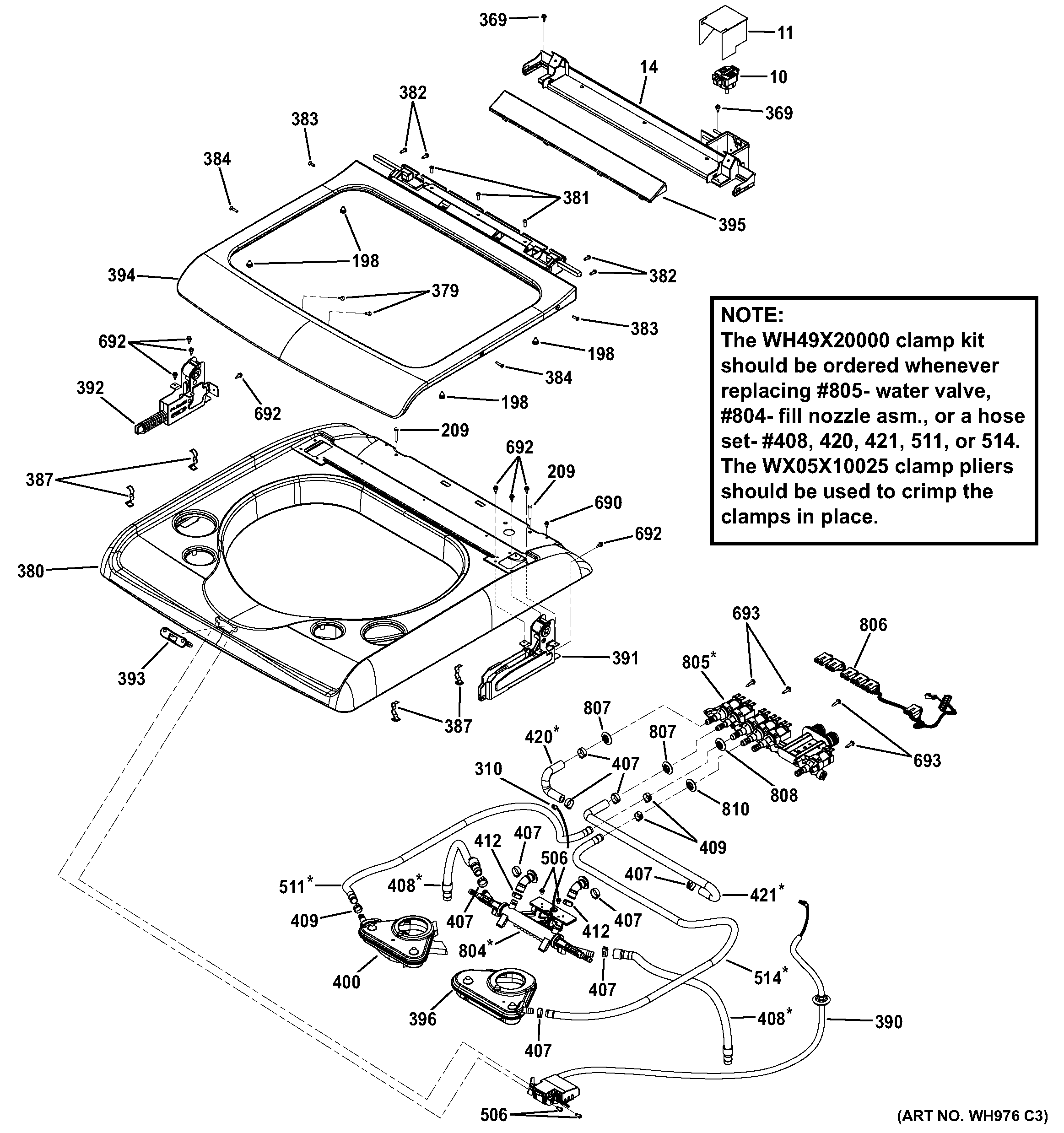

GTAS8655D0MC TOP PANEL & LID

GTAS8655D0MC TOP PANEL & LID

Written by

in

GTAS8655D0MC TOP PANEL & LID

Products

PositionProduct
10GEN WH12X10556
11GEN WH01X10697
14BACKSPLASH BOTTOM
198GEN WH01X10678
209WR01X10196 GE Refrigerator Screw 8-18 HID02
310GEN WH12X10568
369WH2X1217 GE Screw Assembly
379GEN WH02X10377
380GEN WH44X10319
381WH02X10372 GE Screw 8-16 Plated Pnt 15 .500 S
382GEN WH02X10371
383GEN WH02X10378
384GEN WH02X10373
387GEN WH02X10368
390WH12X20359 GE Lid Lock Switch Assembly
391WH01X20169 GE Damper
392GEN WH01X10665
393GEN WH01X10695
394GEN WH44X10320
395GEN WH42X10958
396GEN WH01X10682
400GEN WH47X10022
407WH01X10687 GE Hose Clamp
408GEN WH41X10328
409WH01X10688 GE Hose Clamp
412GEN WH01X10692
420GEN WH41X10331
421GEN WH41X10332
506WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
511GEN WH41X10321
514WH41X10325 GE Hose Dispensing Assembly
692WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
804GEN WH47X10029
805WH13X10059 GE Water Valve Solenoid
806WH19X10113 GE Water Valve Harness
807GEN WH02X10365
808GEN WH02X10356
810GEN WH02X10357
