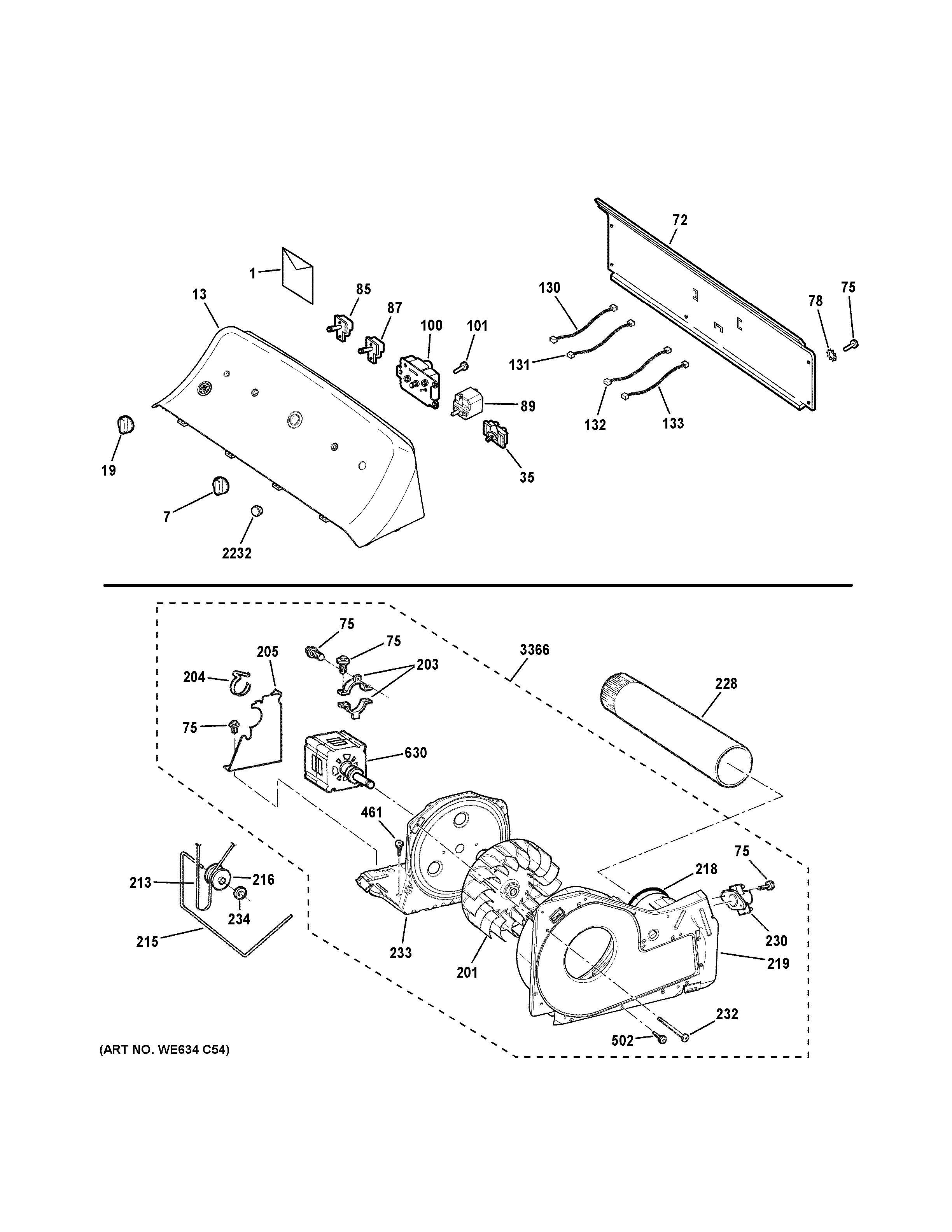

GTD42EASJ3WW BACKSPLASH, BLOWER & MOTOR ASSEMBLYadmin2025-04-26T08:50:35+00:00GTD42EASJ3WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY ProductsPositionProduct1PUB NUMBER MINI MANUAL1PM USE AND CARE1PM INSTALLATION INSTRUCTION USA ELEC Y G7WE01X24552 GE Washer Dryer Main Timer Knob Assembly13BACKSPLASH ASM19KNOB OPTIONS ASM35PUSH TO START SWITCH72WE20X24556 GE Back Panel75WE01X25535 GE Screw78WE01X26154 GE Washer85WE04X24717 GE Switch Rotary87WE04X24553 GE Washer Rotary Switch89WE02X24718 GE Buzzer Variable100WE04X24550 GE Washer Dryer Timer101WE01X24720 GE Screw 30 x 20 IA PP130WE15X25203 GE Jumper Harness Black131WE15X25210 GE Harness132WE15X25209 GE Harness133WE04X25202 GE Jumper Harness, Orange201WH16X34317 GE Blower Wheel203WE13X200 GE Motor Strap204WE1X921 GE Motor Strap205WE13M39 GE Motor Support213WE03X29897 BELT DRIVE215WE03X20434 GE Washer Idler Arm216PULLEY218WE09X27636 GE Exhaust Blower Gasket219WE03X24536 GE Blower Assembly Housing228WE01X23892 GE Exhaust Duct230THERMOSTAT232WE2M202 GE Screw233WE03X23858 GE Motor Plate234GEN WE2M96?461WZ5X158D GE Screw Package of 12502WE2M174 GE Screw #10630KIT MOTOR DRIVE AND PULLEY 272232BUTTON START ASM3366WE17X24535 GE Motor and Blower Assembly
