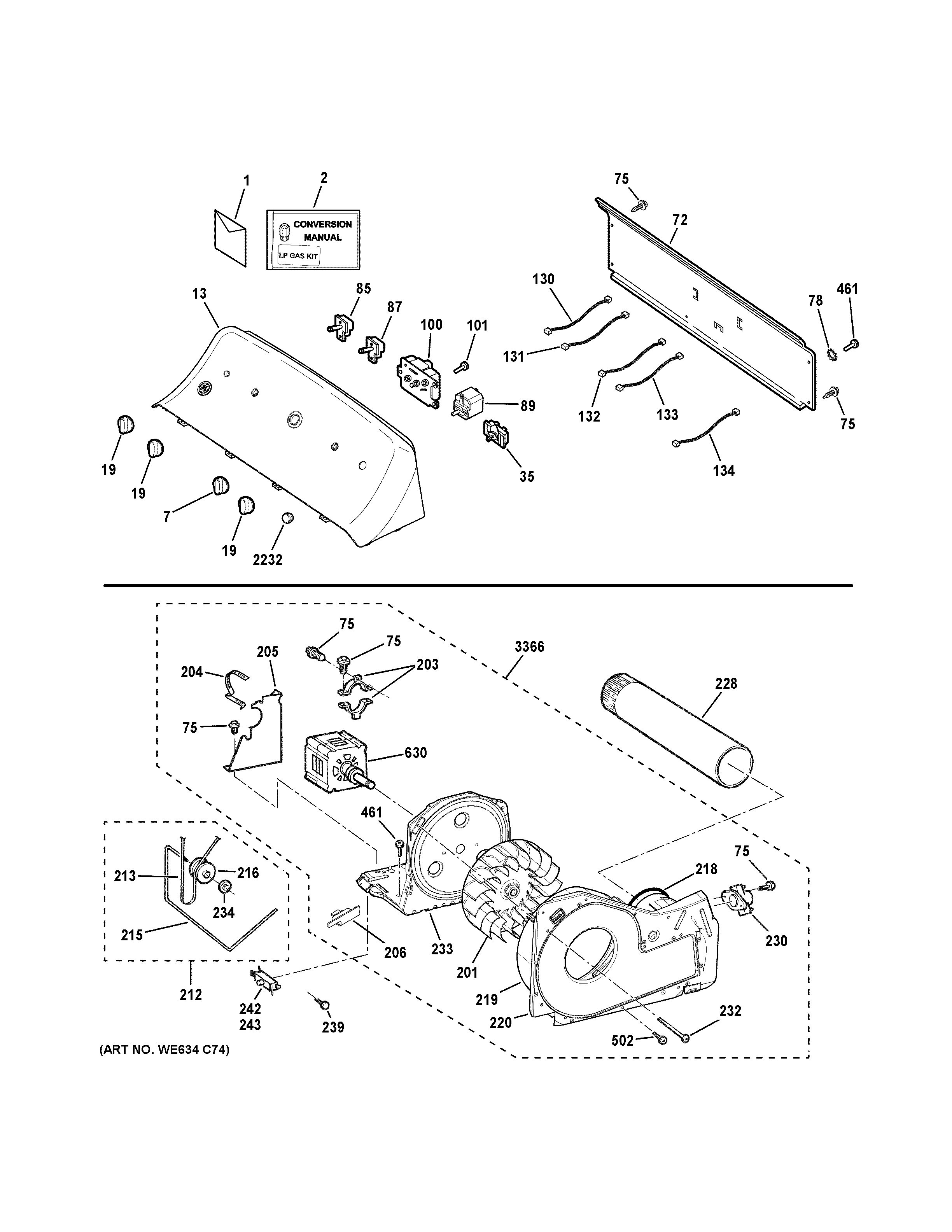

GTD42GASJ3WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

GTD42GASJ3WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

GTD42GASJ3WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1PM INSTALLATION INSTRUCTION USA ELEC Y G
1PM USE AND CARE
1PUB NUMBER MINI MANUAL
2WE49X32950 GE Gas to LP Conversion Kit
7WE01X24552 GE Washer Dryer Main Timer Knob Assembly
13BACKSPLASH ASM
19KNOB OPTIONS ASM
35PUSH TO START SWITCH
72WE20X24556 GE Back Panel
75WE01X25535 GE Screw
78WE01X26154 GE Washer
85WE04X24717 GE Switch Rotary
87WE04X24554 GE Rotary Switch
89WE02X24718 GE Buzzer Variable
100WE04X24550 GE Washer Dryer Timer
101WE01X24720 GE Screw 30 x 20 IA PP
130WE15X25203 GE Jumper Harness Black
131WE15X25209 GE Harness
132WE15X25210 GE Harness
133WE15X25205 GE Jumper Harness Purple
134WE15X25207 GE Red Jumper Harness
201WH16X34317 GE Blower Wheel
203WE13X30697 GE Washer Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
206BRACKET IDLER
212WE03X27417 GE Idler Arm Assembly
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
219HOUSING BLOWER
220WE13X29444 GE Blower Plate
228WE01X23892 GE Exhaust Duct
230WE04X25195 GE Washer Dryer Cycle Thermostat
232WE2M202 GE Screw
233WE03X23858 GE Motor Plate
234GEN WE2M96?
239WE2X21854 GE Screw
242WD21X10261 GE Dishwasher Interlock Switch
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630KIT MOTOR DRIVE AND PULLEY 27
2232BUTTON START ASM
3366WE17X24535 GE Motor and Blower Assembly
