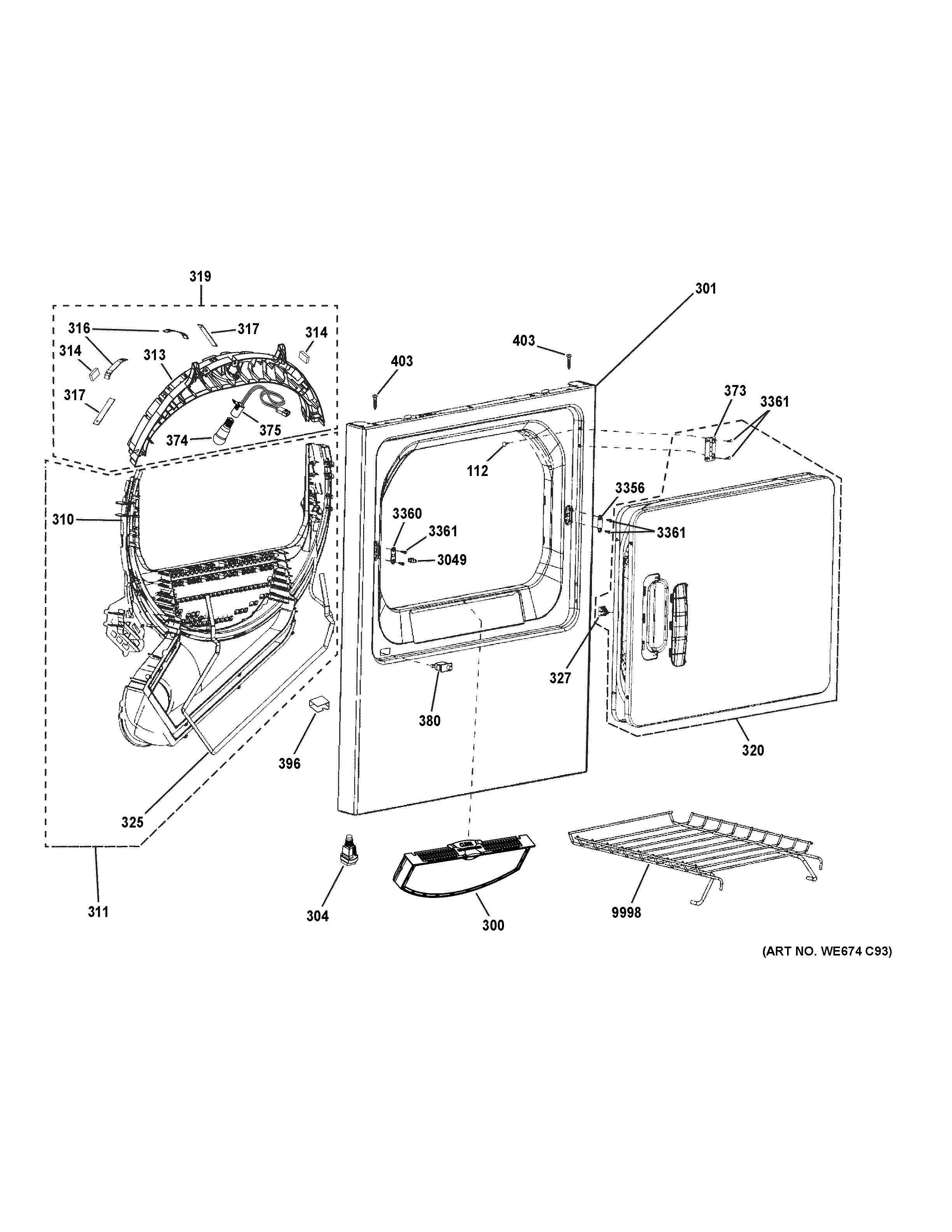

GTD42GASJ3WW FRONT PANEL & DOOR

GTD42GASJ3WW FRONT PANEL & DOOR

Written by

in

GTD42GASJ3WW FRONT PANEL & DOOR

Products

PositionProduct
112WE1M934 GE Plug Button White
300WE03X23881 GE Dryer Lint Filter Replacement Assembly
301WE20X25260 GE Front Panel White
304WE2M188 GE Front Stabilizing Legs
310WE01X24546 GE Dryer Lint Filter Trap
311WE03X25275 GE Duct Assembly Trap
313WE03X23956 GE Dryer Top Bearing Slides
314WE09X27635 GE Felt Top Bearing
316WE03X37320 GE Dryer Bearing Slide 2-Pack
317WE03X37319 GE Dryer Bearing Slide 2-Pack
319BEARING TOP ASM
320WE10X26855 GE Door Assembly
325WE1M825 GE Washer 39 Inch Dryer Gasket Seal
327LATCH
373HINGE ASM
374WE05X20431 GE Washer Dryer 120V 10W Light Bulb Lamp
375WE01X26494 GE Socket Assembly
380WE04X28977 GE Washer Dryer Door Switch
396WE01X23880 GE Shield Switch
403WE01X25318 GE Screw
3049WE01M10007 GE Washer Strike
3356WE1M569 GE Strike Plate
3360WE1M570 GE Strike Plate with Strike Hole
3361WE2M302 GE Screw
9998WE01X25160 GE Dryer Rack
