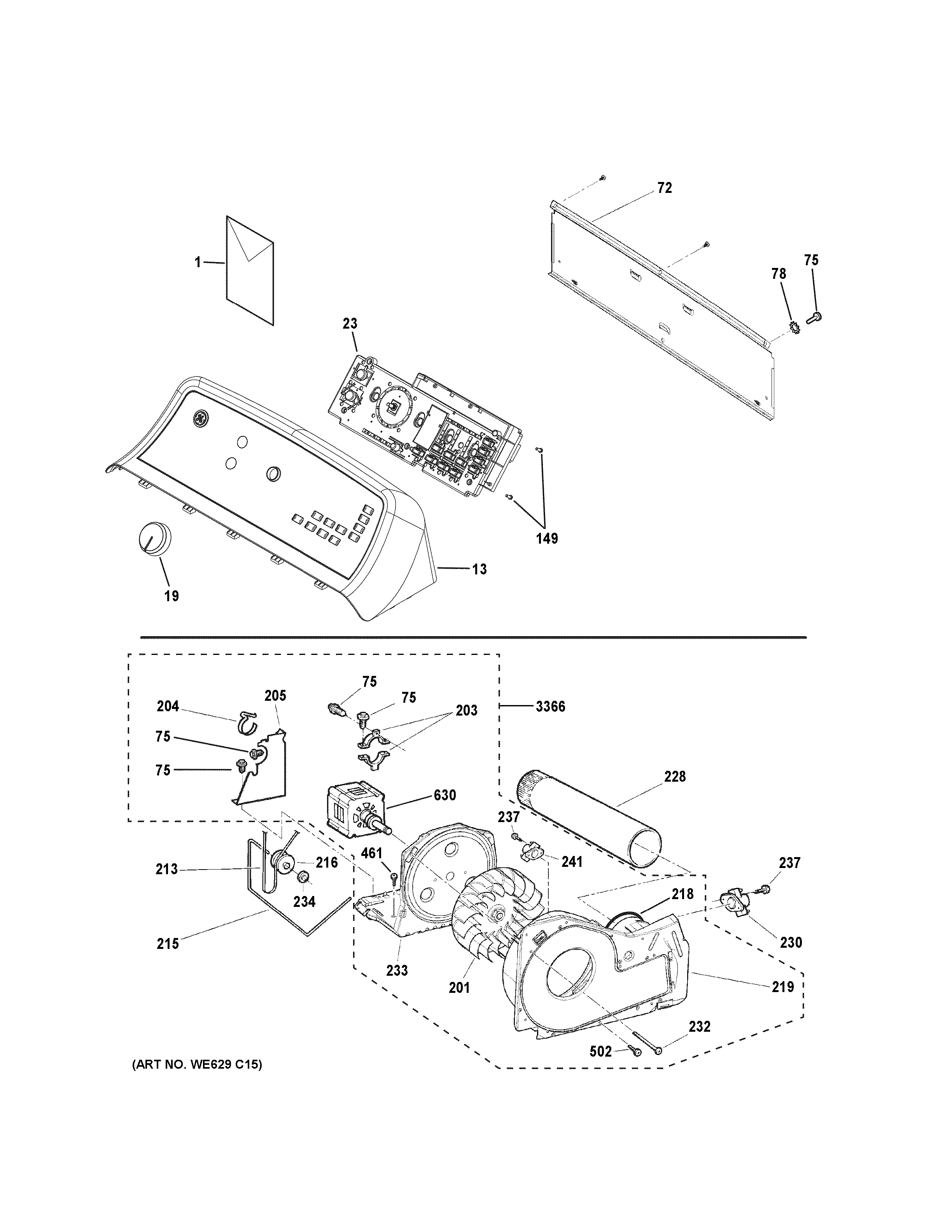

GTD65EBSJ0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1PUB NUMBER INSTALLATION
1PM USE AND CARE DRYER 20
1PUB # MINIMANUAL
13WE03X23885 GE Backsplash Assembly
19WE01X23886 GE Knob Assembly
23MAIN CONTROL BOARD & CHASSIS W
72WE20X23888 GE Panel Back Assembly
75WE01X25535 GE Screw
78WE01X26154 GE Washer
149WR01X10196 GE Refrigerator Screw 8-18 HID02
201WH16X34317 GE Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
219WE03X23859 GE Blower Housing Assembly
228WE01X23893 GE Exhaust Duct
230THERMOSTAT
232WE2M202 GE Screw
233WE03X23858 GE Motor Plate
234CAP NUT
237WD02X10057 GE Dishwasher Screw 10-16 x 1
241WE4M448 GE Washer Thermistor
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630KIT MOTOR DRIVE AND PULLEY 27
3366WE17X23056 GE Blower and Motor Assembly
