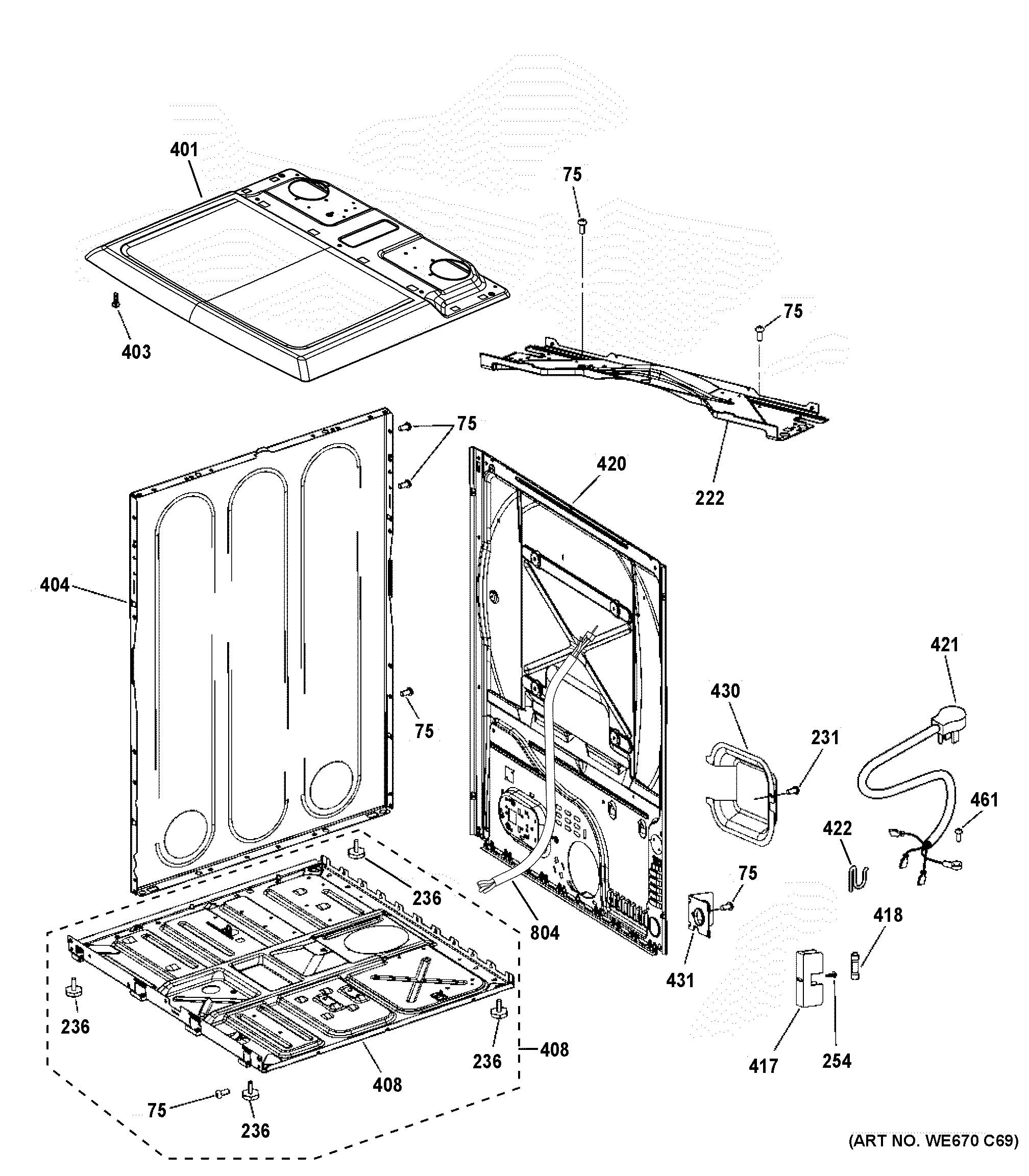

GTD65GBSJ0WS CABINET & TOP PANEL

GTD65GBSJ0WS CABINET & TOP PANEL

Written by

in

GTD65GBSJ0WS CABINET & TOP PANEL

Products

PositionProduct
75WE01X25535 GE Screw
222WE03X23884 GE Bottom Cover
231WE2M200 GE Ground Screw
236WE01X29357 GE Washer Levelling Leg
254WE2X21976 GE Screw 6-20 AB PNP #2 1
401WE03X23889 GE Top Cover High Depth
403WE2M160 GE Screw
404WE20X23867 GE Side Panel
408WE04X25158 GE Appliance Chassis and Leg Assembly
417WE1X21955 GE Washer Fuse Holder
418WE1X21975 GE Washer Fuse
420WE02X23955 GE Rear Panel
421WE26M345 GE Gas Power Cord (120V)
422CLIP CORDSET
430WE1M1007 GE Terminal Fuse Cover
431WE01X20424 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
804WE15X23864 GE Assembly Harness
