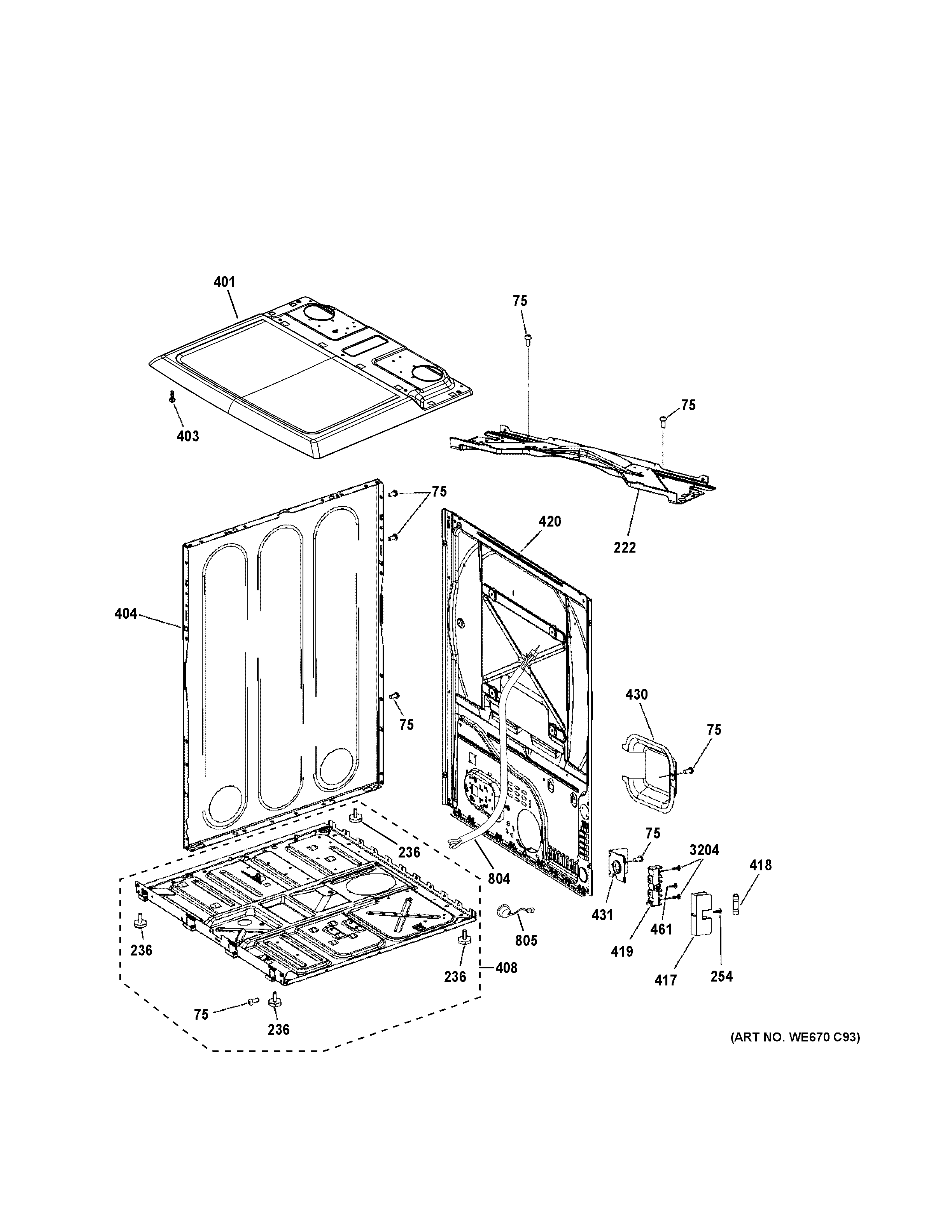

GTD72EBPN0DG CABINET & TOP PANEL

GTD72EBPN0DG CABINET & TOP PANEL

Written by

in

GTD72EBPN0DG CABINET & TOP PANEL

Products

PositionProduct
75WE01X25535 GE Screw
222WE03X23884 GE Bottom Cover
236WE01X29357 GE Washer Levelling Leg
254WE2X21976 GE Screw 6-20 AB PNP #2 1
401WE03X27536 GE High Depth Top Cover
403WE2M160 GE Screw
404WE20X26817 GE Side Panel
408WE04X25158 GE Appliance Chassis and Leg Assembly
417WE1X21955 GE Washer Fuse Holder
418WE1X21975 GE Washer Fuse
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE10X29437 GE Rear Panel
430WE1M1007 GE Terminal Fuse Cover
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
804WE08X29300 GE Electric Dryer Harness
805WE08X29302 GE High Limit Harness
3204WZ4X241D GE Screw Package
