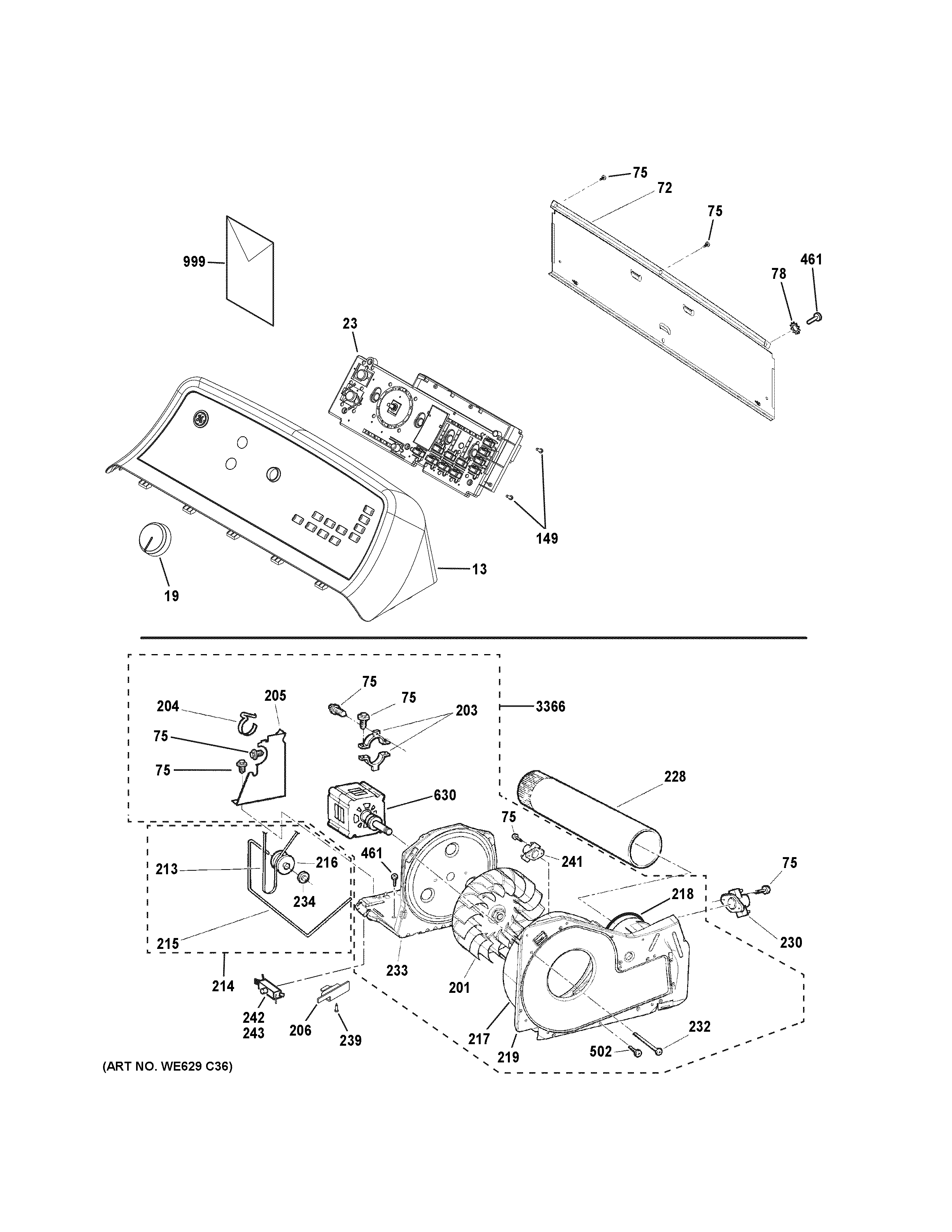

GTD72GBSN0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

GTD72GBSN0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

GTD72GBSN0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
13WE13X29425 GE IMD Backsplash Assembly
19WH01X28943 GE Selector Knob
23WE22X32940 GE Control Board and Chassis
72WE20X24556 GE Back Panel
75WE01X25535 GE Screw
78WE01X26154 GE Washer
149WR01X10196 GE Refrigerator Screw 8-18 HID02
201WH16X34317 GE Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
206BRACKET IDLER
213WE03X29897 BELT DRIVE
214WE03X27417 GE Idler Arm Assembly
215WE03X20434 GE Washer Idler Arm
216PULLEY
217WE13X29444 GE Blower Plate
218WE09X27636 GE Exhaust Blower Gasket
219WE03X23859 GE Blower Housing Assembly
228WE01X23893 GE Exhaust Duct
230WE04X31007 GE Thermostat
232WE2M202 GE Screw
233WE03X23858 GE Motor Plate
234CAP NUT
239WE2X21854 GE Screw
241WE4M448 GE Washer Thermistor
242WD21X10261 GE Dishwasher Interlock Switch
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630KIT MOTOR DRIVE AND PULLEY 27
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
3366WE03X29258 GE Motor and Blower
