GTD75ECSL0WS CABINET & TOP PANEL

GTD75ECSL0WS CABINET & TOP PANEL

Written by

in

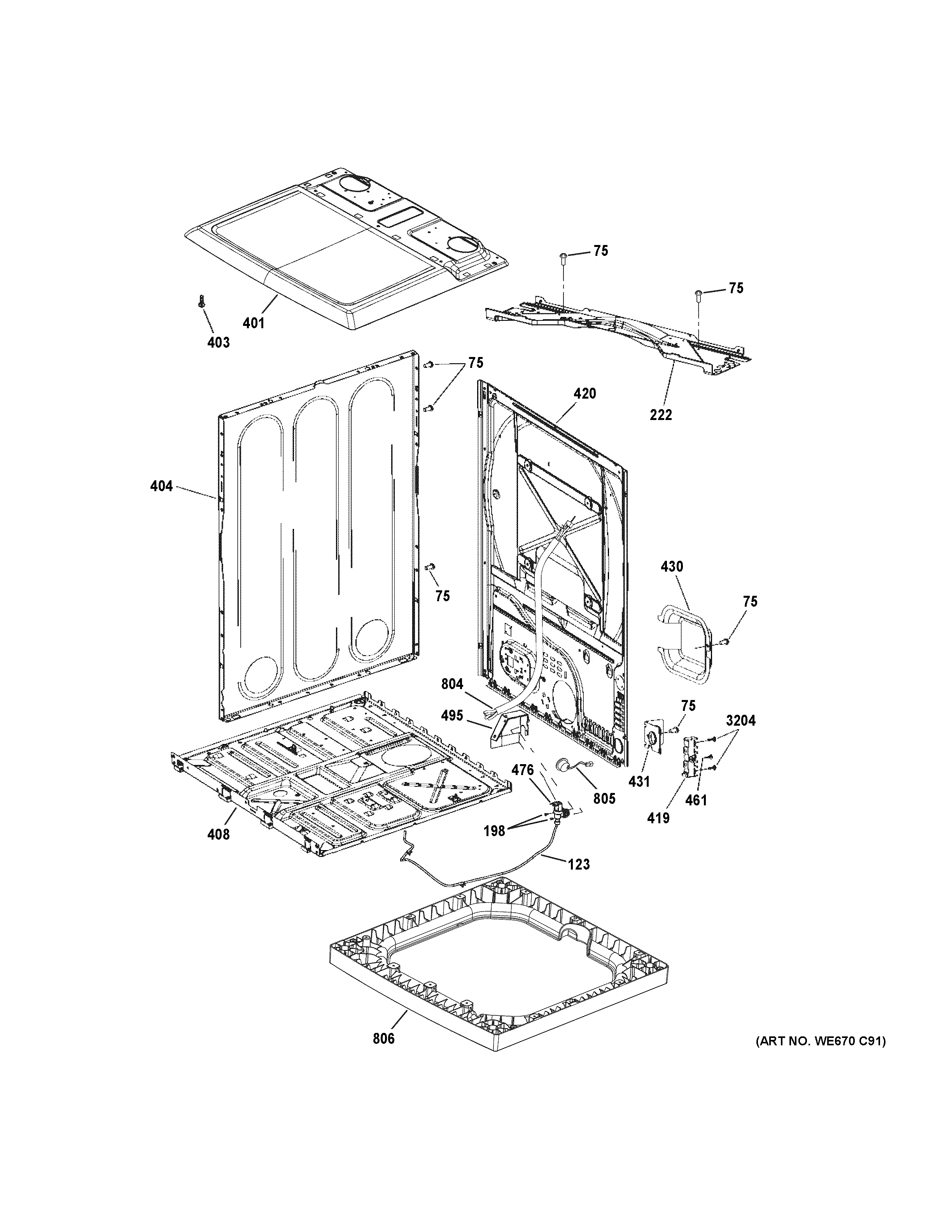

GTD75ECSL0WS CABINET & TOP PANEL

Products

PositionProduct
123WE1M1035 GE Tube
198WE01X25535 GE Screw
222WE03X23884 GE Bottom Cover
401WE03X23889 GE Top Cover High Depth
403WE01X25318 GE Screw
404WE20X23867 GE Side Panel
408WE20X27594 GE Chassis Base
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE02X23955 GE Rear Panel
430WE1M1007 GE Terminal Fuse Cover
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
476WE4M503 GE Water Valve
495WE1M933 GE Dryer Water Valve Shield
804WE15X26819 GE Electric Harness Assembly
805WE15X26821 GE Harness High Limit Assembly
806WE01X26822 GE Riser Assembly
3204WZ4X241D GE Screw Package
