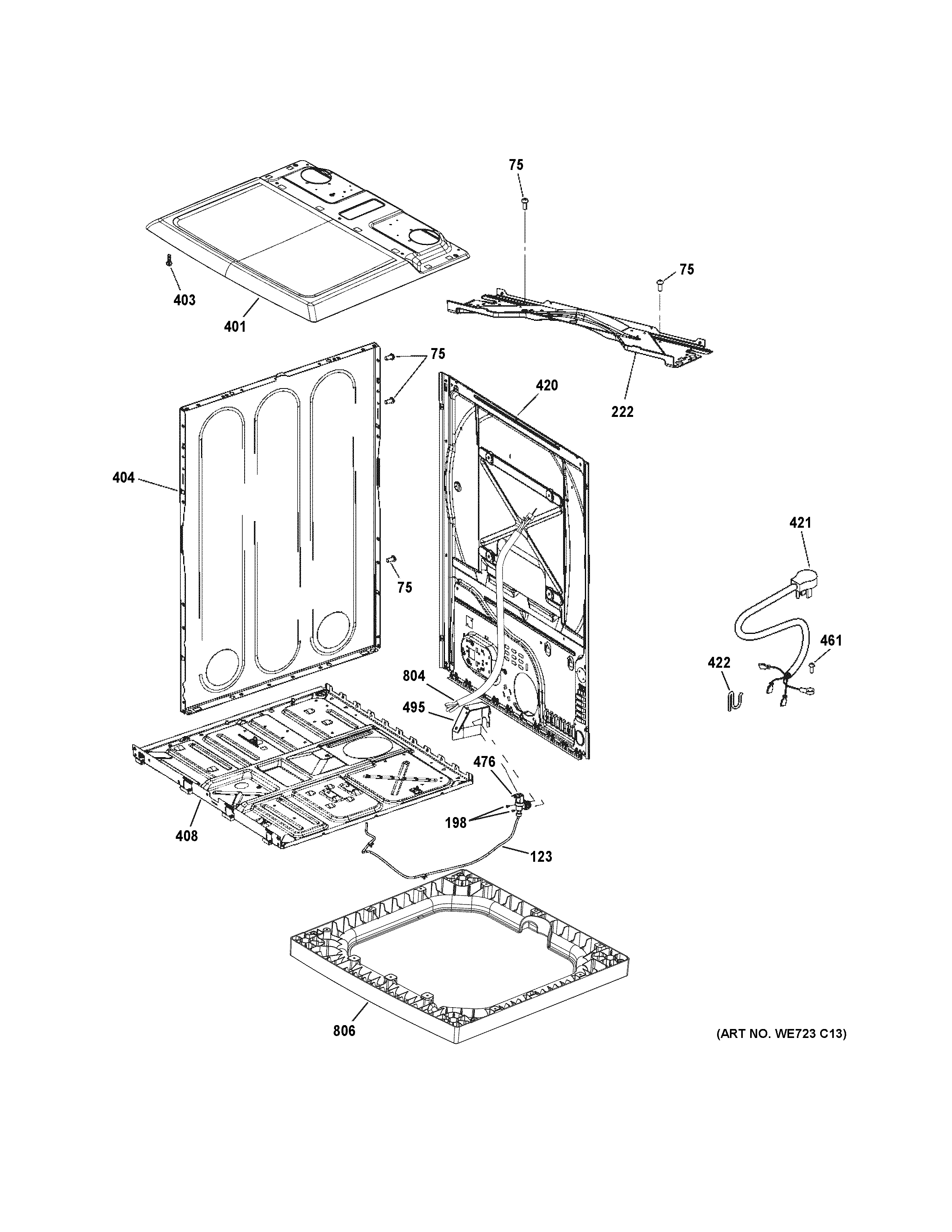

GTD75GCSL1WS CABINET & TOP PANEL

GTD75GCSL1WS CABINET & TOP PANEL

Written by

in

GTD75GCSL1WS CABINET & TOP PANEL

Products

PositionProduct
123WE1M1035 GE Tube
198WE01X25535 GE Screw
222WE03X23884 GE Bottom Cover
401WE03X23889 GE Top Cover High Depth
403WE01X25318 GE Screw
404WE20X23867 GE Side Panel
408WE20X27594 GE Chassis Base
420WE02X23955 GE Rear Panel
421WE26M345 GE Gas Power Cord (120V)
422CLIP CORDSET
461WZ5X158D GE Screw Package of 12
476WE4M503 GE Water Valve
495WE1M933 GE Dryer Water Valve Shield
804WE15X26820 GE Gas Harness Assembly
806WE01X26822 GE Riser Assembly
