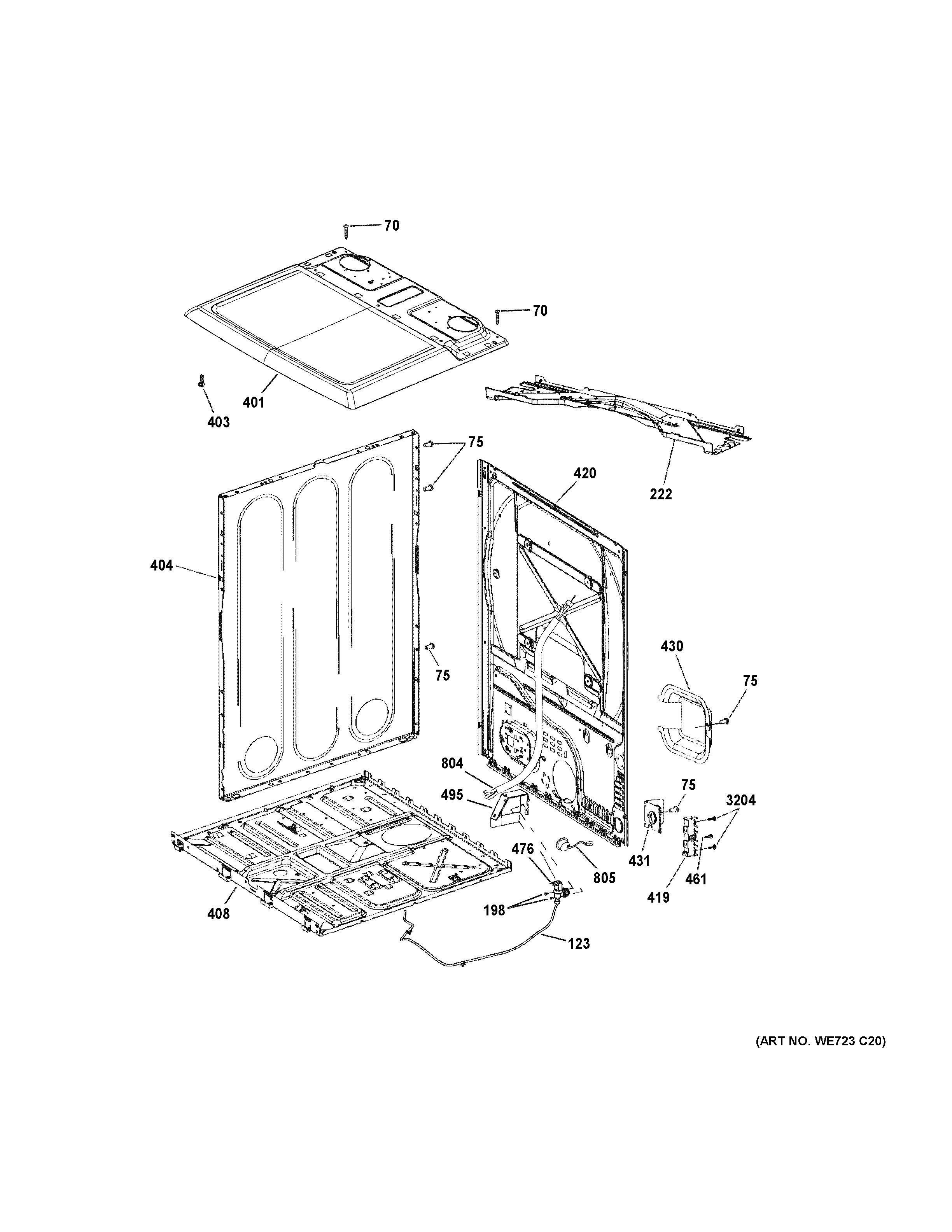

GTD84ECPN0DG CABINET & TOP PANEL

GTD84ECPN0DG CABINET & TOP PANEL

Written by

in

GTD84ECPN0DG CABINET & TOP PANEL

Products

PositionProduct
70WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
123WE01X29465 GE Tube
198WE01X25535 GE Screw
222WE03X23884 GE Bottom Cover
401WE03X27536 GE High Depth Top Cover
403WE01X25318 GE Screw
404SIDE PANEL
408WE13X29562 GE Base Chassis
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE10X29463 GE Rear Panel
430WE1M1007 GE Terminal Fuse Cover
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
476WE4M503 GE Water Valve
495WE1M933 GE Dryer Water Valve Shield
804WE08X29466 GE Electric Harness Assembly
805WE08X29468 GE High Limit Harness
3204WZ4X241D GE Screw Package
