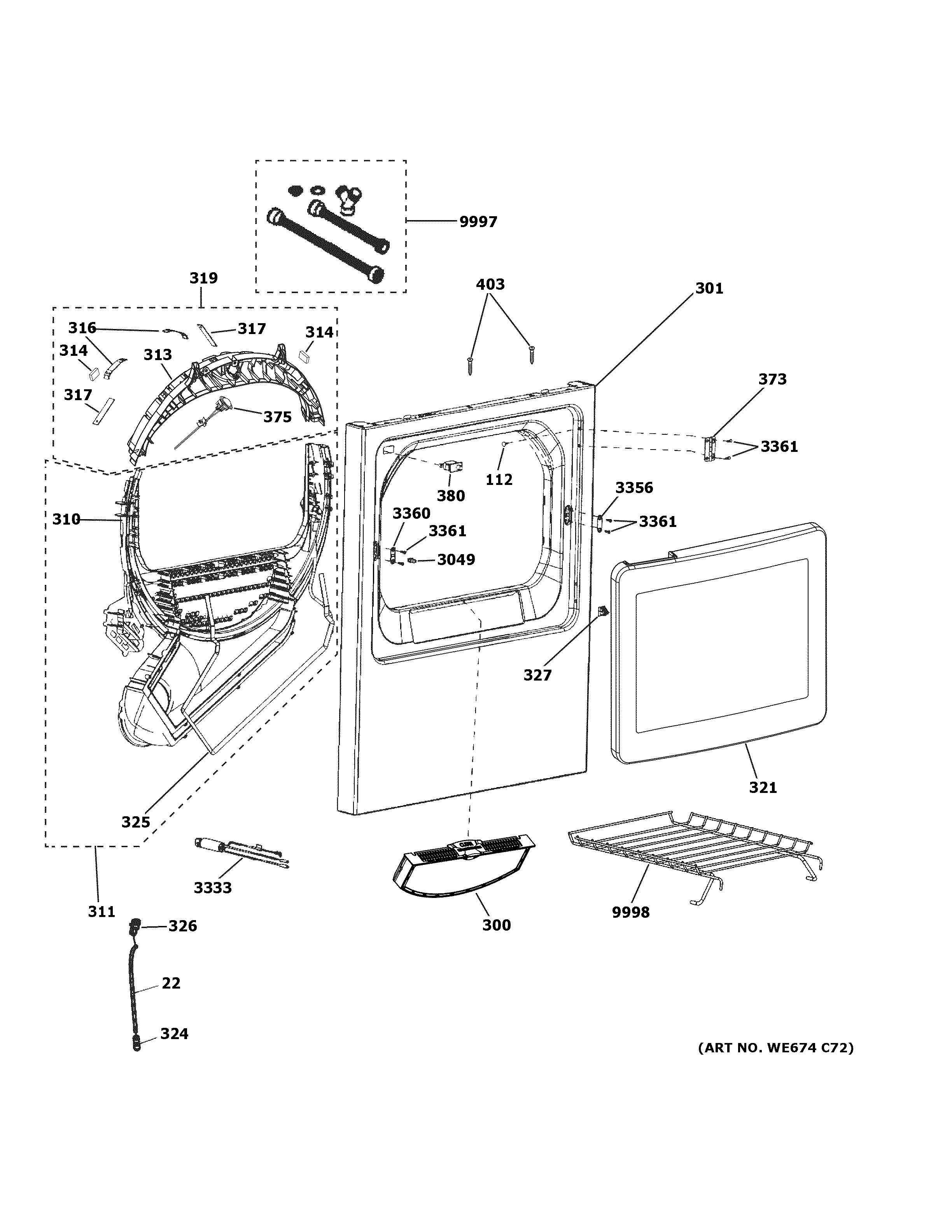

GTD84ECPN0DG FRONT PANEL & DOOR

GTD84ECPN0DG FRONT PANEL & DOOR

Written by

in

GTD84ECPN0DG FRONT PANEL & DOOR

Products

PositionProduct
22WE01X28094 GE Tube
112WE1M949 GE Gray Plug Button
300WE03X23881 GE Dryer Lint Filter Replacement Assembly
301FRONT PANEL DIAMOND GRAY
310WE16X29473 GE Trap Duct
311WE16X29472 GE Duct Trap Assembly
313WE03X23956 GE Dryer Top Bearing Slides
314WE09X27635 GE Felt Top Bearing
316WE03X37320 GE Dryer Bearing Slide 2-Pack
317WE03X37319 GE Dryer Bearing Slide 2-Pack
319WE03X23875 GE Washer Drum Support Bearing
321WE10X27467 GE Door Assembly
324CONNECTOR SERVICE
325WE1M825 GE Washer 39 Inch Dryer Gasket Seal
326WE1M943 GE Nozzle and Elbow Assembly
327LATCH
373HINGE ASM
375WE15X25754 GE LED
380WE04X28977 GE Washer Dryer Door Switch
403WE01X25318 GE Screw
3049WE01M10007 GE Washer Strike
3333WE15X26994 GE Sensor Harness Assembly
3356WE1M569 GE Strike Plate
3360WE1M570 GE Strike Plate with Strike Hole
3361WE2M302 GE Screw
9997WE25X20060 GE Steam Kit
9998WE01X25160 GE Dryer Rack
