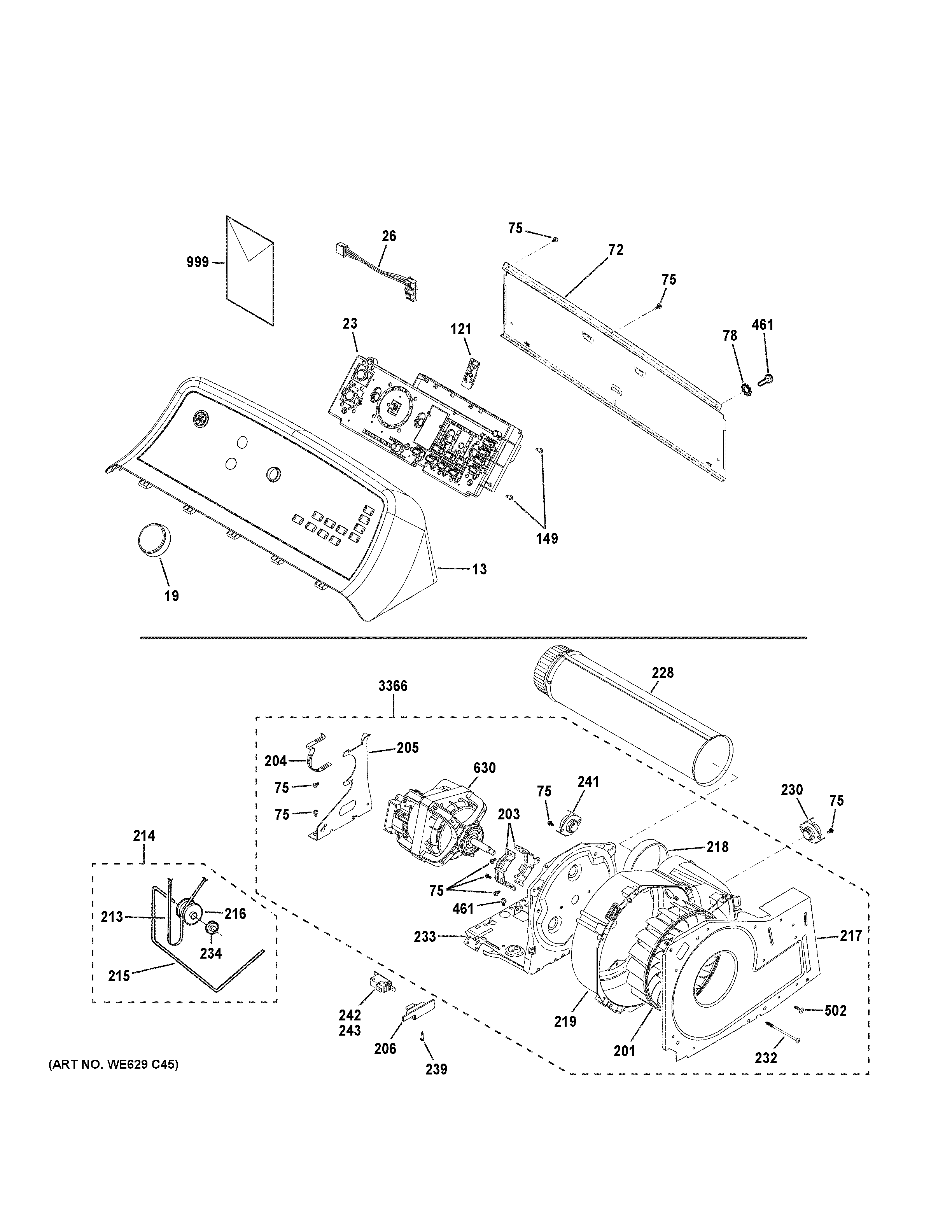

GTD84GCPN2DG BACKSPLASH, BLOWER & MOTOR ASSEMBLYadmin2025-04-26T08:43:34+00:00GTD84GCPN2DG BACKSPLASH, BLOWER & MOTOR ASSEMBLY ProductsPositionProduct13WE22X29475 GE IMD and Backsplash Assembly19WH01X28943 GE Selector Knob23CHASSIS AND BOARD ASM26WE08X29476 GE Washer Cap Touch to Main UI Harness72WE20X24556 GE Back Panel75WE01X25535 GE Screw78WE01X26154 GE Washer121WH22X33297 GE Wifi Board with Instructions149WR01X10196 GE Refrigerator Screw 8-18 HID02201WH16X34317 GE Blower Wheel203WE13X200 GE Motor Strap204WE1X921 GE Motor Strap205WE13M39 GE Motor Support206BRACKET IDLER213WE03X29259 GE Drive Belt214WE03X27417 GE Idler Arm Assembly215WE03X20434 GE Washer Idler Arm216PULLEY217WE13X29444 GE Blower Plate218WE09X27636 GE Exhaust Blower Gasket219WE13X29560 GE Blower Housing228WE01X23893 GE Exhaust Duct230WE04X31007 GE Thermostat232WE2M202 GE Screw233WE03X23858 GE Motor Plate234GEN WE2M96?239WE2X21854 GE Screw241WE4M448 GE Washer Thermistor242WD21X10261 GE Dishwasher Interlock Switch461WZ5X158D GE Screw Package of 12502WE2M174 GE Screw #10630KIT MOTOR DRIVE AND PULLEY 27999PM INSTALL INSTRUCTIONS999PM MINI MANUAL AND WIRING3366WE03X29257 GE Motor and Blower Assembly
