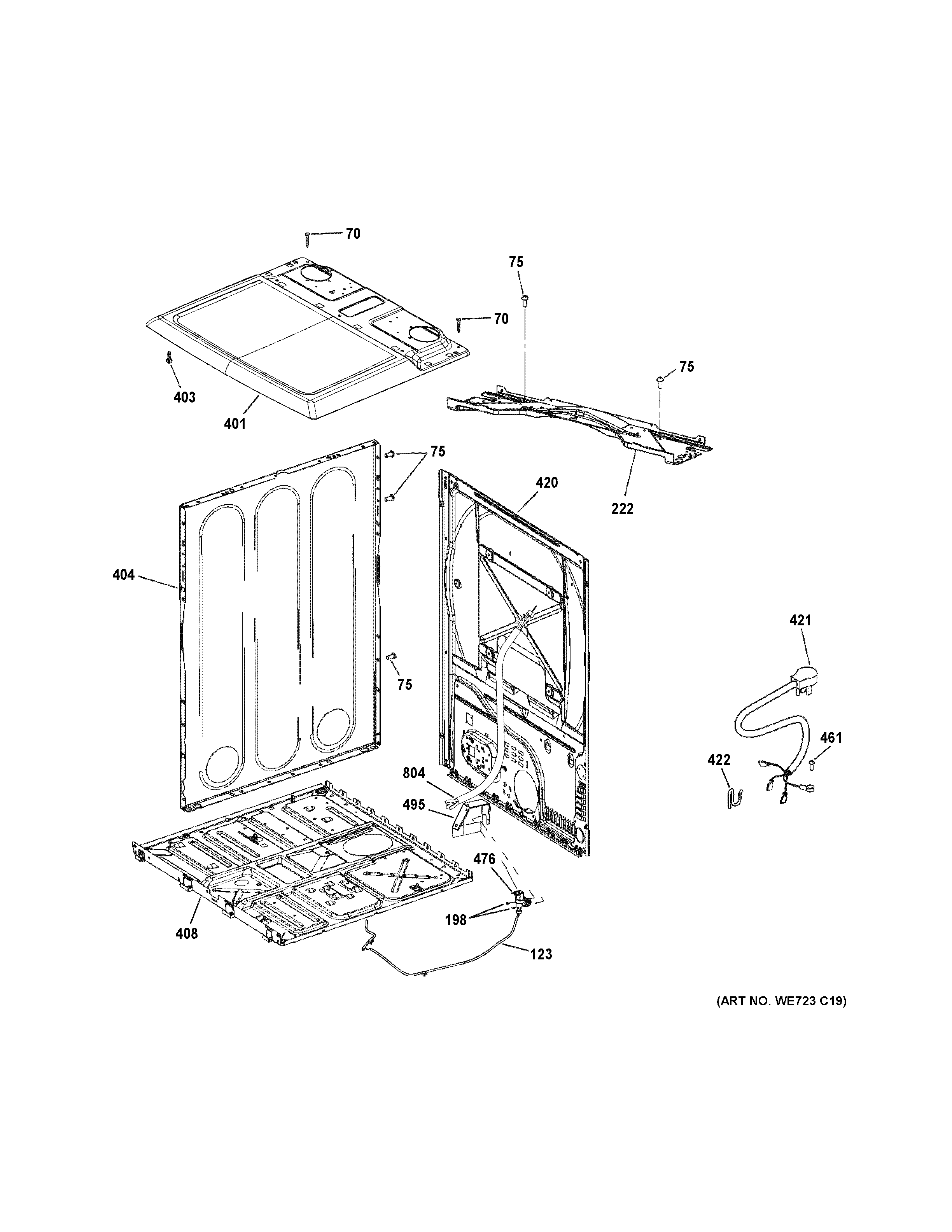

GTD84GCSN1WS CABINET & TOP PANEL

GTD84GCSN1WS CABINET & TOP PANEL

Written by

in

GTD84GCSN1WS CABINET & TOP PANEL

Products

PositionProduct
70WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
123WE01X29465 GE Tube
198WE01X25535 GE Screw
222WE03X23884 GE Bottom Cover
401WE03X23889 GE Top Cover High Depth
403WE01X25318 GE Screw
404WE10X29470 GE Side Panel
408WE13X29562 GE Base Chassis
420WE10X29463 GE Rear Panel
421WE26M345 GE Gas Power Cord (120V)
422CLIP CORDSET
461WZ5X158D GE Screw Package of 12
476WE4M503 GE Water Valve
495WE1M933 GE Dryer Water Valve Shield
804WE08X29467 GE Gas Harness Assembly
