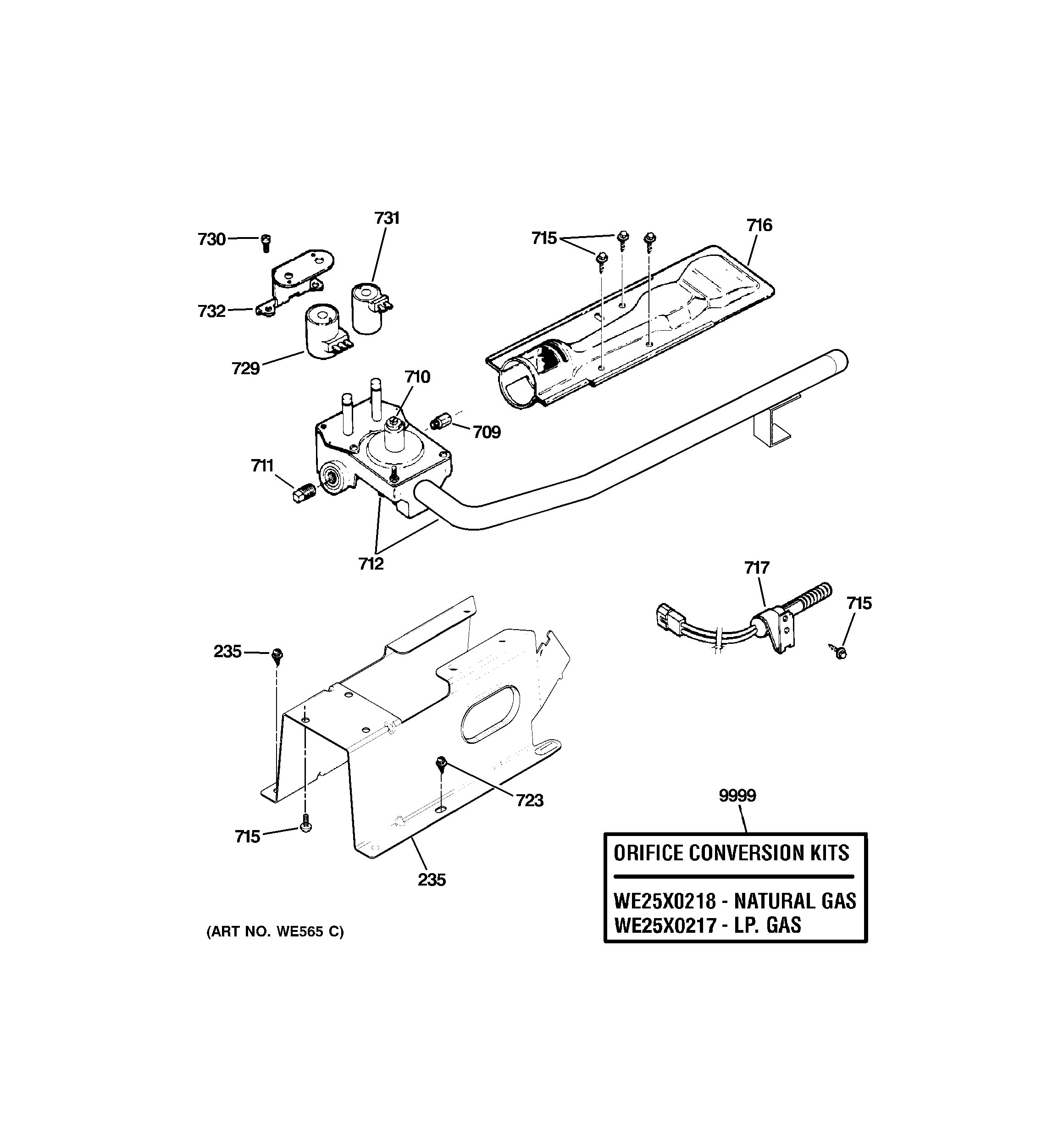

GTDL200GM1WW GAS VALVE & BURNER ASSEMBLY

GTDL200GM1WW GAS VALVE & BURNER ASSEMBLY

Written by

in

GTDL200GM1WW GAS VALVE & BURNER ASSEMBLY

Products

PositionProduct
235WE2X263D GE Screw Package 12 C92
709WE1X1148 GE Main Orifice
710WE1X1076 GE Leak Limiter
711GEN 1/8-27 NPT
712WE11X20711 GE Valve and Pipe Assembly
715WD2M101 GE Dishwasher Screw
716WE14M104 GE Burner Assembly
717GAS IGNITER ASM
723BRACKET GAS VALVE
729WE4X692 GE Gas Valve Solenoid
730WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731WE4X693 GE Main Coil
732GEN WE13X0169
9999WE25X217 GE LP Natural Gas Conversion Kit
9999WE25X218 GE Conversion Kit
