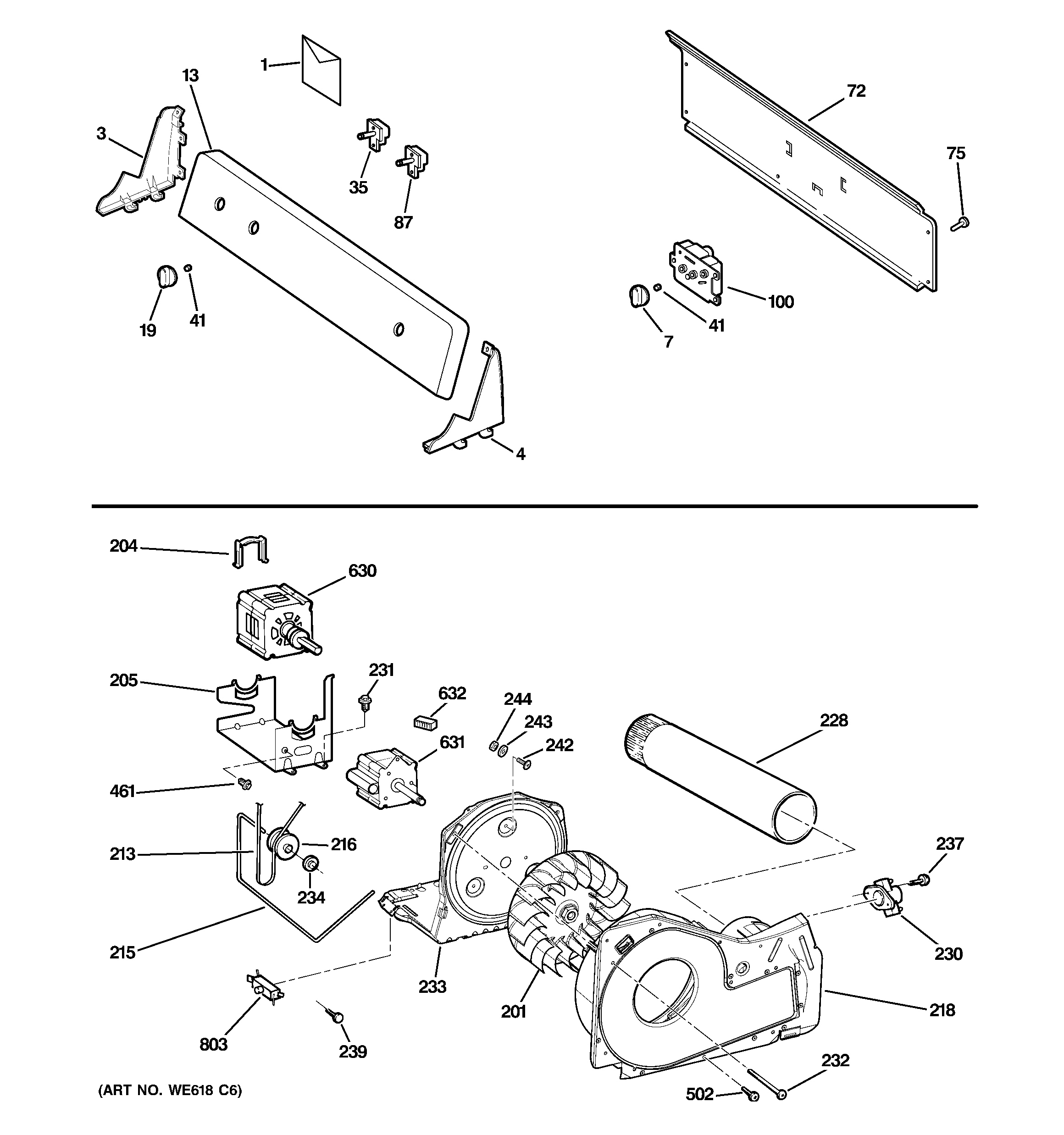

GTDL200GM2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

GTDL200GM2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

GTDL200GM2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16254
1GEN 49-90407
1GEN 31-16227
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
7WE01X20374 GE White Timer Knob Assembly
13GEN WE19M1675
19WE01X20378 GE Washer Control Knob
35WE4M412 GE Rotary Start Switch
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75GEN WE2M308
75WE2M173 GE Screw
87ROTARY SWITCH 4TEMP
100GEN WE4M506
201BLOWER WHEEL
204WE1M555 GE Motor Clip
205WE13M38 GE Motor Plate
213WE03X29897 BELT DRIVE
215WE03X21438 GE Idler Arm
216PULLEY
218GEN WE14M199
218WE09X27636 GE Exhaust Blower Gasket
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233PLATE MOTOR
234GEN WE2M96?
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
242WE02X28997 GE Plain Screw and Washers
243WASHER
244RUBBER GROMMET
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630MTR/PULLEY ASM L.V.
631WE49X22596 GE Blower Motor Assembly
632GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
