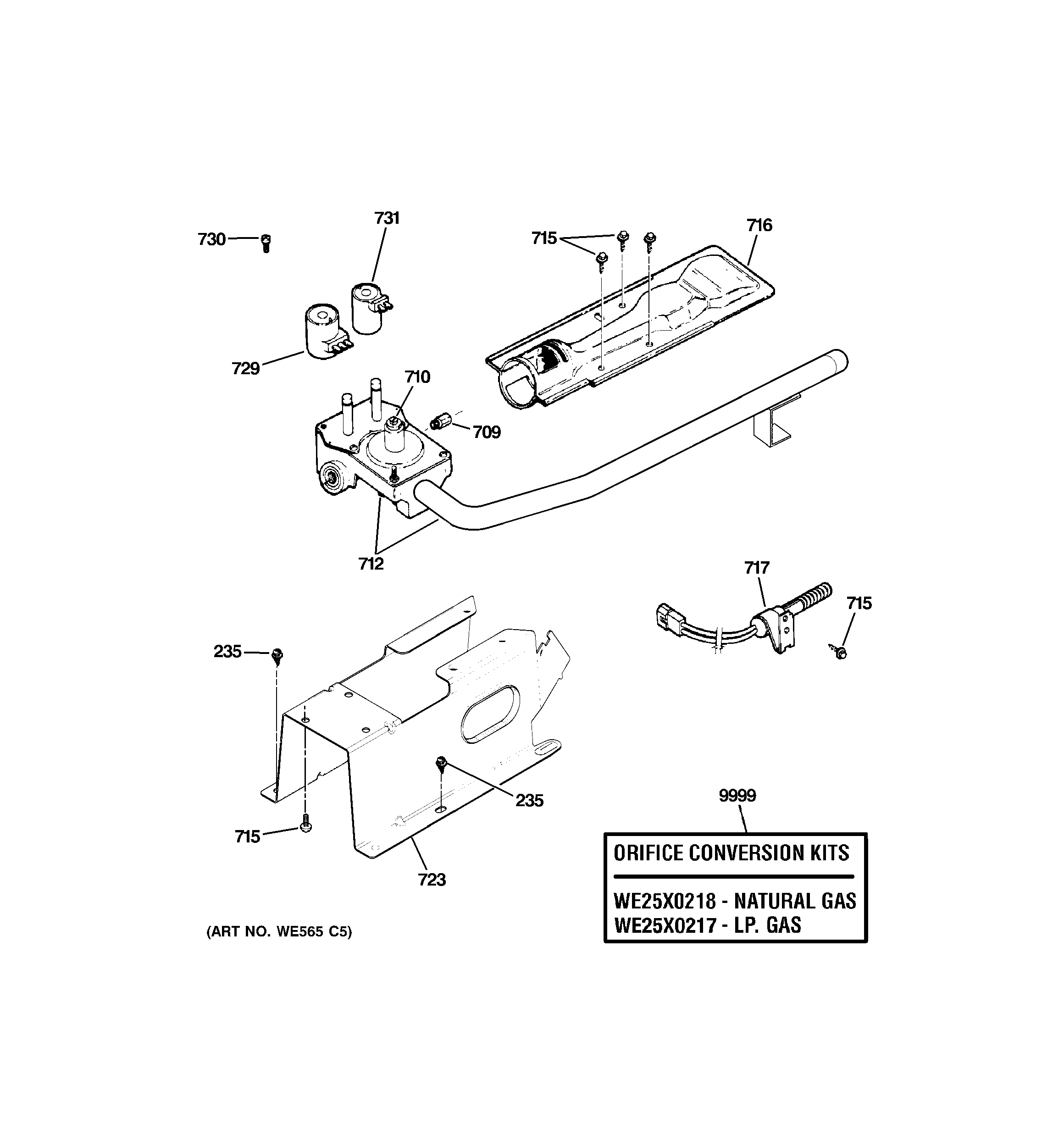

GTDL200GM2WW GAS VALVE & BURNER ASSEMBLY

GTDL200GM2WW GAS VALVE & BURNER ASSEMBLY

Written by

in

GTDL200GM2WW GAS VALVE & BURNER ASSEMBLY

Products

PositionProduct
235WE2M307 GE Screw 10-16 X 1/2 AB
709WE1X1148 GE Main Orifice
710WE1X1076 GE Leak Limiter
712WE11X20711 GE Valve and Pipe Assembly
715WD2M101 GE Dishwasher Screw
716WE14M104 GE Burner Assembly
717GAS IGNITER ASM
723WE13X20405 GE Bracket Gas Valve
729WE4X692 GE Gas Valve Solenoid
730WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731WE4X693 GE Main Coil
