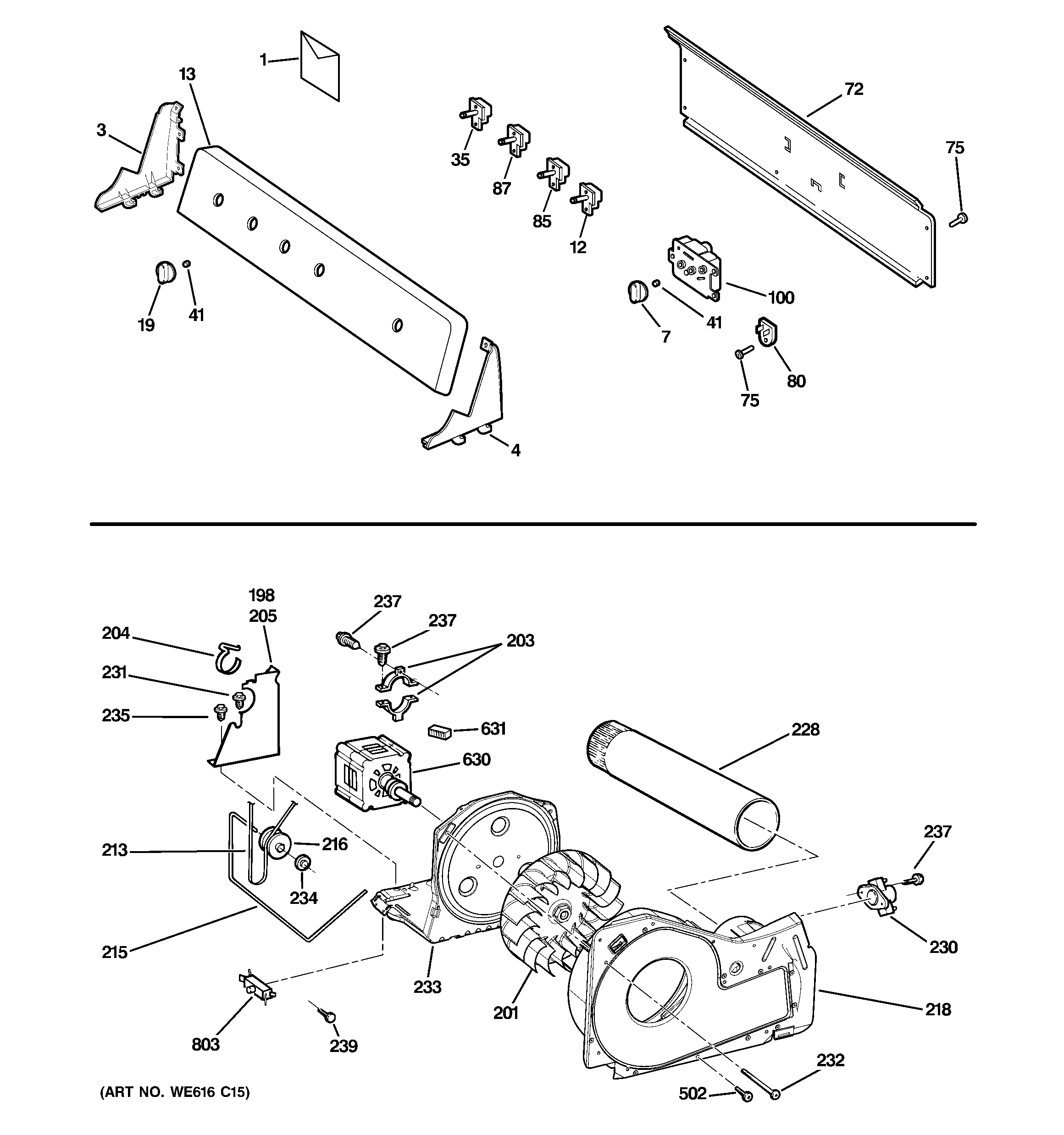

GTDP250EM2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

GTDP250EM2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

GTDP250EM2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16224
1GEN 31-16165
1GEN 49-90407
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
7WE01X20374 GE White Timer Knob Assembly
12GEN WE4M368
13GEN WE19M1677
19WE01X20378 GE Washer Control Knob
35WE4M519 GE Washer Start Switch Rotary
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
75GEN WE2M308
80GEN WE04X10029?
85WE4M399 GE Rocker Switch
87WE4M407 GE Dryer Rotary Temperature Switch 4 Temperature
100WE04X20089 GE Washer Control Timer
198WE2M200 GE Ground Screw
201BLOWER WHEEL
203GEN WE13X0200?
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218GEN WE1M473?
218GEN WE14M199
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233GEN WZ05X0158?
233GEN WE13M51
234GEN WE2M96?
235WE2M307 GE Screw 10-16 X 1/2 AB
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
