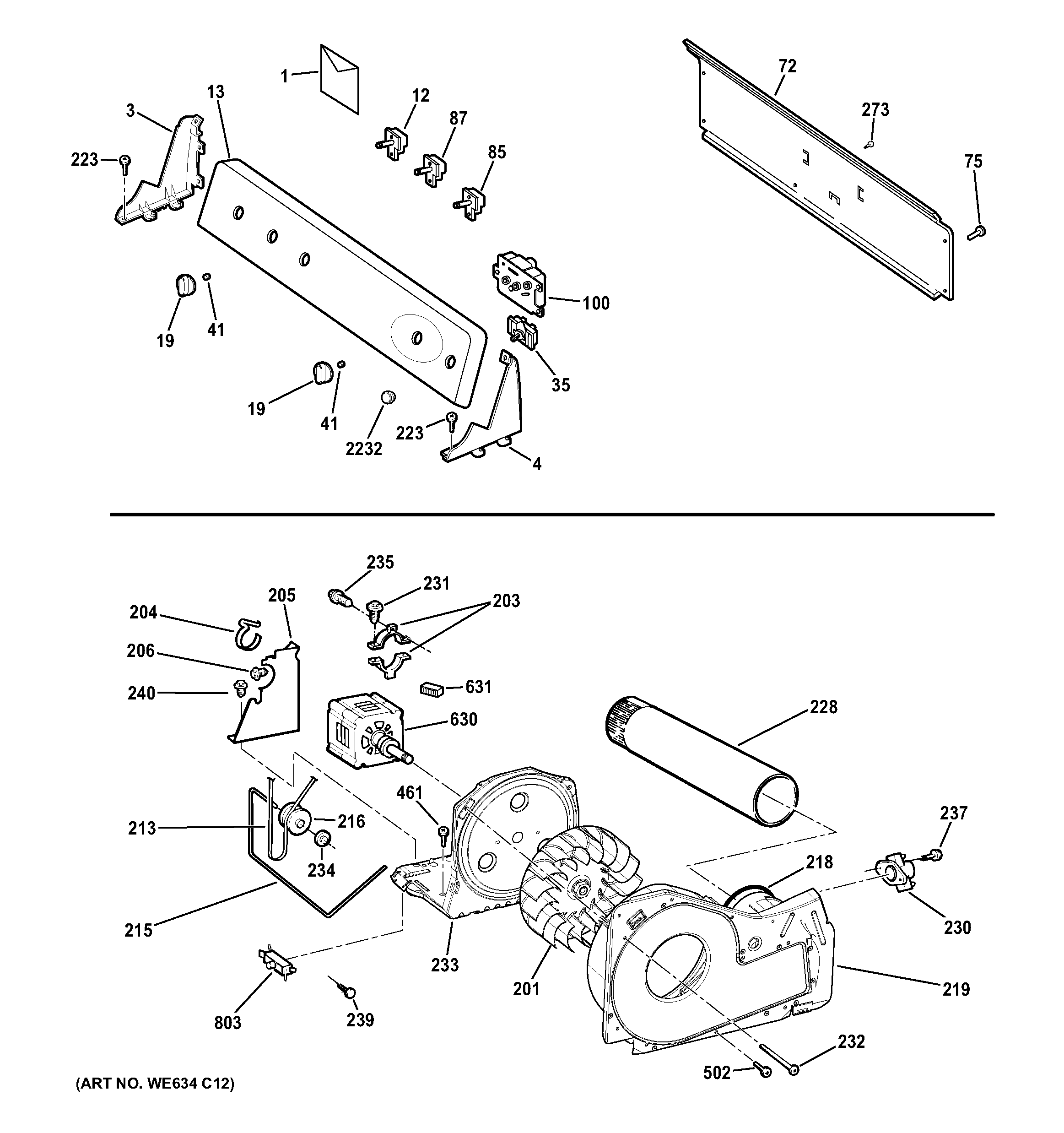

GTDP450GD2WS BACKSPLASH, BLOWER & DRIVE ASSEMBLY

GTDP450GD2WS BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Written by

in

GTDP450GD2WS BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Products

PositionProduct
1GEN 31-16225-2
1GEN 31-16278
1GEN 49-90407-1
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
12GEN WE04X20556
13GEN WE19M1716
19WE01X20380 GE Washer Gray Timer Control Knob
35PUSH TO START SWITCH
41GEN WE1X980
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
85WE4M399 GE Rocker Switch
87ROTARY SWITCH 4TEMP
100WE04X20416 GE Washer Dryer Control Timer Assembly with Plastic Shaft
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
206WE2M200 GE Ground Screw
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
218GEN WE14M234
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233GEN WE13M65
234GEN WE2M96?
235WE2X263D GE Screw Package 12 C92
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
240WE1M280 GE Screw
273WE2M228 GE Ground Screw No. 8
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232WE1M659 GE Dryer Push-to-Start Button
