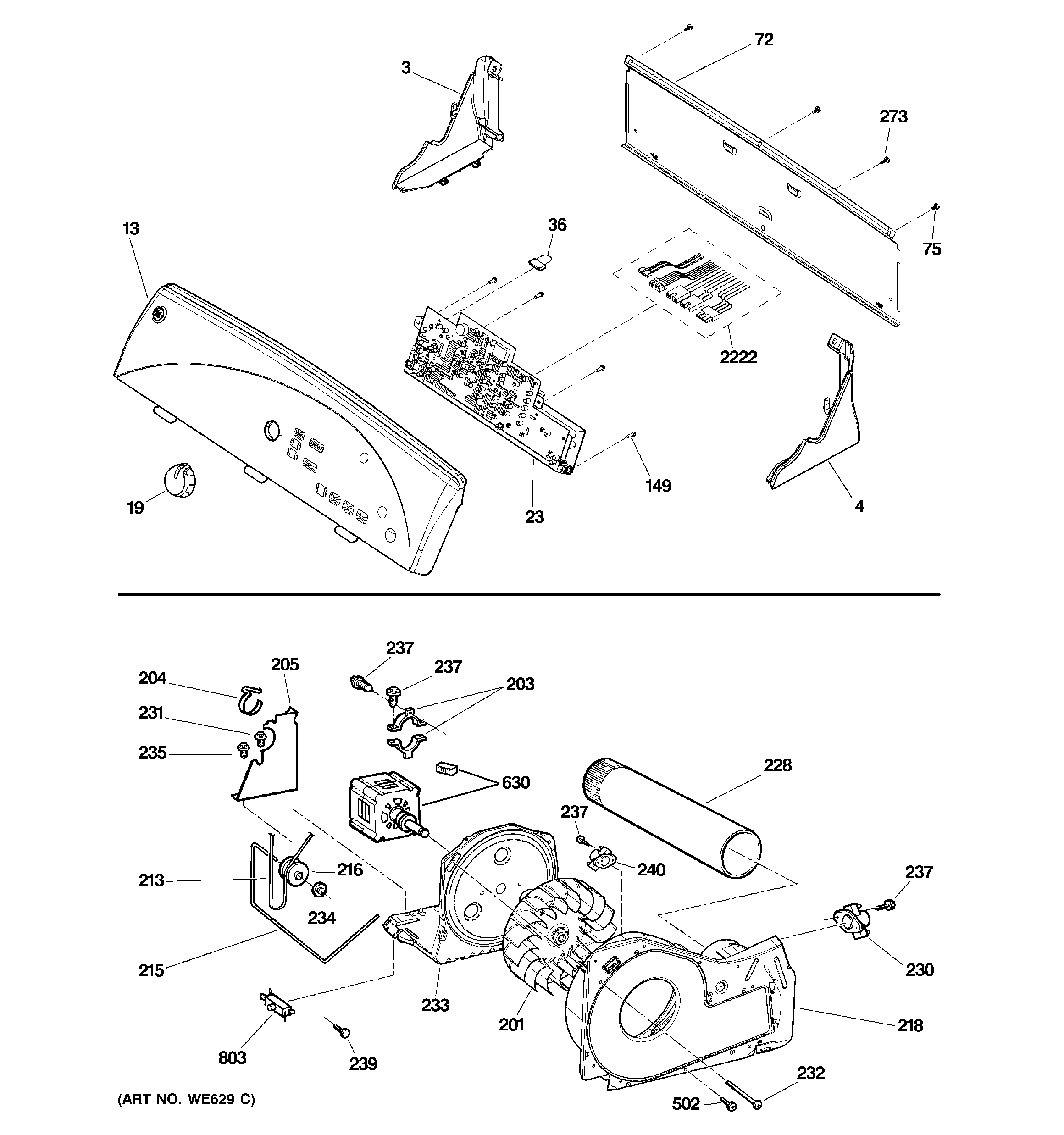

GTDP520GD1WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

GTDP520GD1WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

GTDP520GD1WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
13BACKSPLASH ASM
19KNOB ASM
23GEN WE4M537
36GEN WE5M67
75WE2M173 GE Screw
149WR01X10196 GE Refrigerator Screw 8-18 HID02
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE14X20421 GE Exhaust Duct
218GEN WE14M235
218WE09X27636 GE Exhaust Blower Gasket
232WE2M202 GE Screw
233GEN WE13M51
234GEN WE2M96?
235WE2M307 GE Screw 10-16 X 1/2 AB
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
240WE4M448 GE Washer Thermistor
273WE2M228 GE Ground Screw No. 8
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
803WD21X10261 GE Dishwasher Interlock Switch
2222GEN WE26M408
