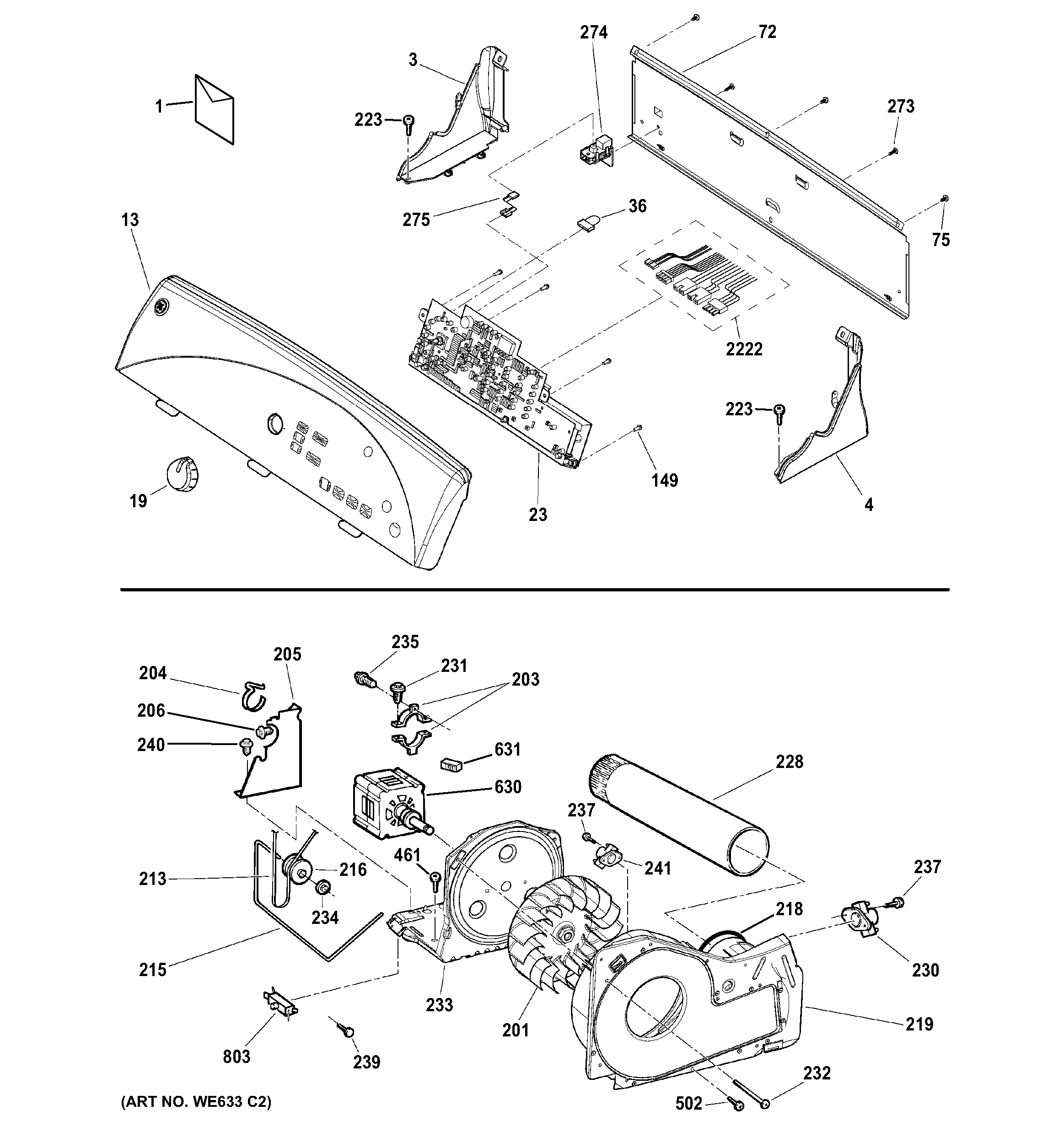

GTDS580GD1WW BACKSPLASH, BLOWER & DRIVE ASSEMBLY

GTDS580GD1WW BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Written by

in

GTDS580GD1WW BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Products

PositionProduct
1GEN 31-16271
1GEN 49-90452
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
13GEN WE19M1729
19KNOB ASM
23GEN WE4M539
36GEN WE5M84
72GEN WE19M1733
75WE2M173 GE Screw
149WR01X10196 GE Refrigerator Screw 8-18 HID02
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
206WE2M200 GE Ground Screw
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
219GEN WE14M200
223WE2M189 GE Screw
228WE14X20421 GE Exhaust Duct
232WE2M202 GE Screw
233GEN WE13M65
234GEN WE2M96?
235WE2M307 GE Screw 10-16 X 1/2 AB
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
240WE1M280 GE Screw
241WE4M448 GE Washer Thermistor
273WE2M228 GE Ground Screw No. 8
275GEN WE5M92
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2222GEN WE5M89
