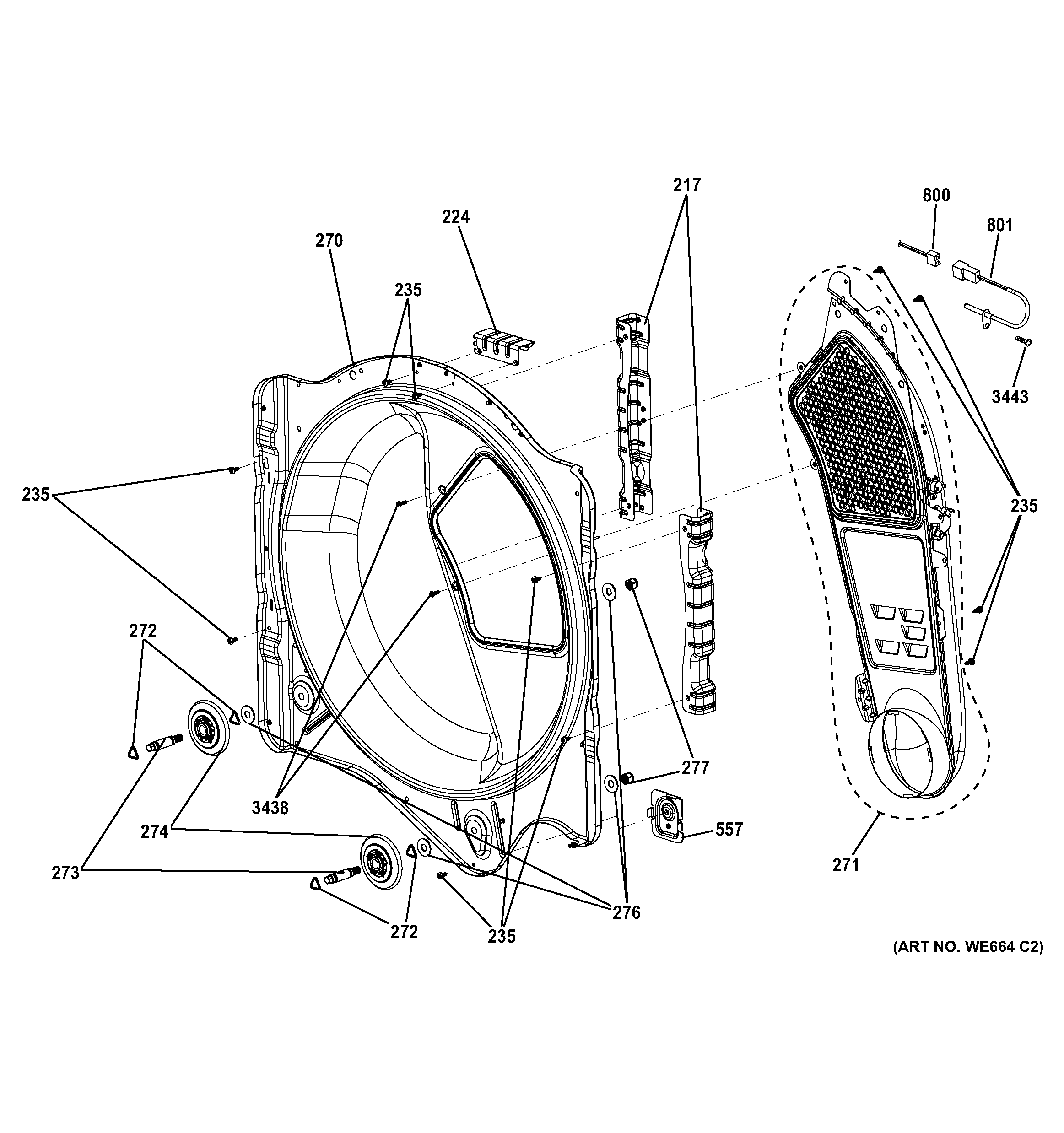

GTDS810ED0WS REAR ROLLER SUPPORT

GTDS810ED0WS REAR ROLLER SUPPORT

Written by

in

GTDS810ED0WS REAR ROLLER SUPPORT

Products

PositionProduct
217WE1M1061 GE Rear Roller Bracket
224BRACKET TOP
235WE2X263D GE Screw Package 12 C92
270WE20M512 GE Rear Support Roller
271WE14X21660 GE Duct Transition Assembly
272WE1M1065 GE Lock
273WE3M53 GE Roller Shaft
274ROLLER ASM WHEEL
277WE2M312 GE Washer Plain 3/8
557BRACKET BOTTOM
800HARNESS ELEC ASM
800WE4M550 GE Inlet Thermistor
3438WE2M282 GE Screw 6-18 B B1Q1 3/4 S ZN
3443WE1M280 GE Screw
