GTDS810GD0WS REAR ROLLER SUPPORT

GTDS810GD0WS REAR ROLLER SUPPORT

Written by

in

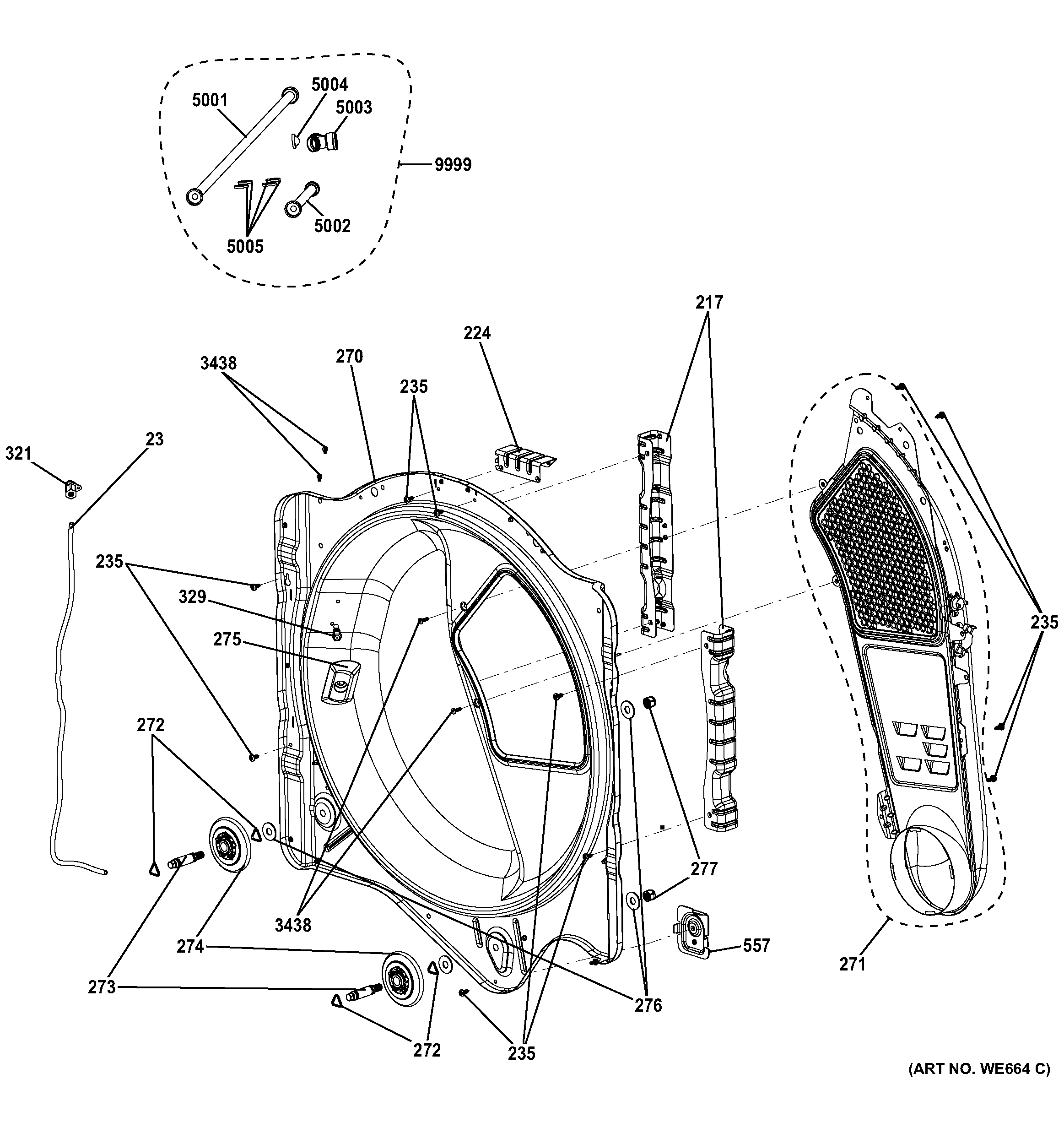

GTDS810GD0WS REAR ROLLER SUPPORT

Products

PositionProduct
23WE1M1035 GE Tube
217WE1M1061 GE Rear Roller Bracket
224BRACKET TOP
235WE2X263D GE Screw Package 12 C92
270WE20M512 GE Rear Support Roller
271WE14X21661 GE Transition Duct Assembly
272WE1M1065 GE Lock
273WE3M53 GE Roller Shaft
274ROLLER ASM WHEEL
275WE1M1037 GE Nozzle Support
277WE2M312 GE Washer Plain 3/8
321WE1M943 GE Nozzle and Elbow Assembly
329WE25M71 GE Service Nozzle Kit Assembly
557BRACKET BOTTOM
3438WE2M282 GE Screw 6-18 B B1Q1 3/4 S ZN
9999WE25X20060 GE Steam Kit
