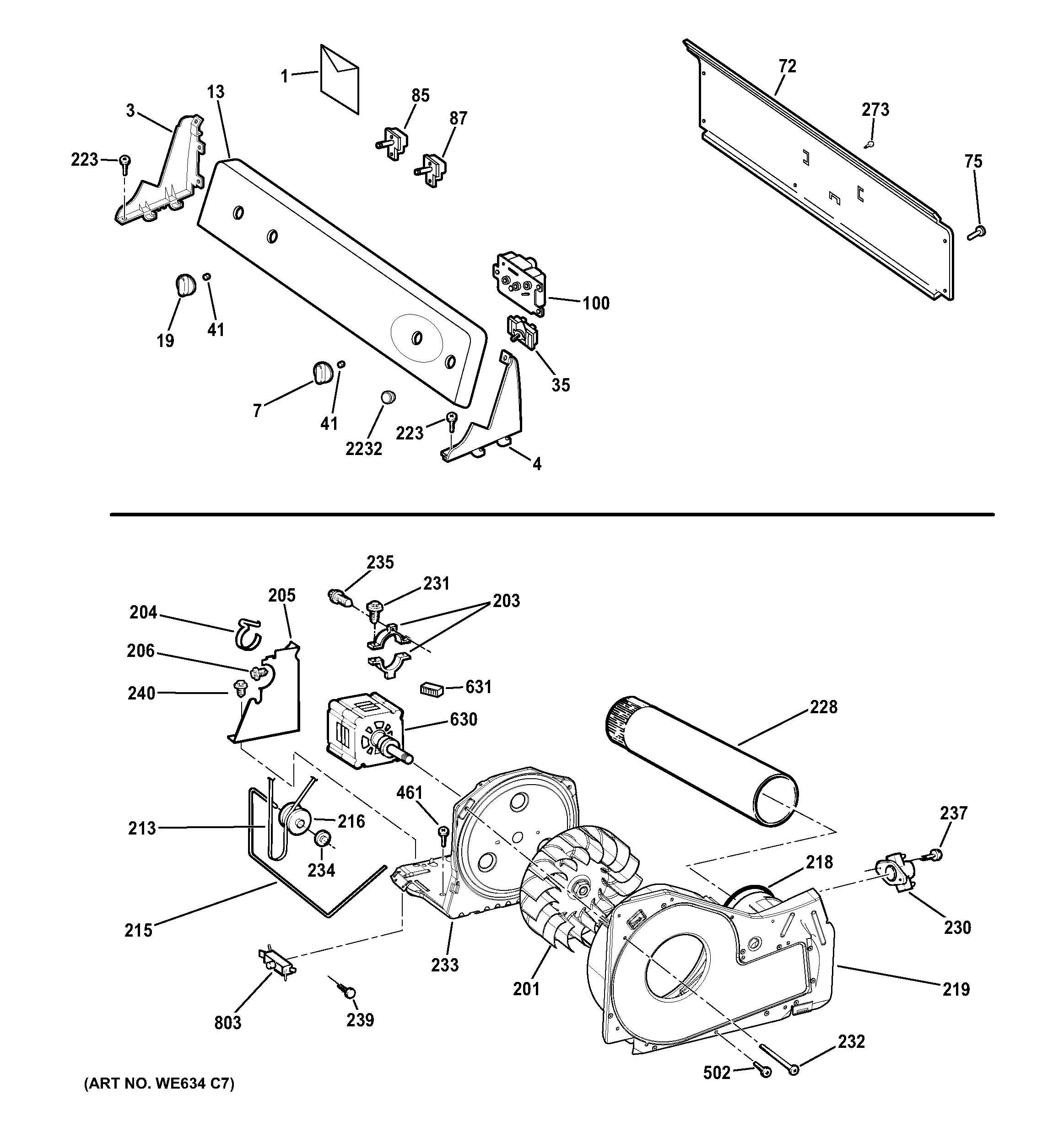

GTDX185GD0CC BACKSPLASH, BLOWER & DRIVE ASSEMBLY

GTDX185GD0CC BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Written by

in

GTDX185GD0CC BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Products

PositionProduct
1GEN 31-16225-2
1GEN 31-16257
1GEN 49-90407-1
3GEN WE19M1476
4GEN WE19M1475
7WE01X20375 GE Washer Timer Knob Assembly (Bisque)
13GEN WE19M1721
19WE01X20379 GE Washing Machine Bisque Control Knob Assembly
35PUSH TO START SWITCH
41GEN WE1X980
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
85WE4M399 GE Rocker Switch
87ROTARY SWITCH 4TEMP
100WE04X20415 GE Washer Timer
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
206WE2M200 GE Ground Screw
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
219GEN WE14M199
223WE2M189 GE Screw
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233GEN WE13M65
234GEN WE2M96?
235WE2M307 GE Screw 10-16 X 1/2 AB
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
240WE1M280 GE Screw
273WE2M228 GE Ground Screw No. 8
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232GEN WE1M692
