GTDX185GD2CC CABINET & TOP PANEL

GTDX185GD2CC CABINET & TOP PANEL

Written by

in

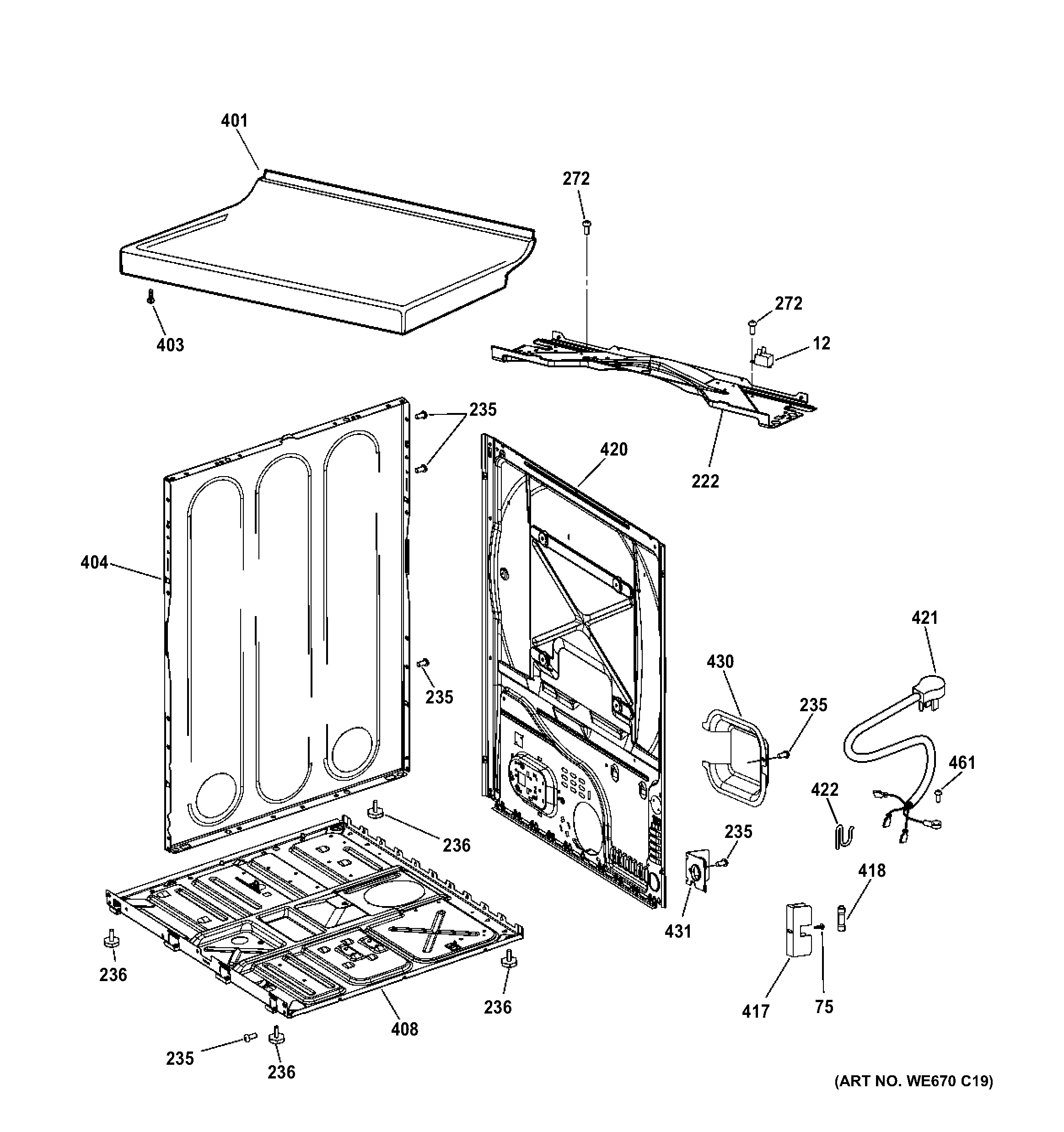

GTDX185GD2CC CABINET & TOP PANEL

Products

PositionProduct
12WE4M318 GE Buzzer Assembly
75WE2M173 GE Screw
222GEN WE20M494
235WE2M307 GE Screw 10-16 X 1/2 AB
236WE01X29357 GE Washer Levelling Leg
272GEN WE2M308
401TOP COVER BQ
403WE2M160 GE Screw
404GEN WE20X20093
408GEN WE20M492
417WE1M1003 GE Fuse Holder
418WE1M1002 GE Washer Fuse
420GEN WE20M538
421GEN WE26M341
422CLIP CORDSET
430WE1M1102 GE Washer Cover Terminal Block
431WE01X20424 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
