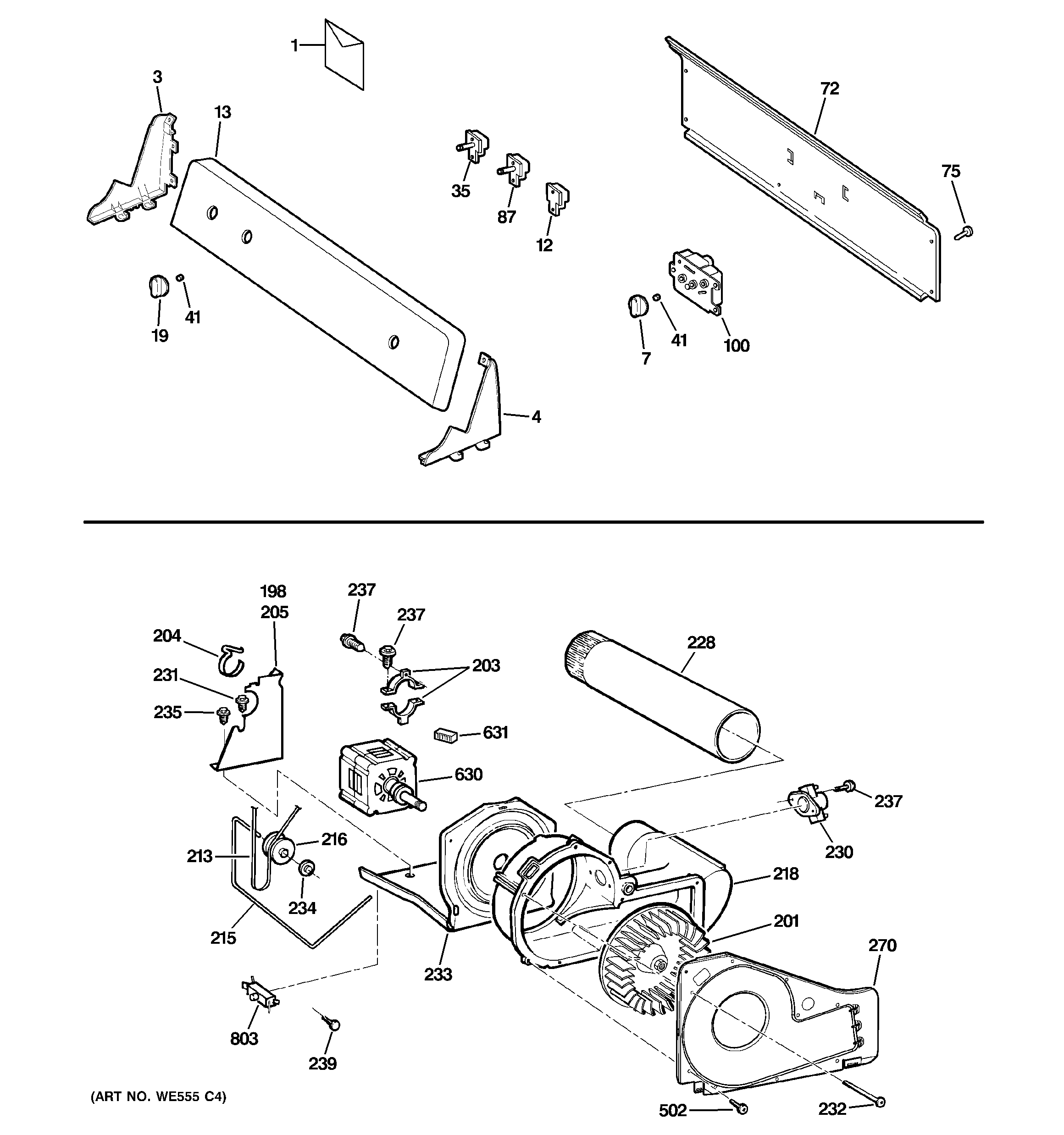

GTDX205GM0CC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

GTDX205GM0CC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

GTDX205GM0CC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16225
1GEN 49-90407
1GEN 31-16185
3GEN WE19M1476
4GEN WE19M1475
7WE01X20375 GE Washer Timer Knob Assembly (Bisque)
12WE4M318 GE Buzzer Assembly
13GEN WE19M1679
19WE01X20379 GE Washing Machine Bisque Control Knob Assembly
35WE4M519 GE Washer Start Switch Rotary
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
87GEN WE4M401
100WE04X20415 GE Washer Timer
198WE2M200 GE Ground Screw
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE2X263D GE Screw Package 12 C92
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
270GEN WE1M890
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
