GTE16DTHMRCC FREEZER SECTION

GTE16DTHMRCC FREEZER SECTION

Written by

in

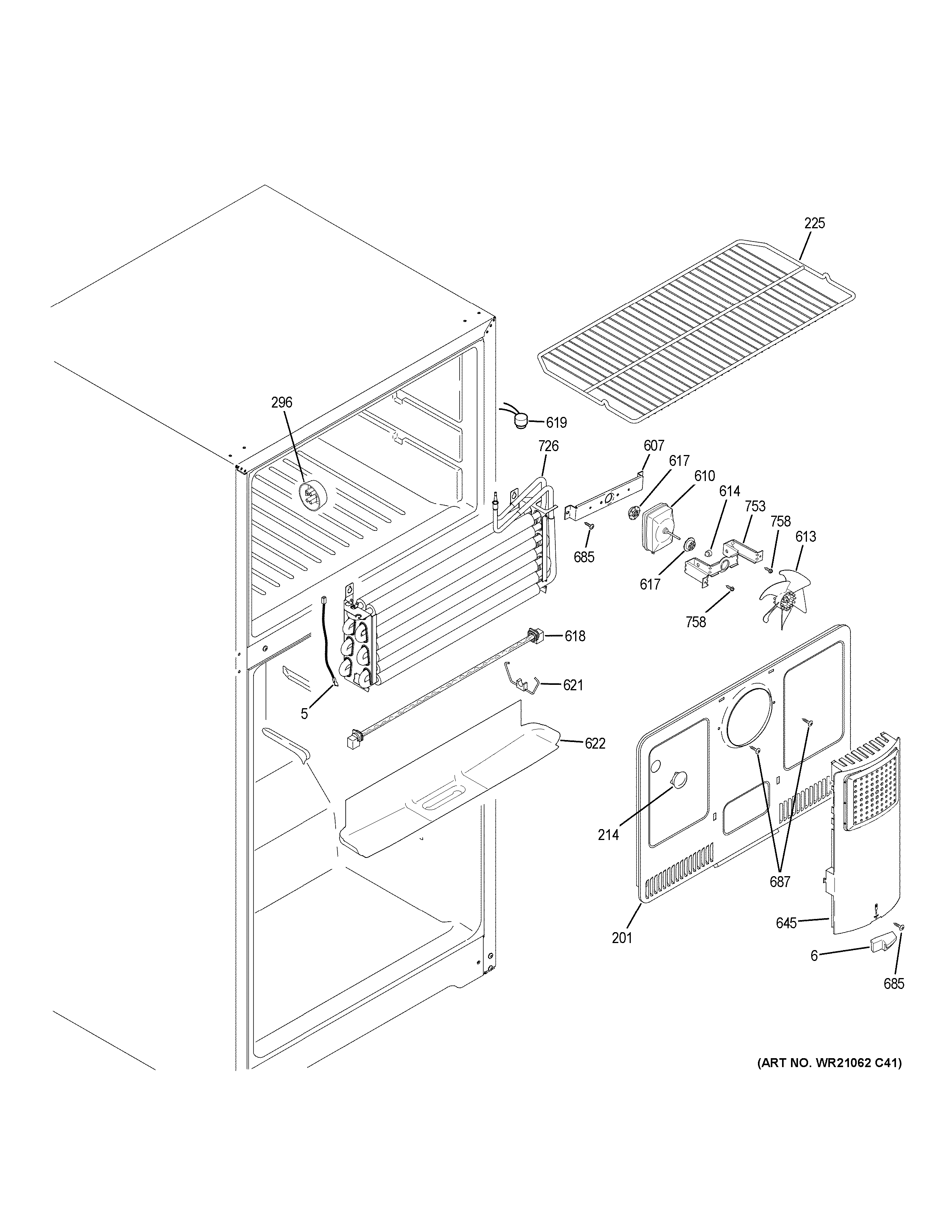

GTE16DTHMRCC FREEZER SECTION

Products

PositionProduct
5WR55X30070 GE Refrigerator Evaporator Harness
6WR02X23833 GE Air Diverter
201WR17X30151 GE Refrigerator Evaporator Cover
214WR02X11760 GE Refrigerator Plug Button
225WR71X21169 GE Refrigerator Freezer Wire Shelf
296WR02X11123 GE Refrigerator Cover IM REC
607WR21X30022 GE Refrigerator Mounting Bracket
610WR60X31522 GE Refrigerator Evaporator Fan Motor
613WR60X10204 GE Refrigerator Evaporator Fan Blade
614BUMPER
617WR02X12008 GE Refrigerator Evaporator Fan Grommet
618DEF HEATER ASSM
619THERMOSTAT DEF
621WR02X13678 GE Refrigerator Holder Element Assembly
622WR17X30031 GE Refrigerator Drain Trough
645AIR TOWER
685WR02X29370 GE Refrigerator Screw 8-18 AB HXW 1/2 S
687WR01X10589 GE Refrigerator Screw 8-15 AB IHXW 1/2"
726WR87X28948 GE Refrigerator Evaporator
753WR21X30013 GE Refrigerator Mounting Bracket
758WR01X10860 GE Refrigerator Screw 8-32 TT HXW 3/8 S
