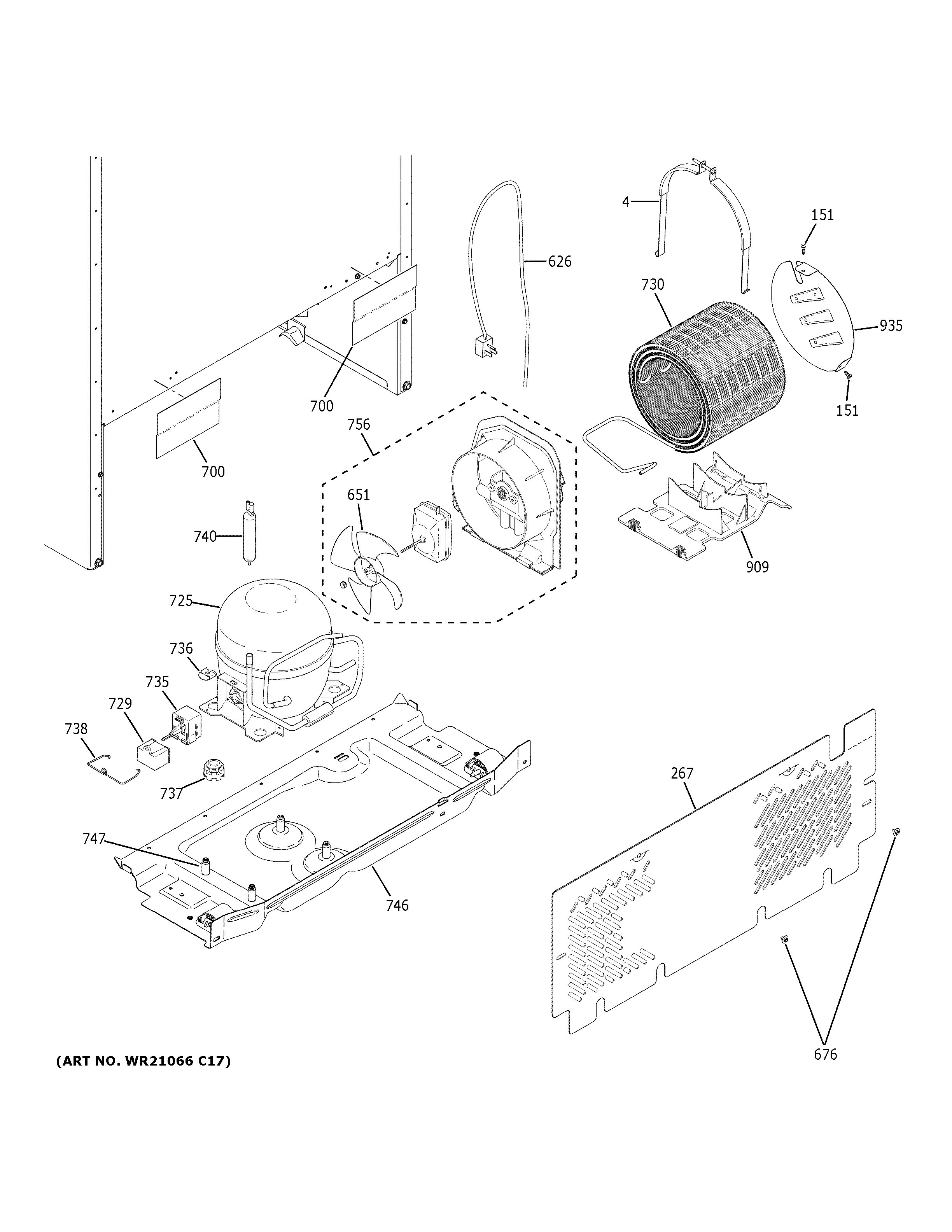

GTE16DTNGLWW MACHINE COMPARTMENT

GTE16DTNGLWW MACHINE COMPARTMENT

Written by

in

GTE16DTNGLWW MACHINE COMPARTMENT

Products

PositionProduct
4CONDENSER STRAP
151WD02X10151 GE Dishwasher Screw 10-16 AB 43WHEX 5/8
267WR82X31511 GE Refrigerator Rear Access Cover 28
626WR55X31301 GE Refrigerator Machine Compartment Harness
651WR60X10207 GE Refrigerator Fan Blade
676SCR 8-32 CA IHXW .615 S
700WATER DIVERTER
725WR87X31765 GE Refrigerator Compressor
729WR55X34865 GE Refrigerator 6uF Capacitor
730WR84X31398 GE Refrigerator Condenser
735WR55X34425 GE Refrigerator PTCR Overload Combo
736WR02X28781 GE Compressor Mounting Clip
737WR02X22869 GE Refrigerator Grommet
738RETAINER CLIP
740WR87X30875 GE Refrigerator R600 Dryer with Red Cap
746WR17X36193 GE Refrigerator Base Plate with Compressor Stud
747WR1X1779 GE Refrigerator Stud Mounting Compressor
756WR17X31476 GE Refrigerator Condenser Fan & Housing
909WR02X31487 GE Condenser Support
935BAFFLE
