GTE18ITHMRWW FRESH FOOD SECTION

GTE18ITHMRWW FRESH FOOD SECTION

Written by

in

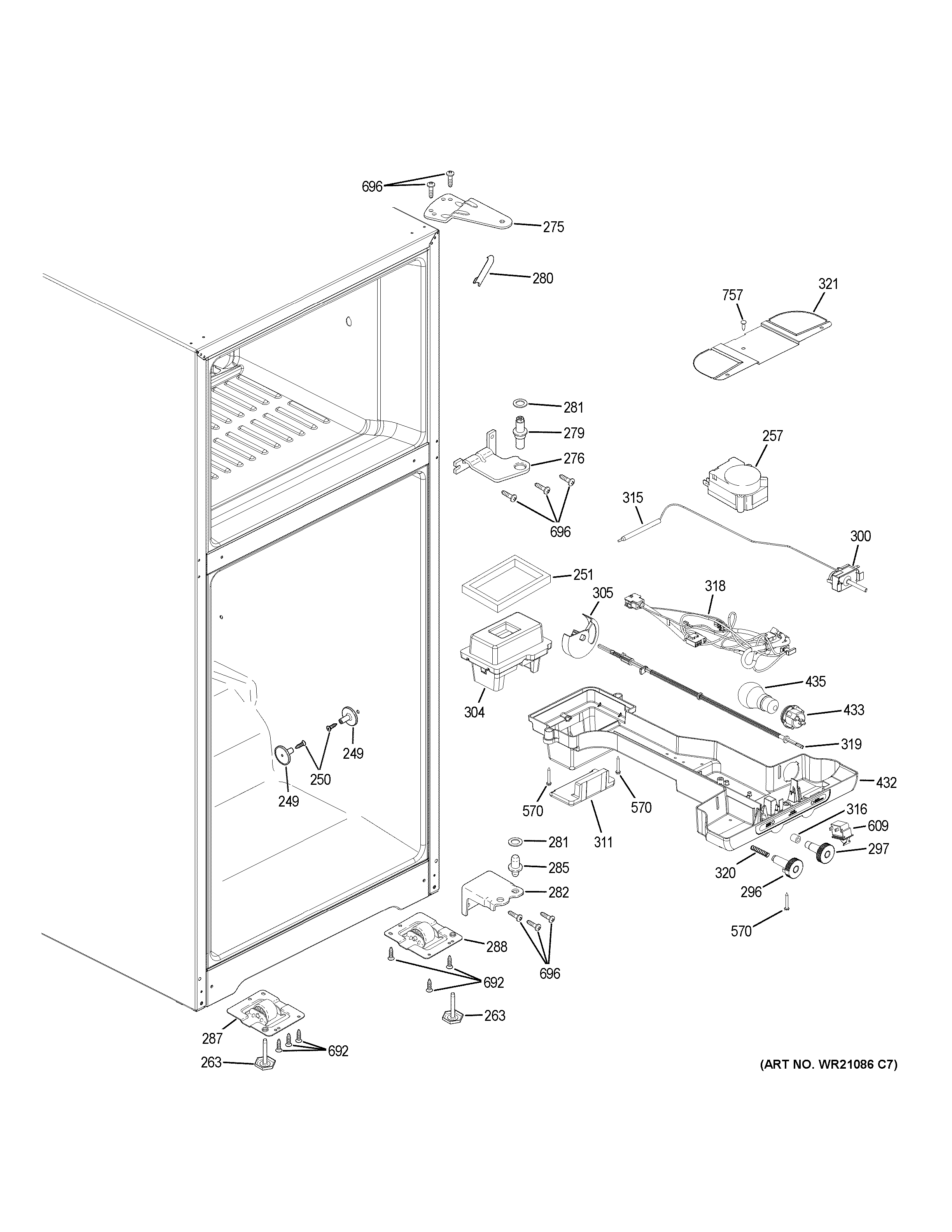

GTE18ITHMRWW FRESH FOOD SECTION

Products

PositionProduct
249WR02X11775 GE Refrigerator Support Vegetable Pan
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
251WR14X10292 GE Refrigerator Gasket Nozzle Control
257WR9X502 GE Refrigerator Defrost Timer
263WR2X7877 GE Refrigerator Slider Adjuster
275WR13X27091 GE Refrigerator Hinge Top and Pin Assembly
276WR13X21174 GE Refrigerator Center Hinge
279WR02X21173 GE Refrigerator Center Hinge Pin
280WR02X10703 GE Refrigerator Corner Cap OC White
281WASHER HINGE
282WR13X21175 GE Refrigerator Bottom Hinge
285PIN HINGE BOTTOM
287WR02X26157 GE Refrigerator Left Hand Mobility Assembly
288RH MOBILITY ASM FRONT
296WR02X11123 GE Refrigerator Cover IM REC
296GEN WR02X11861
297WR02X11860 GE Refrigerator Thumb Control Knob
300WR09X26874 GE Refrigerator Temperature Control
304WR02X13779 GE Refrigerator Nozzle Control Foam
305WR02X11583 GE Refrigerator Wheel Damper
311WR02X10709 GE Refrigerator Block Foam Control
315GEN WR02X11006
316WR02X11632 GE Refrigerator Spacer Shaft Temp Control
318WR55X29387 GE Control Module Harness
319WR02X10727 GE Refrigerator Damper Shaft
320SPRING KNOB
321WR02X11858 GE Refrigerator Reflector Shield
432WR02X30067 GE Control Housing
433WR02X30348 GE Refrigerator Lamp Socket
435RANGE ONLY 40W 120V APPL BULB
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
609WR23X37285 GE Light Switch
692WR01X23006 GE Refrigerator Screw 8-32 CA HXW 1/2 NS
696WR01X26527 GE Refrigerator Screw 12-24 TT PNPSD .785
757GEN WR01X2035
