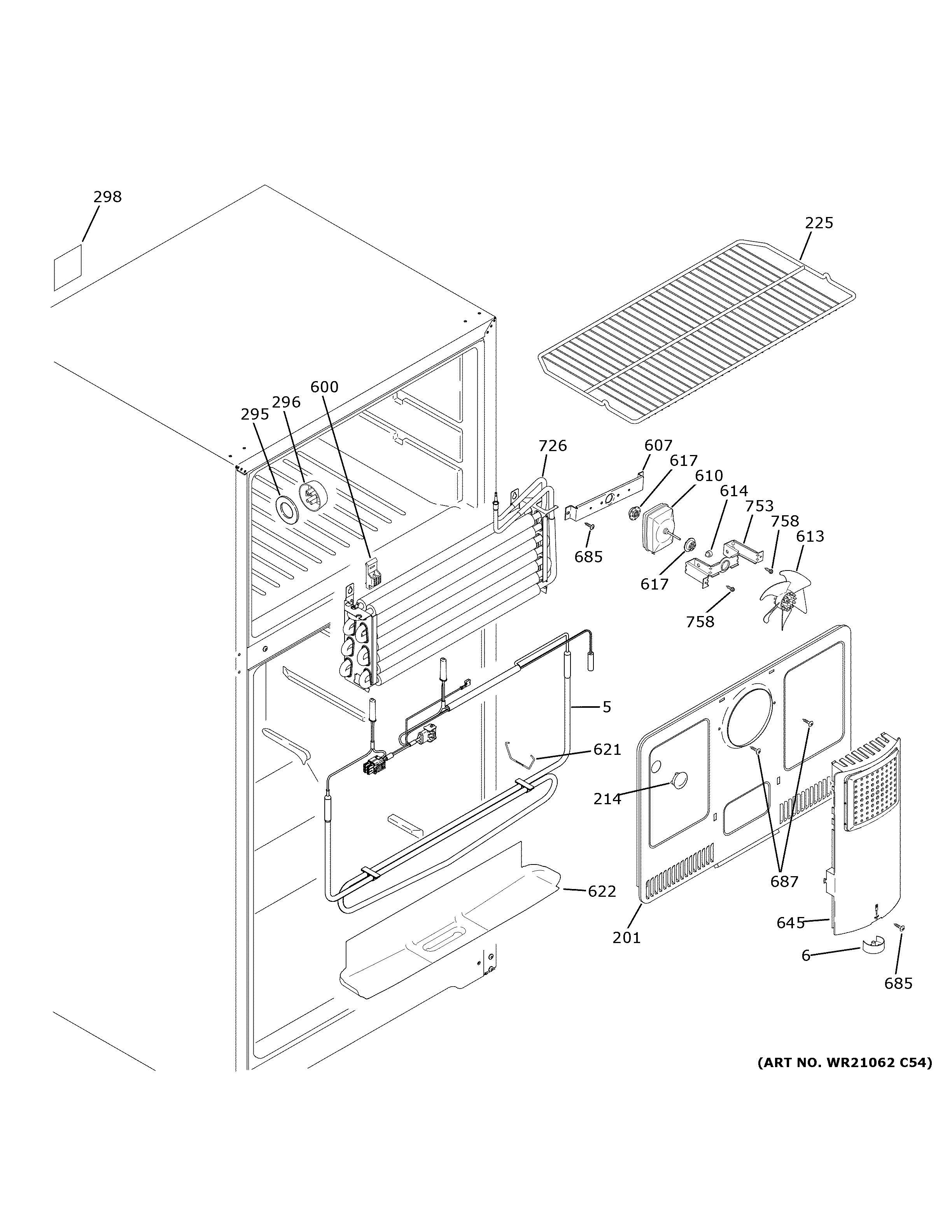

GTE19JSNDRSS FREEZER SECTION

GTE19JSNDRSS FREEZER SECTION

Written by

in

GTE19JSNDRSS FREEZER SECTION

Products

PositionProduct
5DEFROST HEATER AND HARNESS 19 22
6WR02X31092 GE Damper Adjustable
201WR17X31404 GE Refrigerator Evaporator Cover
214WR02X11760 GE Refrigerator Plug Button
225WR71X31117 GE Refrigerator Freezer Wire Shelf
295RECEPTACLE COVER GASKET
296WR82X31109 GE Ice Maker Receptacle Cover
298WR14X31738 GE Fill Tube Port Cover
600WR02X31289 GE Refrigerator Thermal Fuse Clip
607WR21X30022 GE Refrigerator Mounting Bracket
610WR60X31522 GE Refrigerator Evaporator Fan Motor
613WR60X10204 GE Refrigerator Evaporator Fan Blade
614BUMPER
617WR02X12008 GE Refrigerator Evaporator Fan Grommet
621WR02X31293 GE Refrigerator Evaporator Clip
622WR17X31136 GE Drain Trough
645WR17X31483 GE Refrigerator Air Tower
685WR02X29370 GE Refrigerator Screw 8-18 AB HXW 1/2 S
687WR01X10589 GE Refrigerator Screw 8-15 AB IHXW 1/2"
726EVAP AND TUBE ASM
753WR21X30013 GE Refrigerator Mounting Bracket
758WR01X10860 GE Refrigerator Screw 8-32 TT HXW 3/8 S
