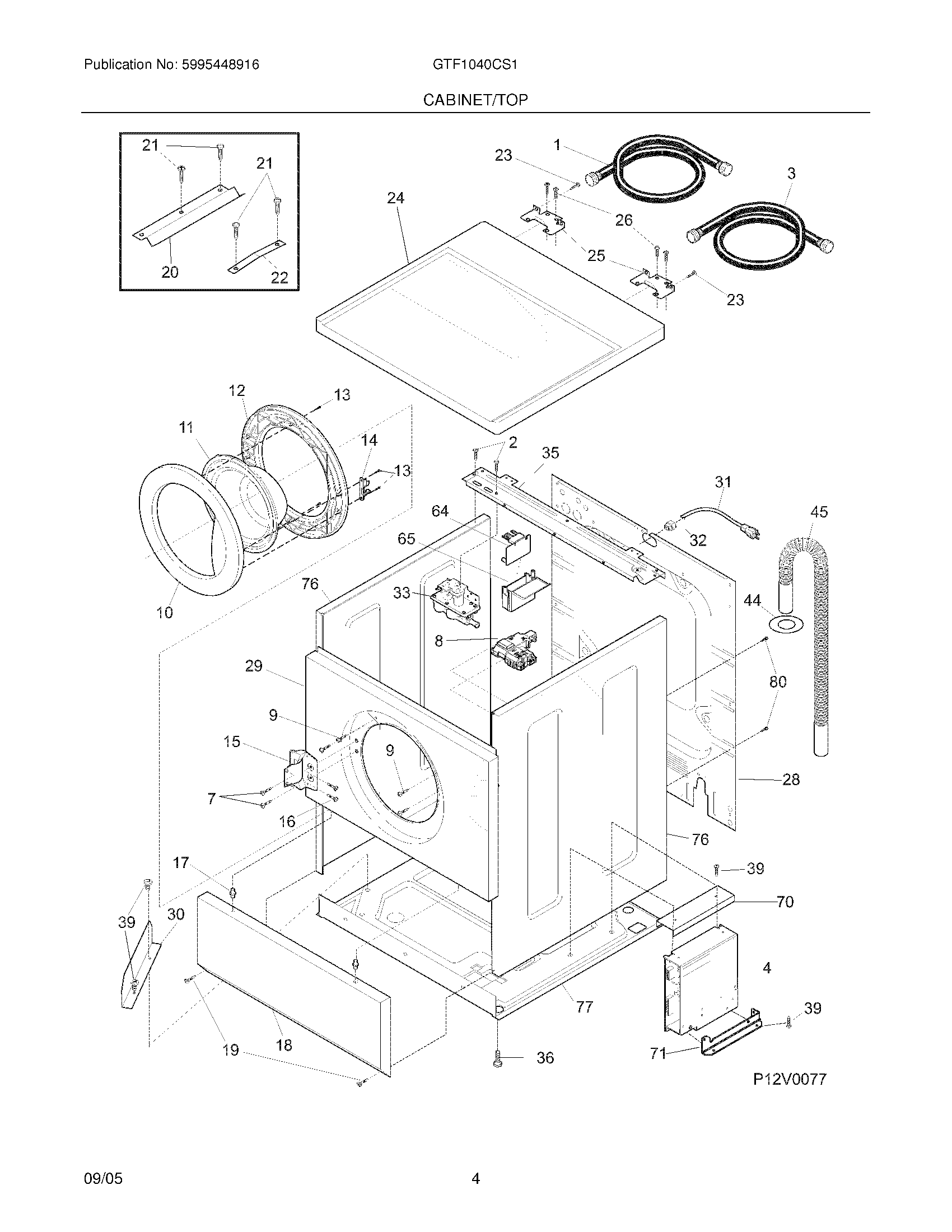

GTF1040CS1 05 – CABINET/TOP

Products

Position	Product
NI	WCI 5303937142
1	5303912532 Frigidaire Hose Inlet 60"
4	WCI 134149200
7	131205300 Frigidaire Screw
8	DOOR LOCK/SWITCH ASSY
9	131302800 Frigidaire Drum Vane Screw
10	131278700 Frigidaire Outer Door
11	Panel,door glass
12	134426500 Frigidaire Inner Door Panel Ki
13	131302901 Frigidaire Screw
14	131763302 Frigidaire Washer Door Strike
15	134264600 Frigidaire Hinge
16	131696300 Frigidaire Screw 10-16 X 0.312 Qu
17	WCI 131346400
18	Panel,Service ,white ,kick plate
19	218362501 Frigidaire Refrigerator Screw
20	Bracket,top panel mtg. ,front
21	131243700 Frigidaire Screw
22	Retainer,spring steel
23	131243800 Frigidaire Screw
24	WCI 134086842
25	Bracket,top panel mtg.
28	WCI 131978500
29	WCI 131752030
30	WCI 131859600
31	5304505407 Frigidaire Cord
32	5303209428 Frigidaire Serv.Cord Bushing
33	134190200 Frigidaire Washer Water Valve
35	WCI 131732902
36	131841600 Frigidaire Washer Levelling Leg
39	134178901 Frigidaire Screw
44	131707800 Frigidaire Drain Hose Ring
45	134592700 Frigidaire Washer Drain Hose
64	WCI 134226600
65	WCI 131894600
70	WCI 134048600
71	WCI 134048400
76	WCI 134390701
77	WCI 131458240
80	131168200 Frigidaire Dryer Screw
