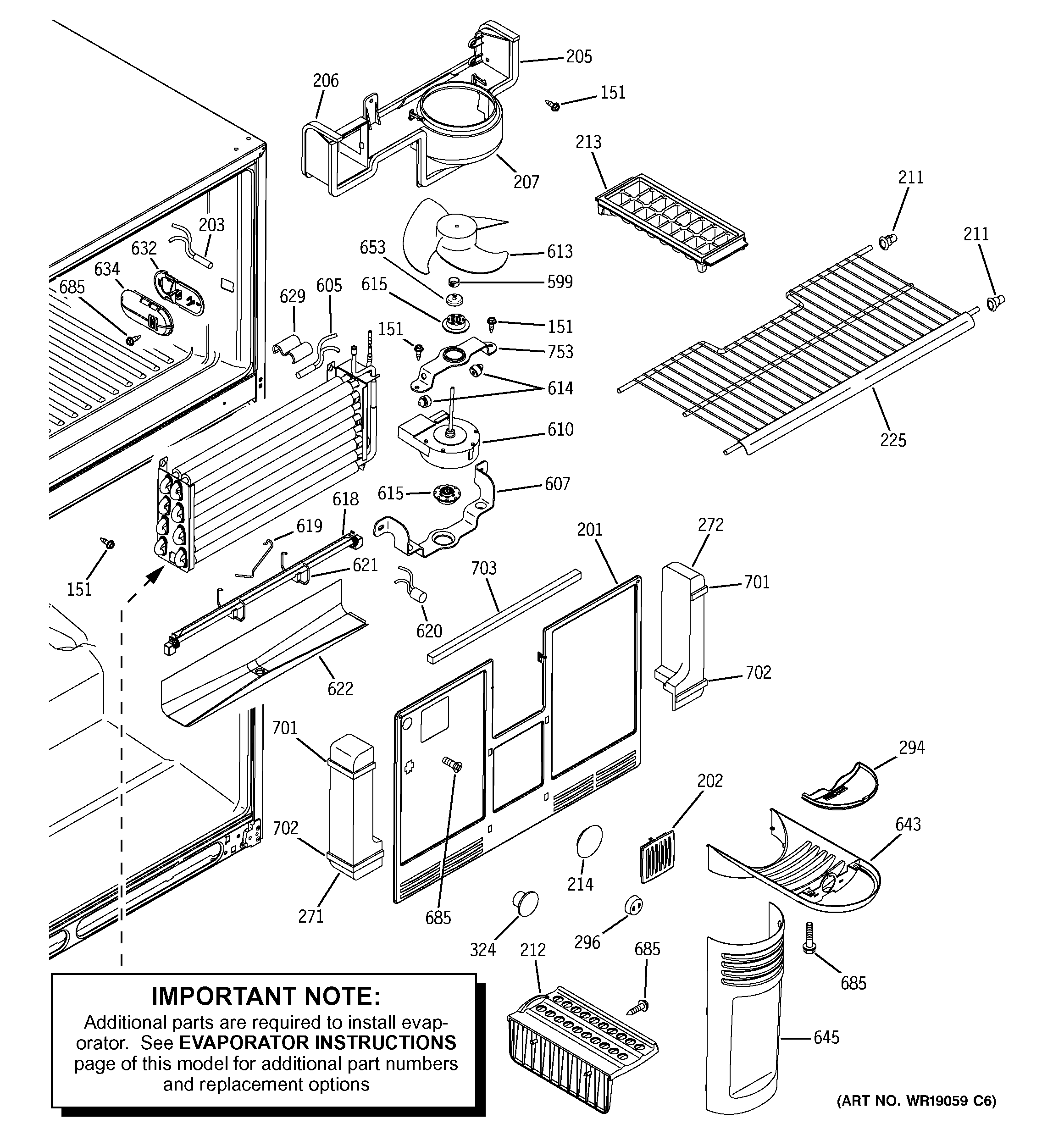

GTG25DBMARWW FREEZER SECTION

GTG25DBMARWW FREEZER SECTION

Written by

in

GTG25DBMARWW FREEZER SECTION

Products

PositionProduct
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
201GEN WR17X11073
202GEN WR72X10071
203WR55X10025 GE Refrigerator Temperature Sensor
205GEN WR14X10124
206GEN WR14X10123
207GEN WR17X10979
211GEN WR02X7973
212GEN WR30X10025
213WR30X10026 GE Refrigerator Ice Tray
214WR02X11760 GE Refrigerator Plug Button
225GEN WR71X10311
271GEN WR02X11185
272GEN WR02X11186
294GEN WR02X10966
296WR02X10693 GE Refrigerator Plug Cover and Gasket Assembly
324GEN WR02X7051
599WR02X12149 GE Refrigerator Ring
607GEN WR02X10876
610WR60X10185 GE Refrigerator Evaporator Fan Motor
613BLADE EVAP FAN ASM
614BUMPER
615WR02X11331 GE Refrigerator Grommet
618GEN WR02X10542
619WR51X10052 GE Refrigerator Heater Condition
620WR50X10068 GE Refrigerator Defrost Thermostat
621WR02X10518 GE Refrigerator Element Holder
622GEN WR17X11076
629WR02X10879 GE Refrigerator Evaporator Thermistor Clip
632GEN WR02X10863
634GEN WR02X10872
643GEN WR17X11171
645GEN WR17X11413
653WR02X10322 GE Refrigerator Dust Cap B02
685WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
701GEN WR14X10125
702GEN WR14X10129
703GEN WR14X10128
753WR02X10764 GE Refrigerator Evaporator Bracket
