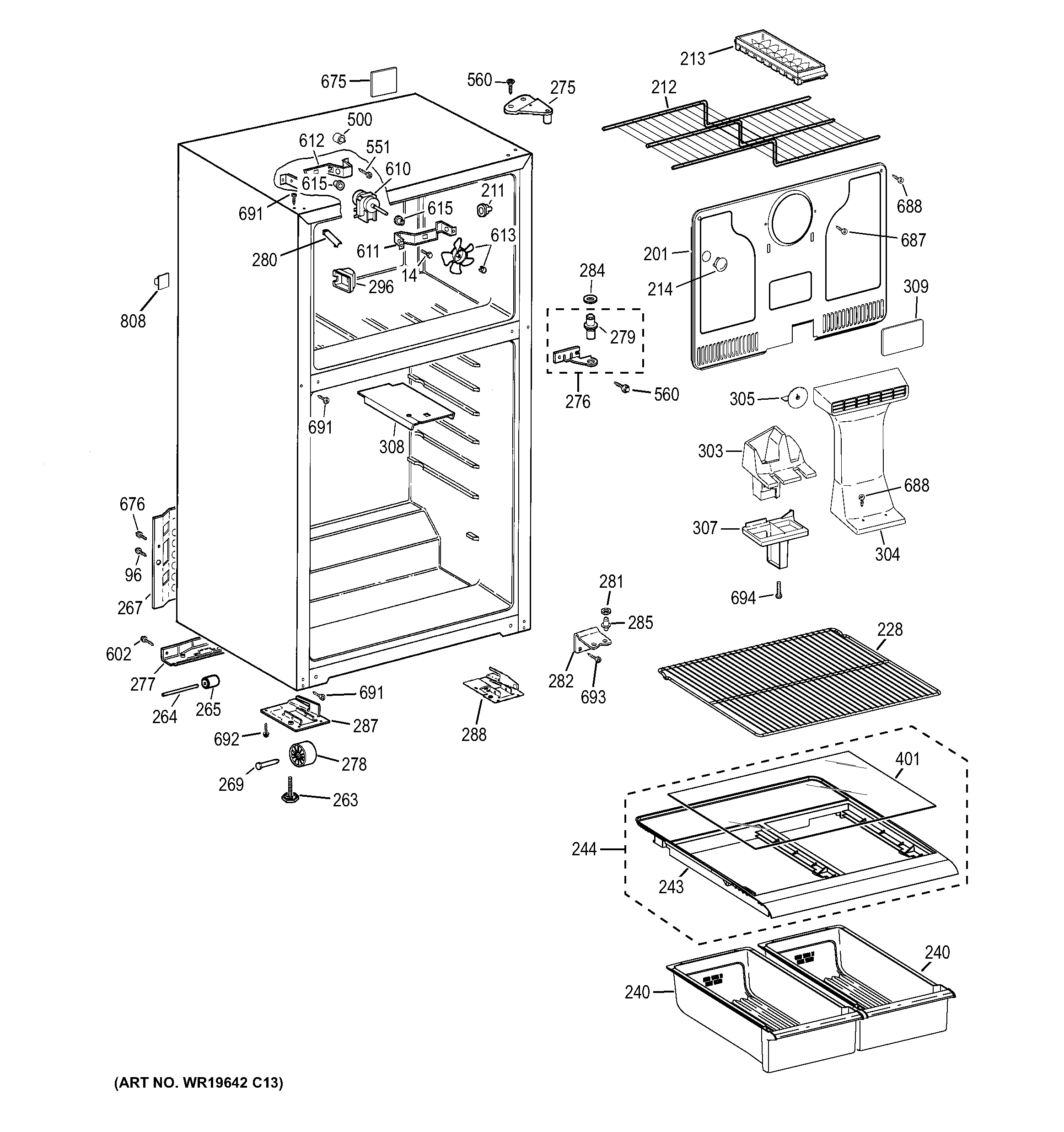

GTH16DBEDRCC CABINET

GTH16DBEDRCC CABINET

Written by

in

GTH16DBEDRCC CABINET

Products

PositionProduct
14GEN WR01X10594
201GEN WR17X11887
212WR71X2086 GE Refrigerator Freezer Shelf Assembly
213WR30X311 GE Refrigerator Ice Tray
214WR02X11760 GE Refrigerator Plug Button
228WR71X10378 GE Wire Rack Shelf
240WR32X10340 GE Refrigerator Lower Twin Vegetable Crisper Pan
243WR17X11662 GE Refrigerator Vegetable Pan Cover
244WR32X10854 GE Refrigerator Glass Shelf
263WR2X7877 GE Refrigerator Slider Adjuster
264GEN WR02X8214
265GEN WR02X8245
267GEN WR82X10112
269GEN WR02X12267
275GEN WR13X10992
276GEN WR13X10993
277GEN WR17X3188
278WHEEL MOBILITY FRT
279GEN WR02X8232
281WASHER HINGE
282GEN WR13X10886
284WR1X1794 GE Refrigerator Door Spacer
285PIN HINGE BOTTOM
287GEN WR02X8709
288GEN WR02X8708
296WR02X11123 GE Refrigerator Cover IM REC
303WR02X20092 GE Refrigerator Foam Duct
304WR17X11891 GE Refrigerator Air Duct E04
305GEN WR02X12942
307WR02X11793 GE Refrigerator Air Diffuser
308GEN WR02X8428
309GEN WR02X12020
500BUMPER
551WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
560GEN WR01X1249
610WR60X31522 GE Refrigerator Evaporator Fan Motor
611WR21X30013 GE Refrigerator Mounting Bracket
612WR21X30022 GE Refrigerator Mounting Bracket
613WR60X10204 GE Refrigerator Evaporator Fan Blade
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
676WD2X5166 GE Dishwasher Screw
687WR01X10589 GE Refrigerator Screw 8-15 AB IHXW 1/2"
688WR01X10448 GE Refrigerator Screw 8-19 HI/LO TRP 1" S
691SCREW 12-24
693WR01X10591 GE Refrigerator Screw 12-24 TT OVT20 .900
694GEN WR01X1792
808WR2X4039 GE Refrigerator Clamp
